Light Control Switch Circuit

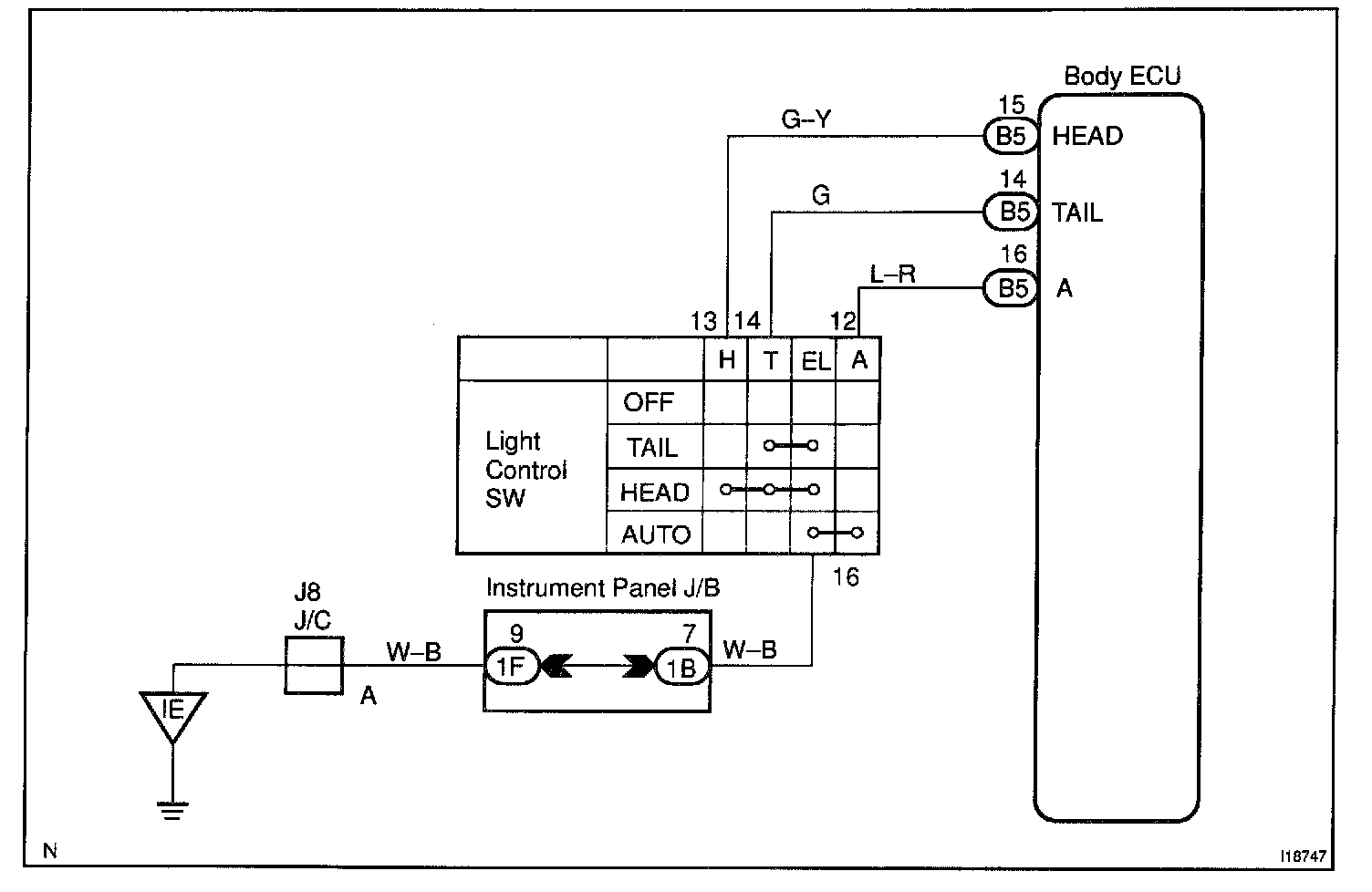

Wiring Diagram:

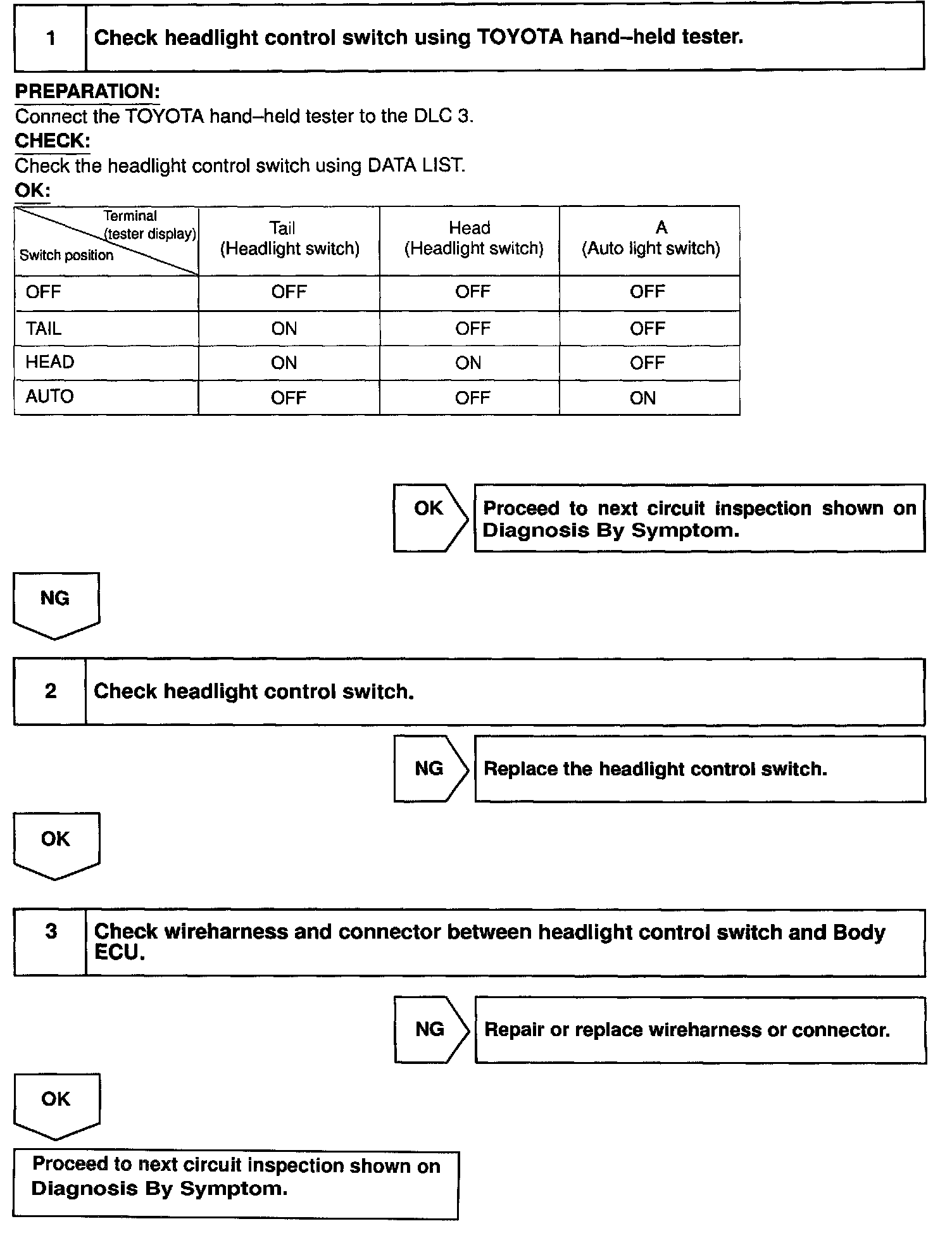

Steps 1 - 3:
INSPECTION PROCEDURE
HINT: In case of using the TOYOTA hand-held tester, start the inspection from step 1 and in case of not using the TOYOTA hand-held tester, start from step 2.
INSPECTION PROCEDURE
HINT: In case of using the TOYOTA hand-held tester, start the inspection from step 1 and in case of not using the TOYOTA hand-held tester, start from step 2.
