Compressor Circuit
Compressor CircuitCIRCUIT DESCRIPTION
The integration control and panel outputs the magnetic clutch ON signal from terminal AC1 to the ECM. When the ECM receives this signal, it sends a signal from terminal MGC and switches the A/C magnetic clutch relay ON, thus turning on the A/C magnetic clutch.
Wiring Diagram:

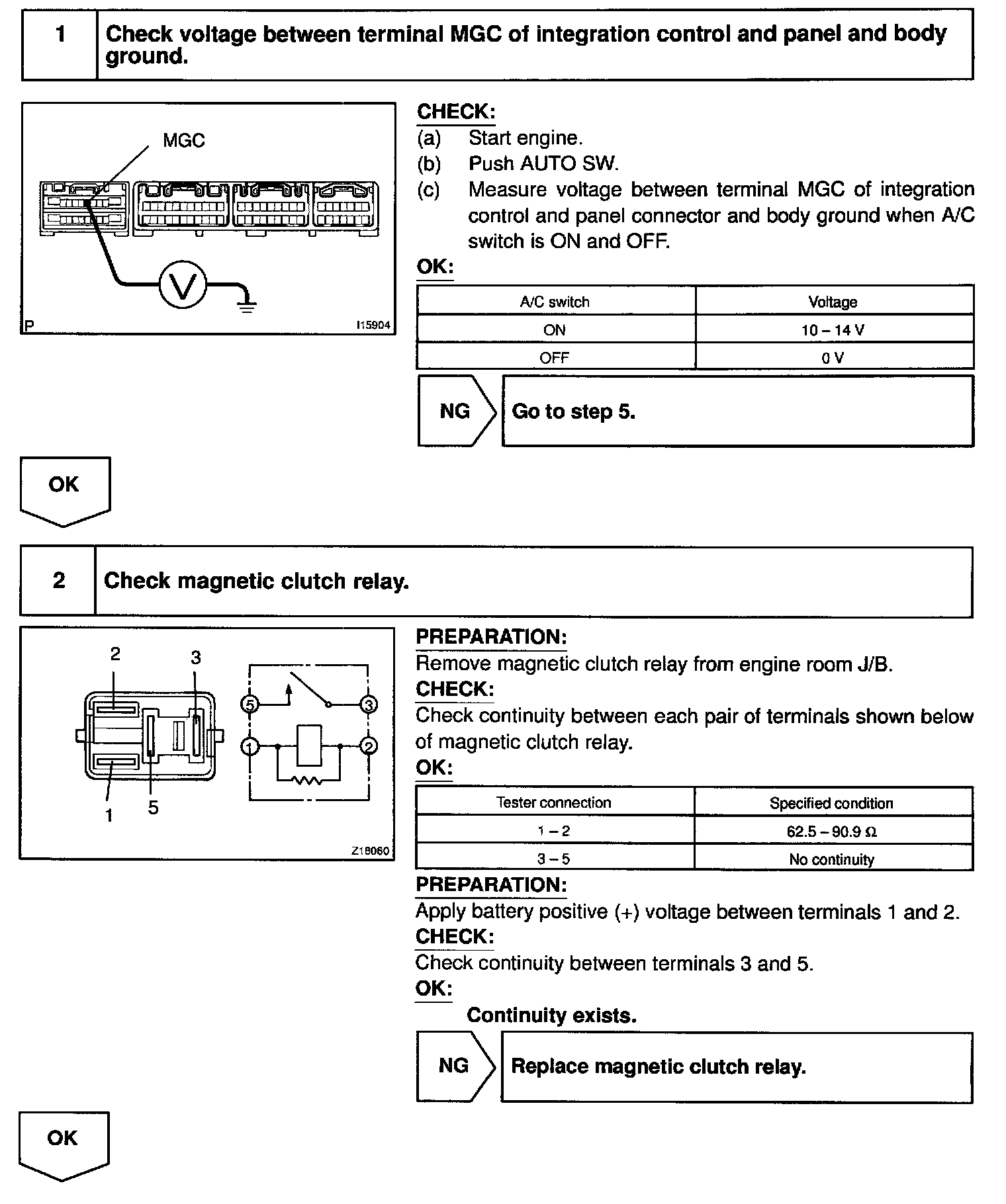

Steps 1 - 2:

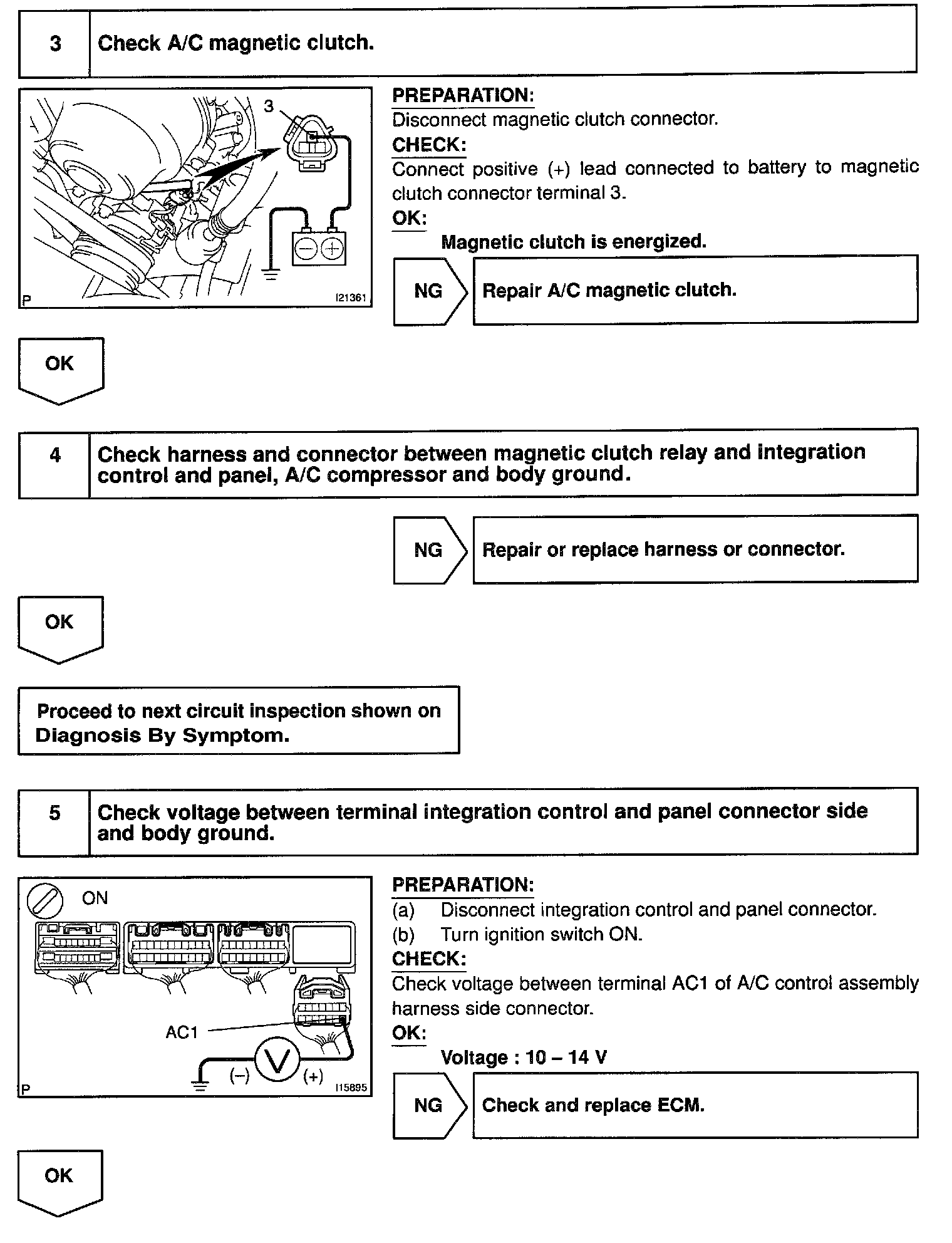

Steps 3 - 5:

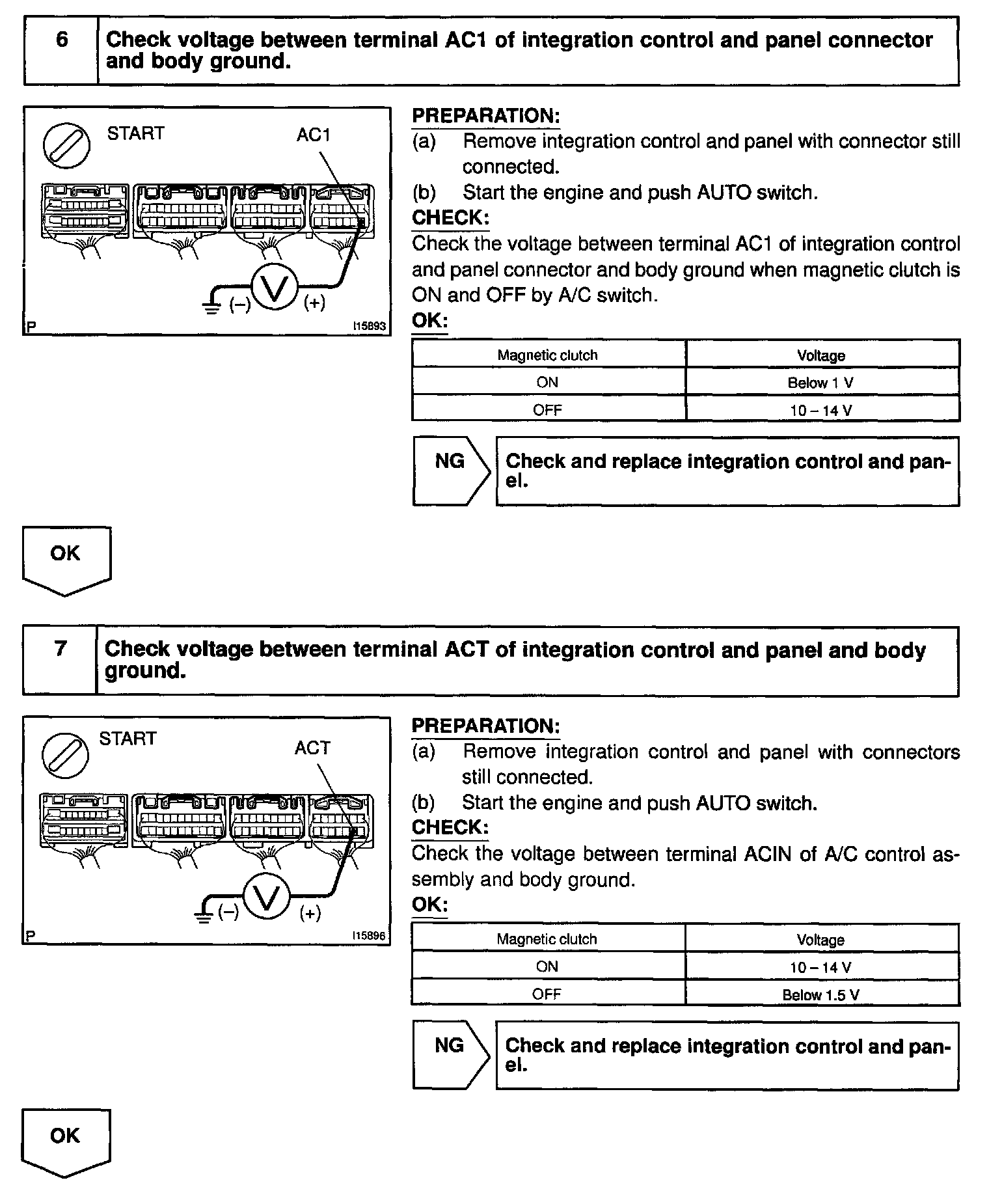

Steps 6 - 7:

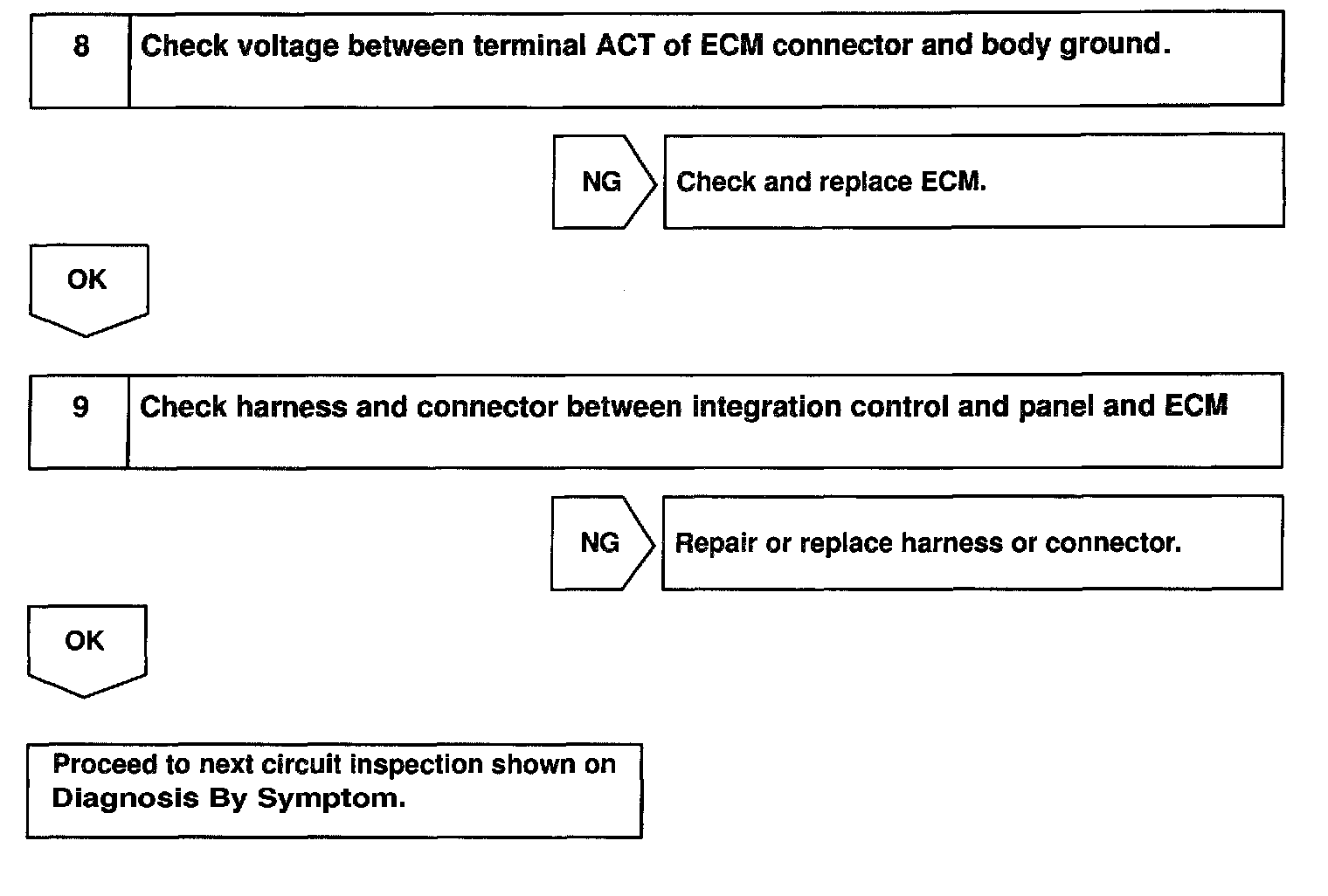

Steps 8 - 9:
INSPECTION PROCEDURE
