Back Door Power Window Limit Switch Circuit

CIRCUIT DESCRIPTION
This switch functions to turn "OFF" before the top dead center, and ECU reads this "OFF signal resulting in closing the window fully.

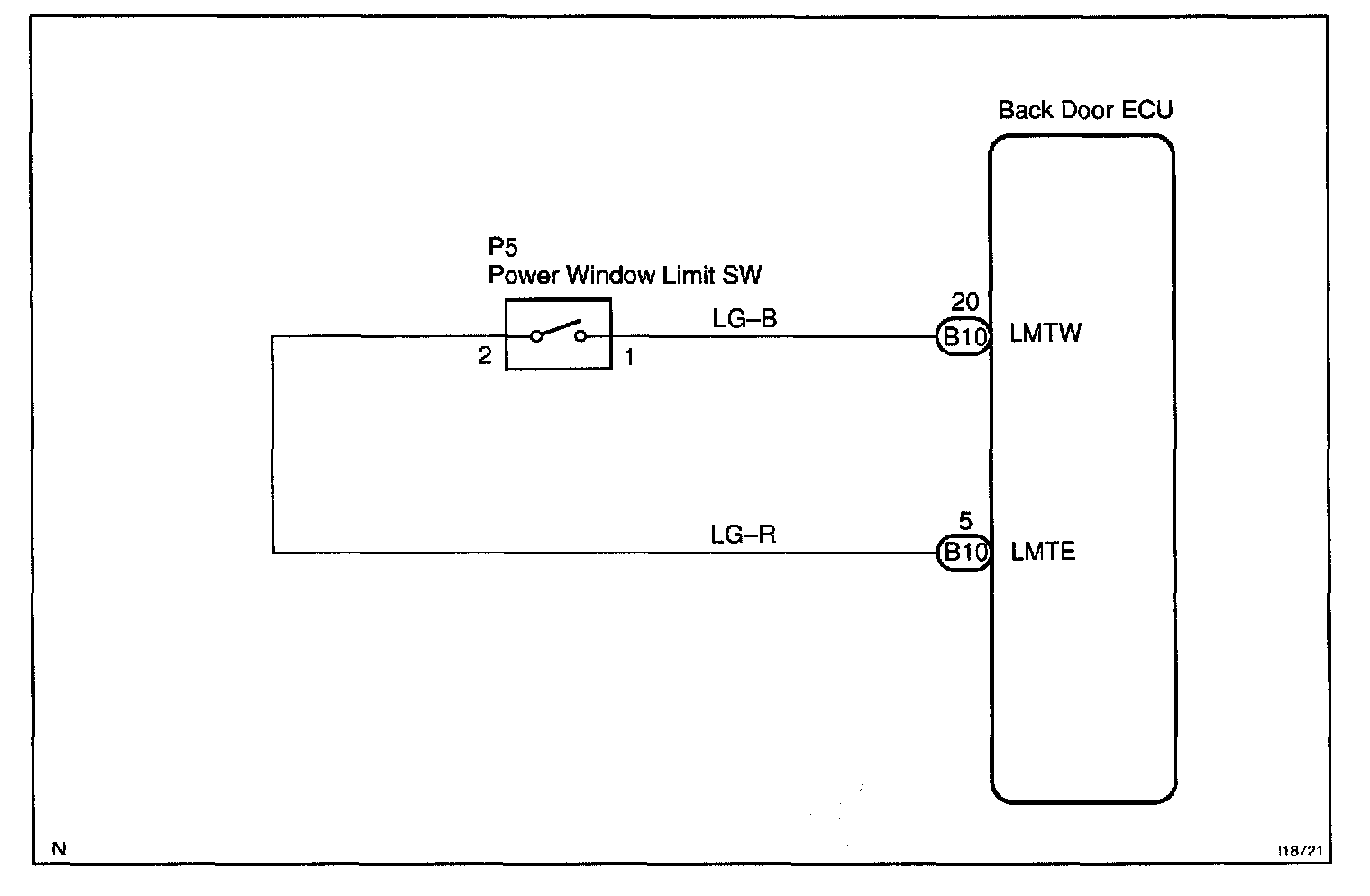

Wiring Diagram:

Steps 1 - 3:

INSPECTION PROCEDURE

HINT: In case of using the TOYOTA hand-held tester, start the inspection from step 1 and in case of not using the TOYOTA hand-held tester, start from step 2.
