Passenger Door Control System
>>
Power Source Circuit
Power Source Circuit
CIRCUIT DESCRIPTION
This circuit provides power to operate the passenger door ECU.

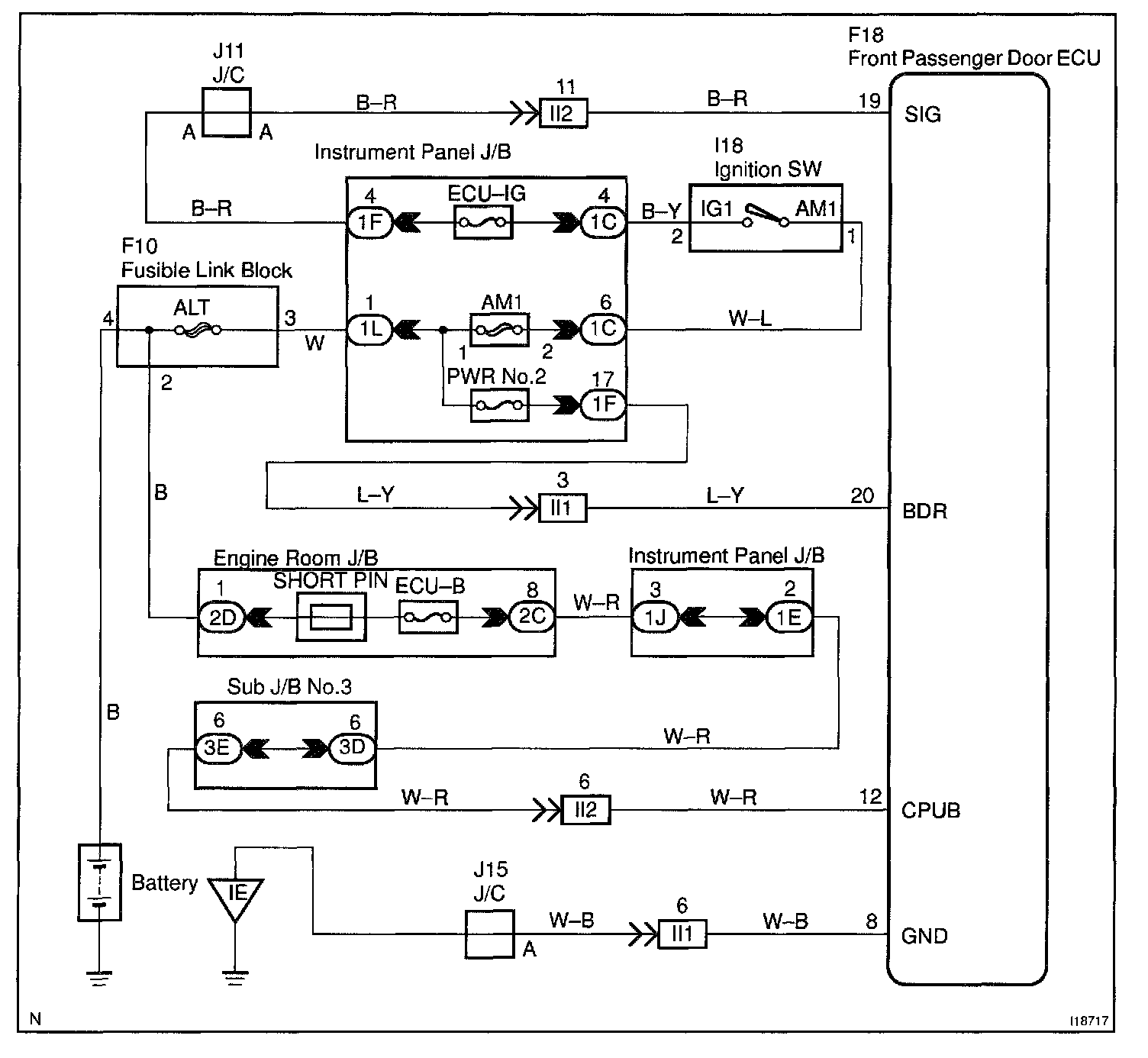

Wiring Diagram:
Steps 1 - 2:
Step 3:

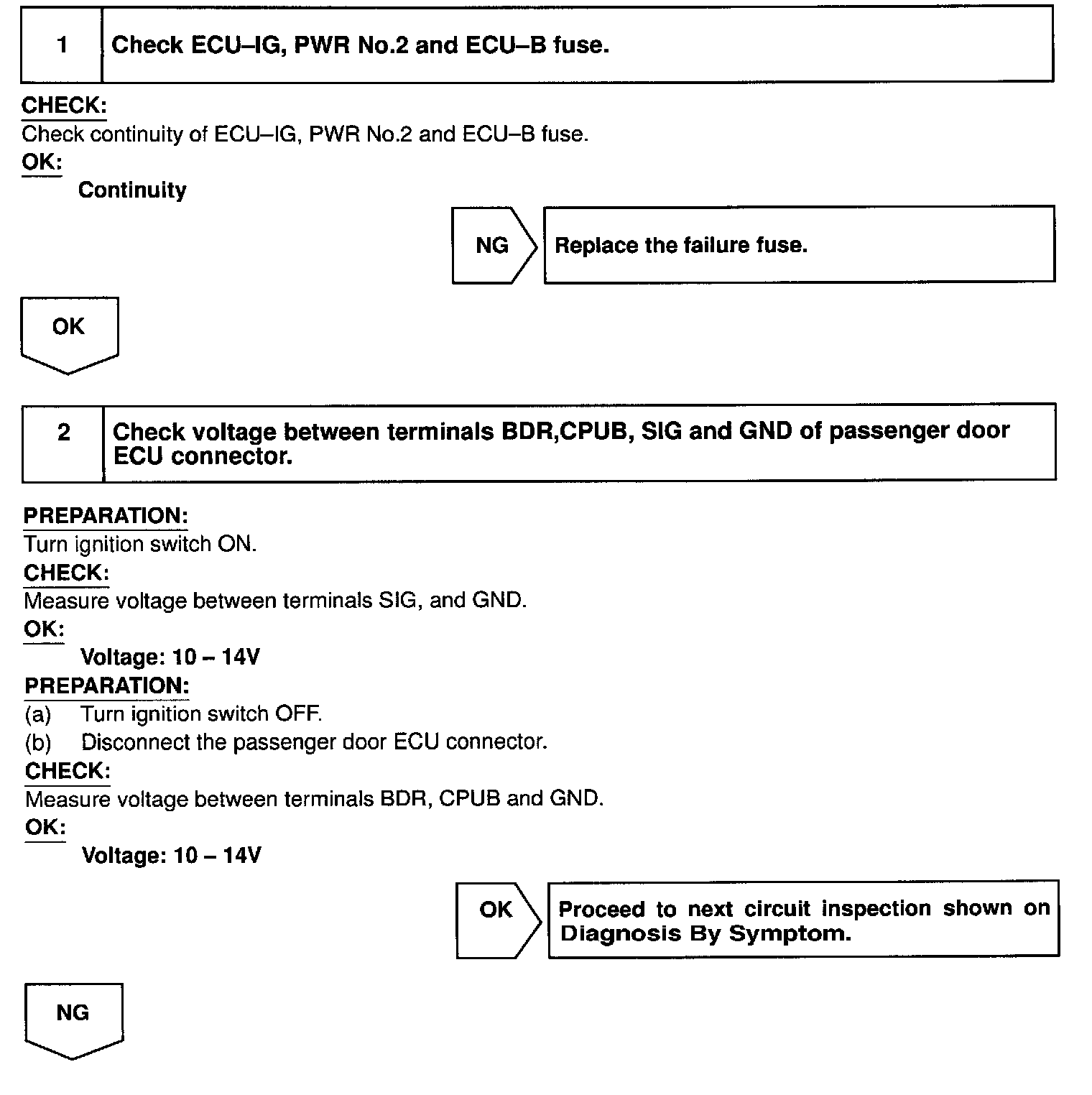

INSPECTION PROCEDURE
