Cruise Control System
CIRCUIT DESCRIPTIONDuty Ratio:

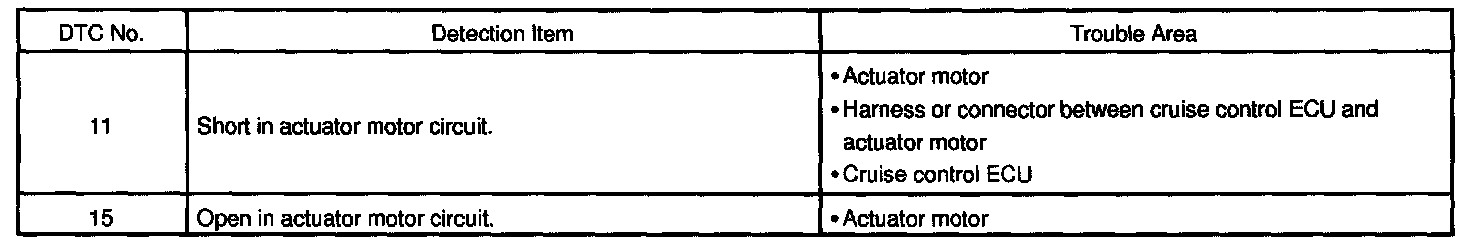

Detection Item:
The actuator motor is operated by signals from the ECU. Acceleration and deceleration signals are transmitted by changes in the Duty Ratio (See note below).
Wiring Diagram:

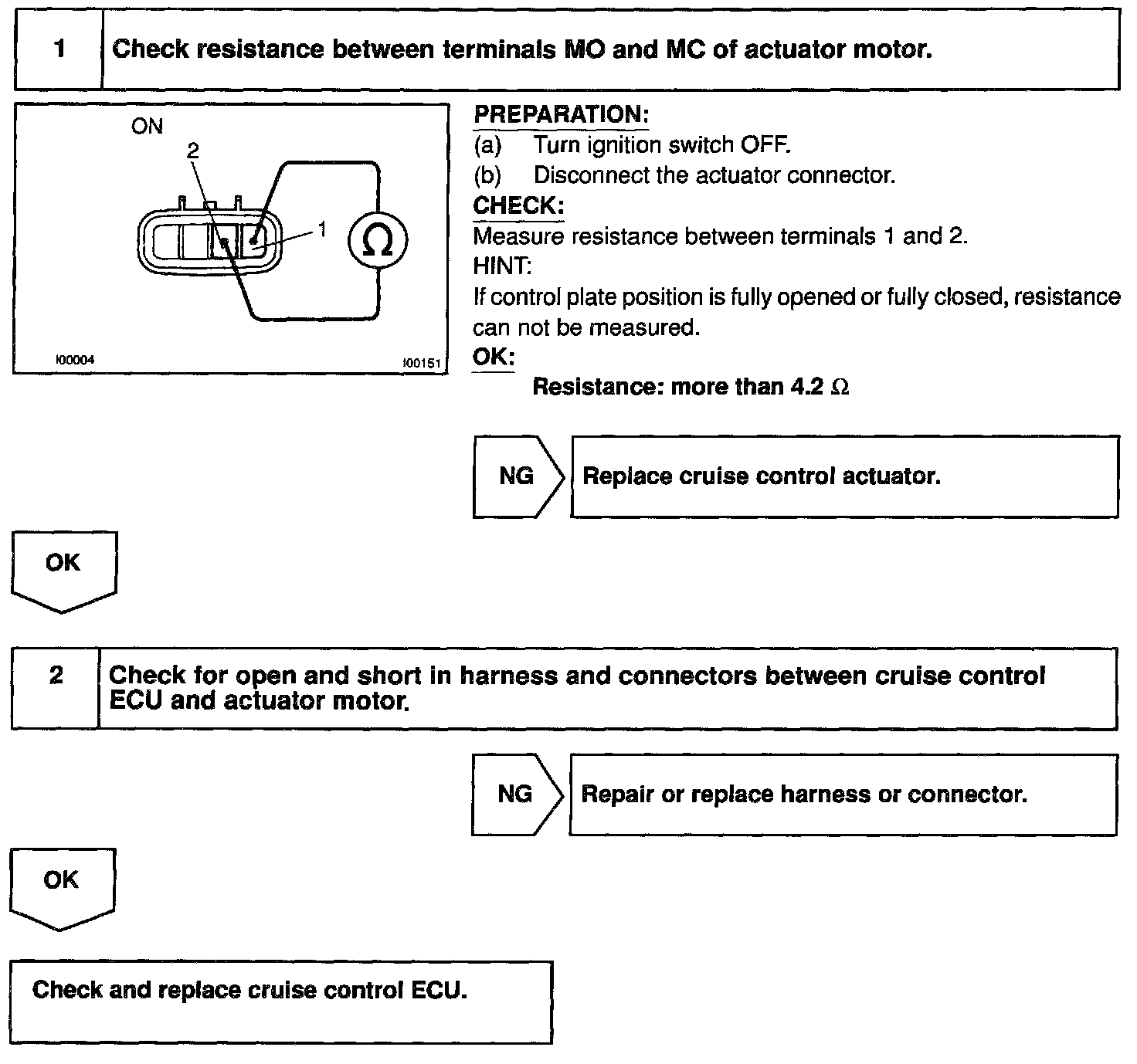

Steps 1 - 2:
INSPECTION PROCEDURE
