B0135

DTC Detecting Condition:

CIRCUIT DESCRIPTION
The P/T squib (LH) circuit consists of the airbag sensor assembly and seat belt pretensioner (LH).

It causes the SRS to deploy when the SRS deployment conditions are satisfied.

For details of the function of each component, see DESCRIPTION AND OPERATION.

DTC B0135/73 is recorded when a short is detected in the P/T squib (LH) circuit.

Wiring Diagram:

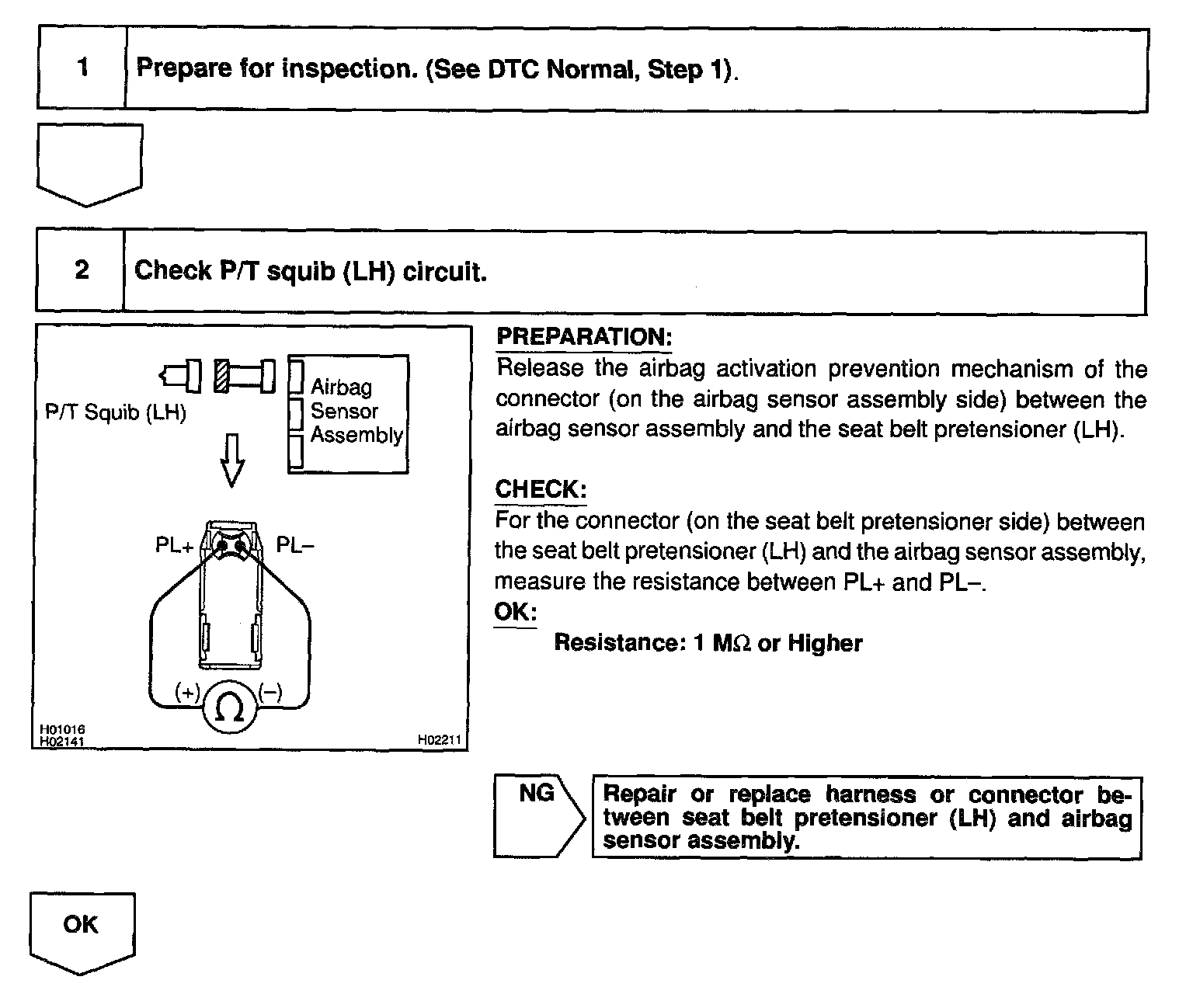

Steps 1 - 2:

Step 3:

Step 4:

INSPECTION PROCEDURE
