Symptom Related Diagnostic Procedures

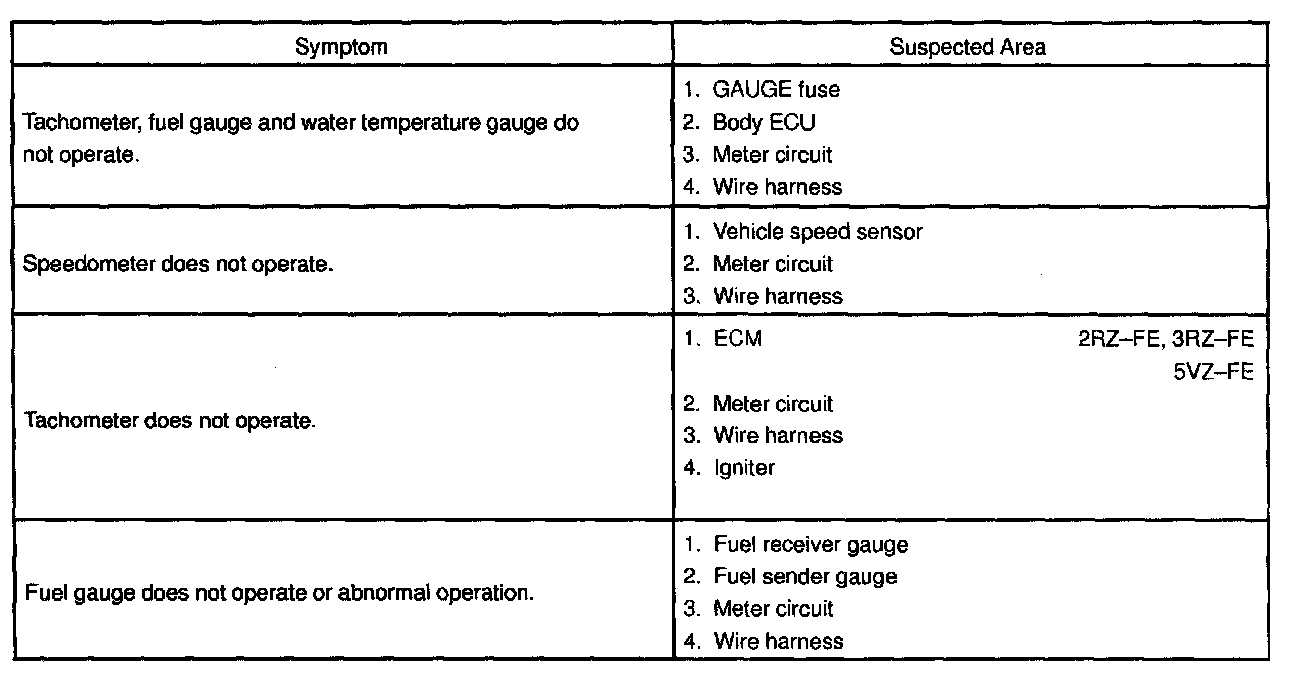

Problem Symptoms Table - Meter,Gauges And Illumination - Combination Meter (Part 1):

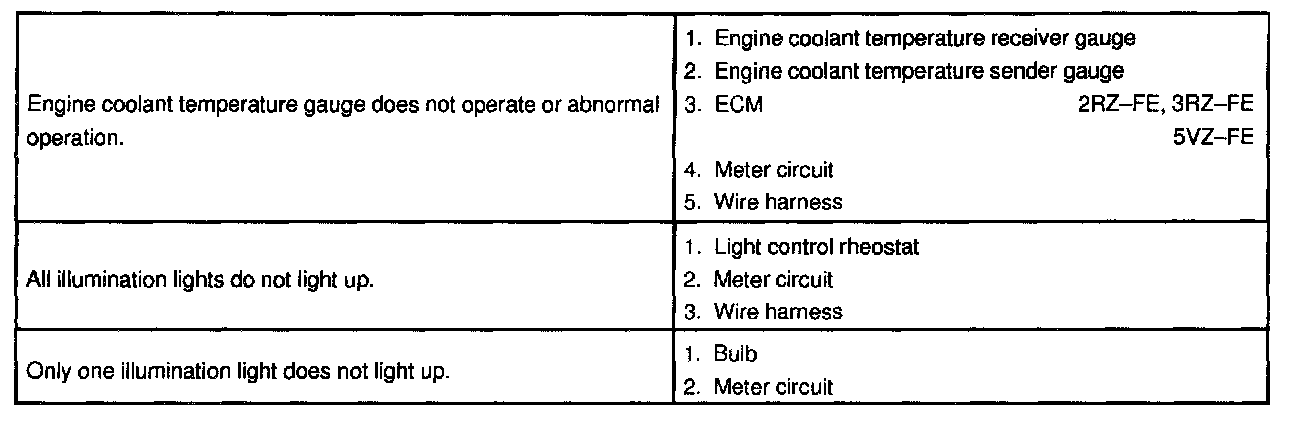

Problem Symptoms Table - Meter,Gauges And Illumination - Combination Meter (Part 2):

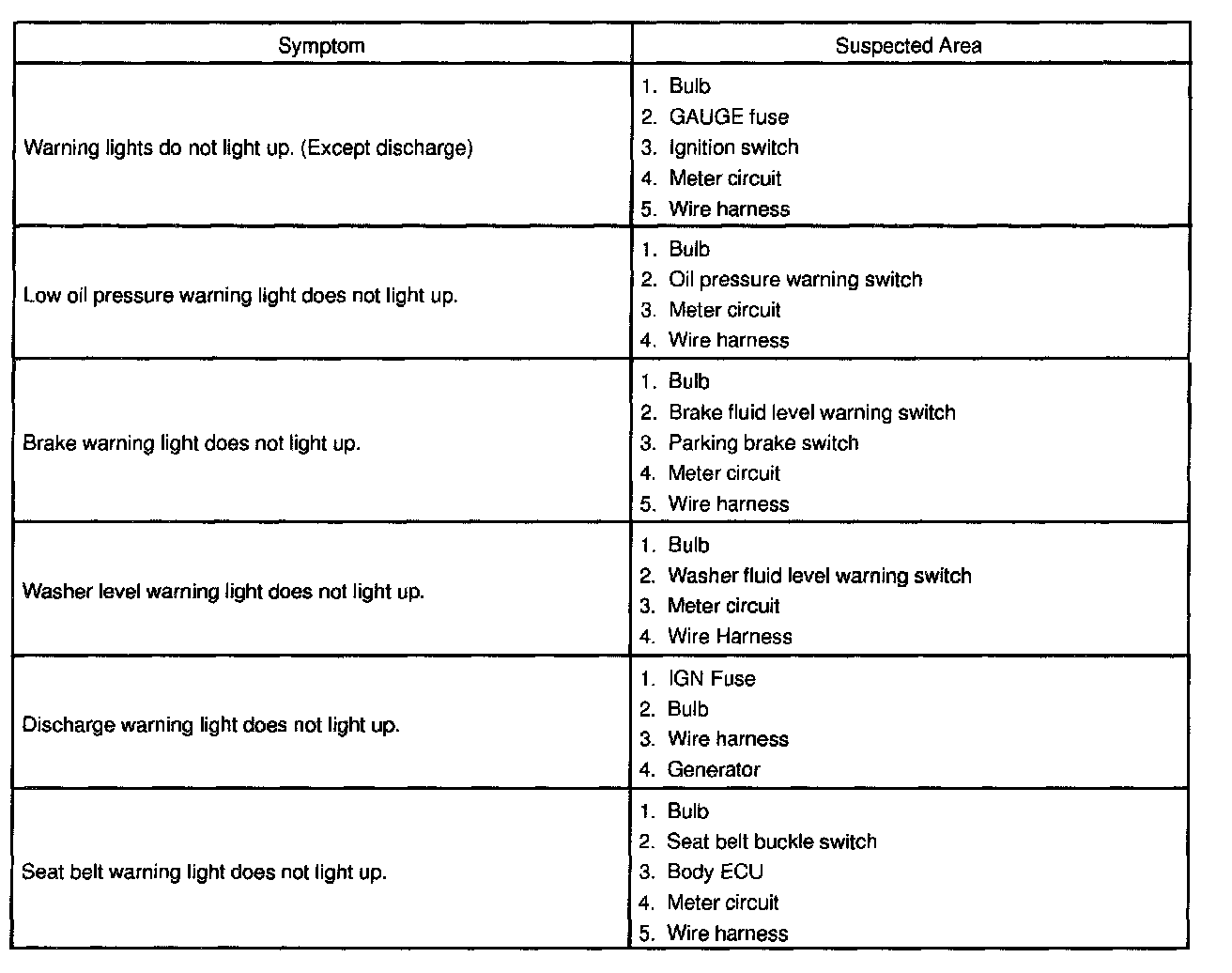

Problem Symptoms Table - Warning Lights - Combination Meter:

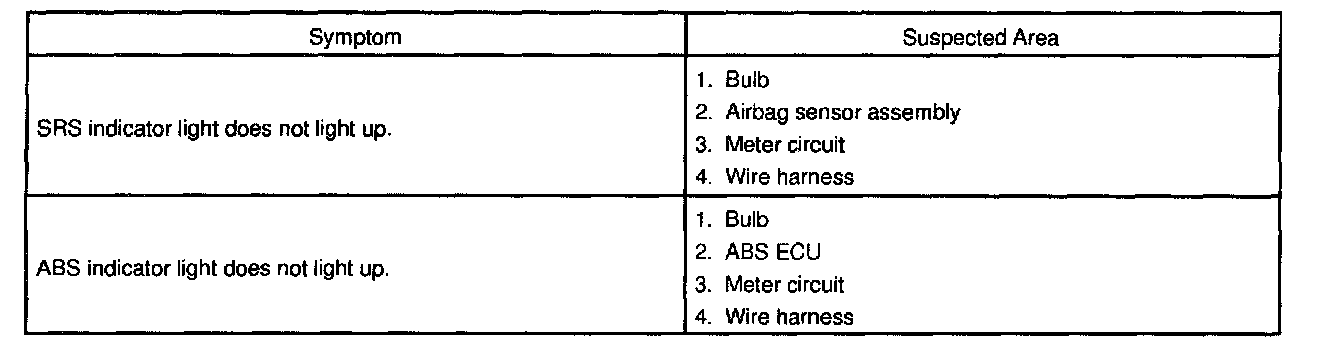

Problem Symptoms Table - Indicator Lights - Combination Meter (Part 1):

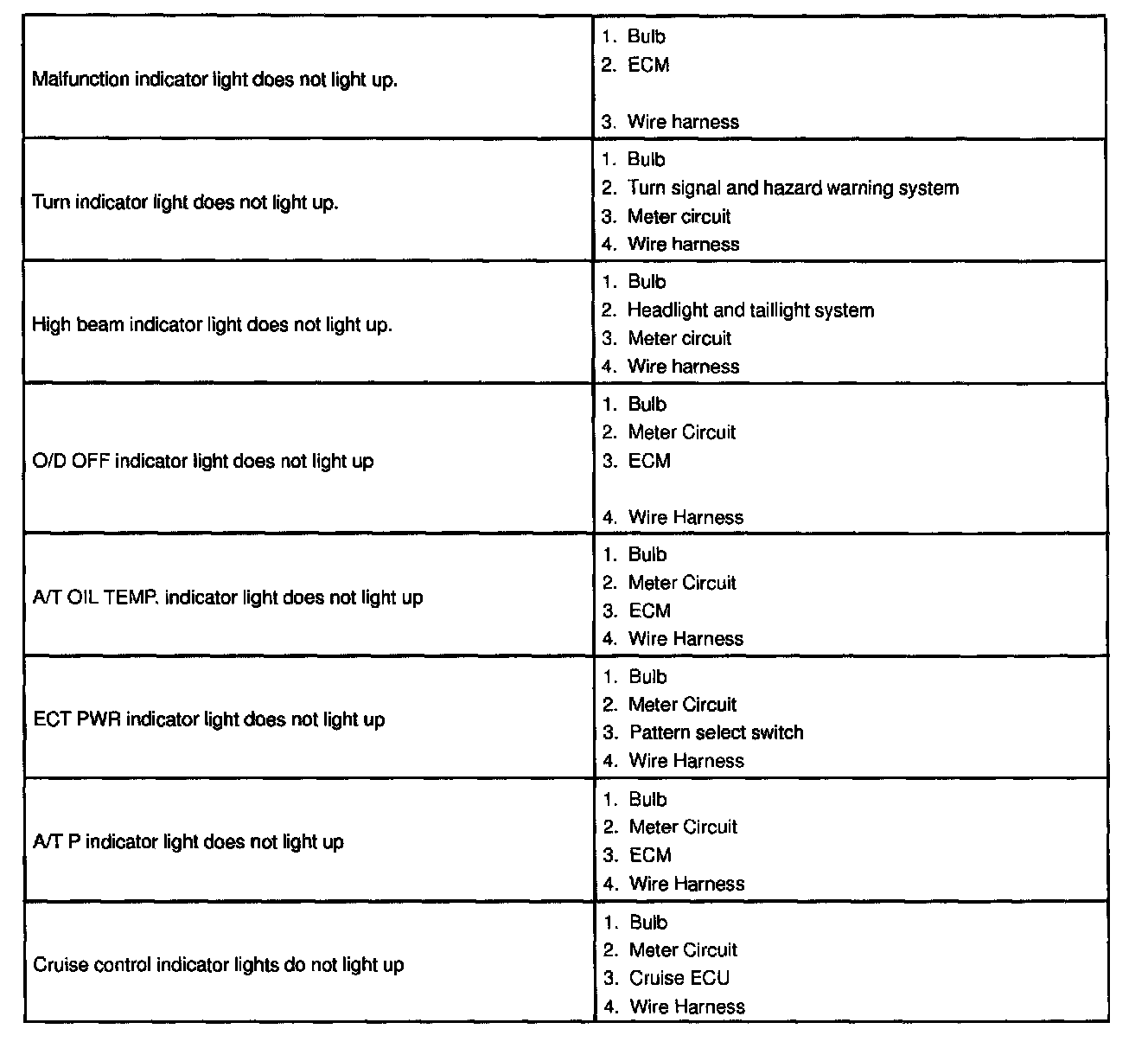

Problem Symptoms Table - Indicator Lights - Combination Meter (Part 2):
