Home
>>
Toyota
>>
2001
>>
Tacoma Extra Cab 2WD V6-3.4L (5VZ-FE)
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Diagrams
>>
Connector Views
>>
Engine Compartment
Engine Compartment

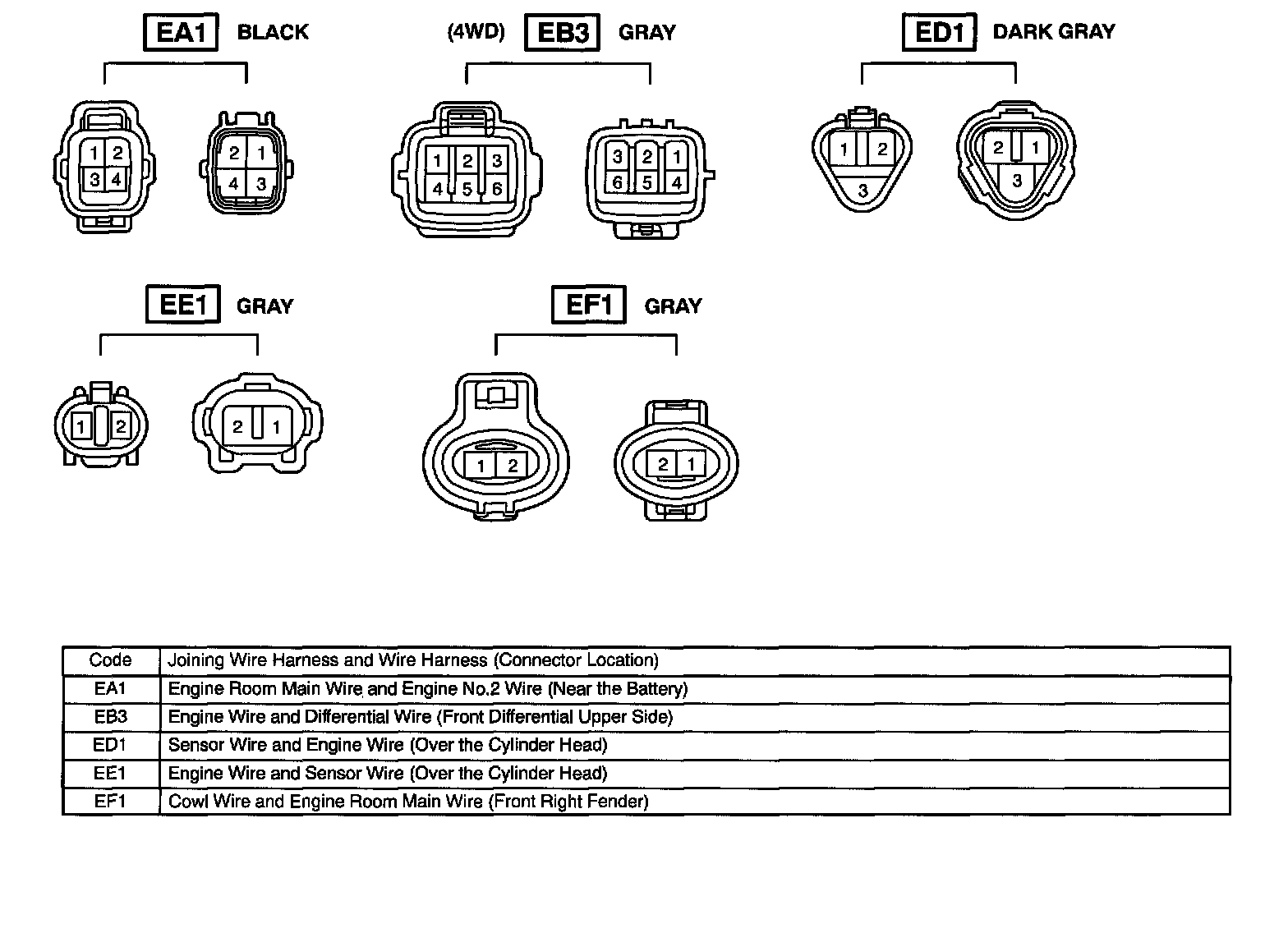

Wire Harness To Wire Harness Connectors (EA1 - EF1):
