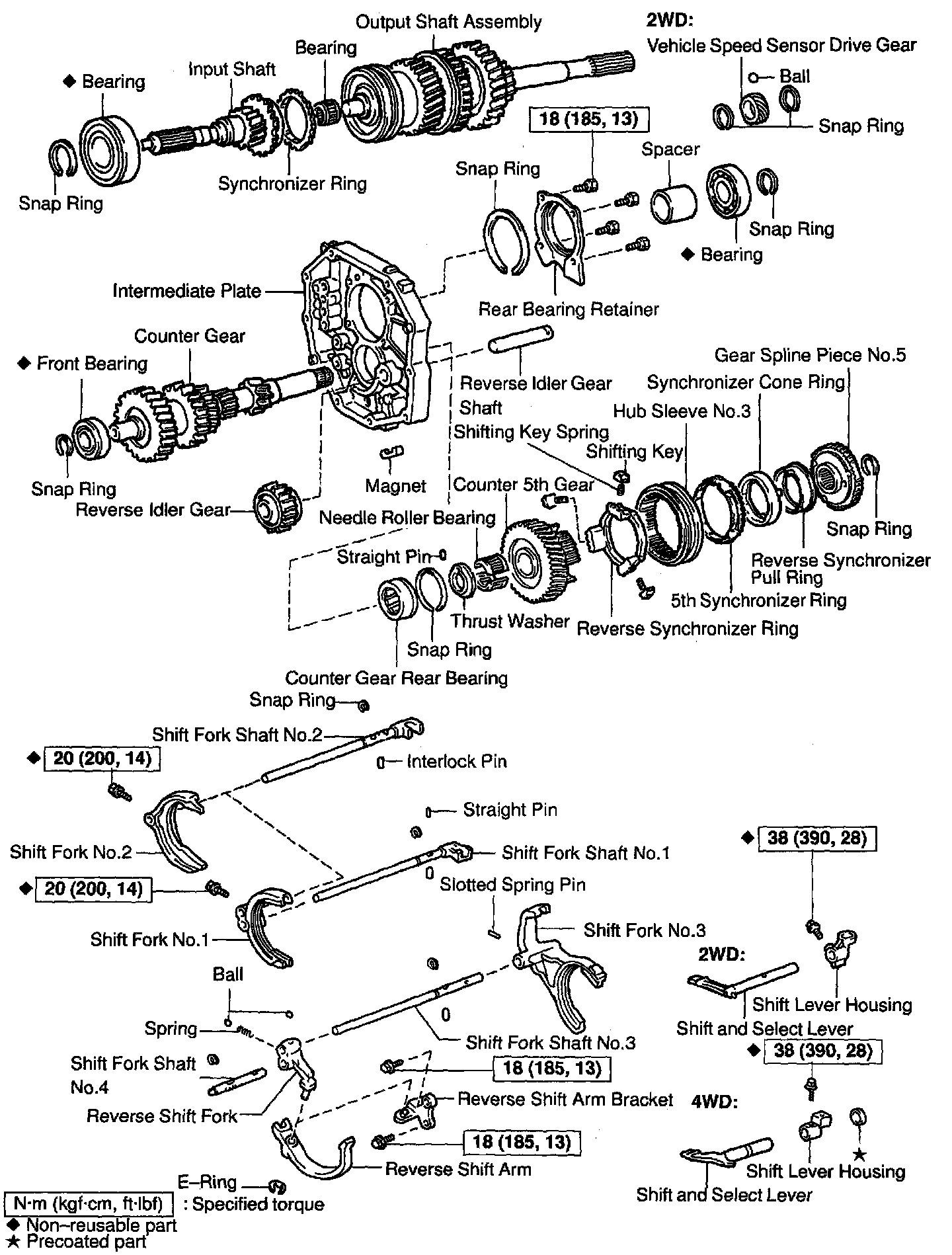

Tightening Specifications





MANUAL TRANSMISSION UNIT

MANUAL TRANSMISSION ASSEMBLY





Part 1 of 2





Part 2 of 2





OUTPUT SHAFT





EXTENSION HOUSING AND TRANSFER ADAPTOR
