Control Assembly, HVAC
Control Assembly, HVAC

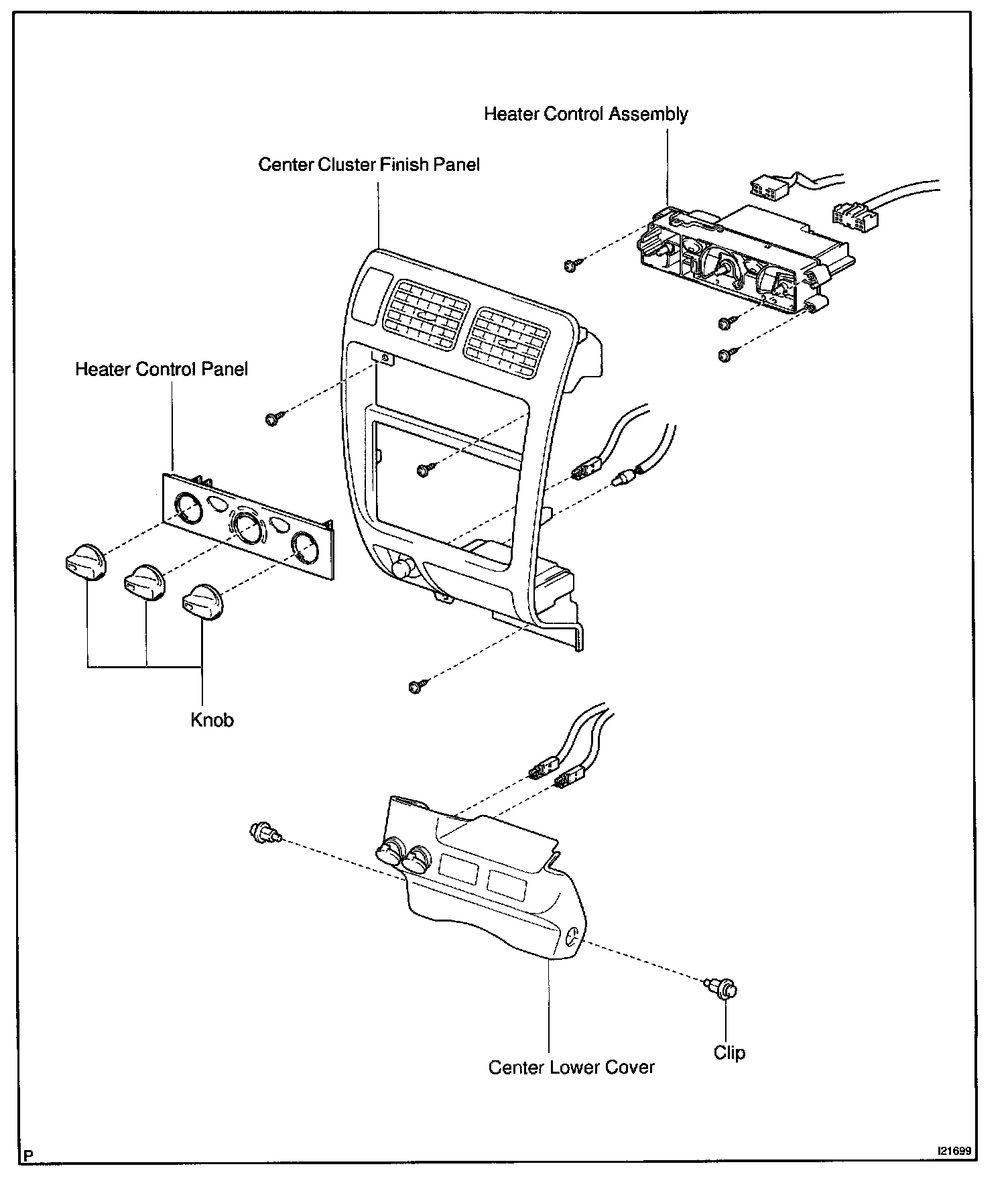

Heater Control Assembly (Part 1):

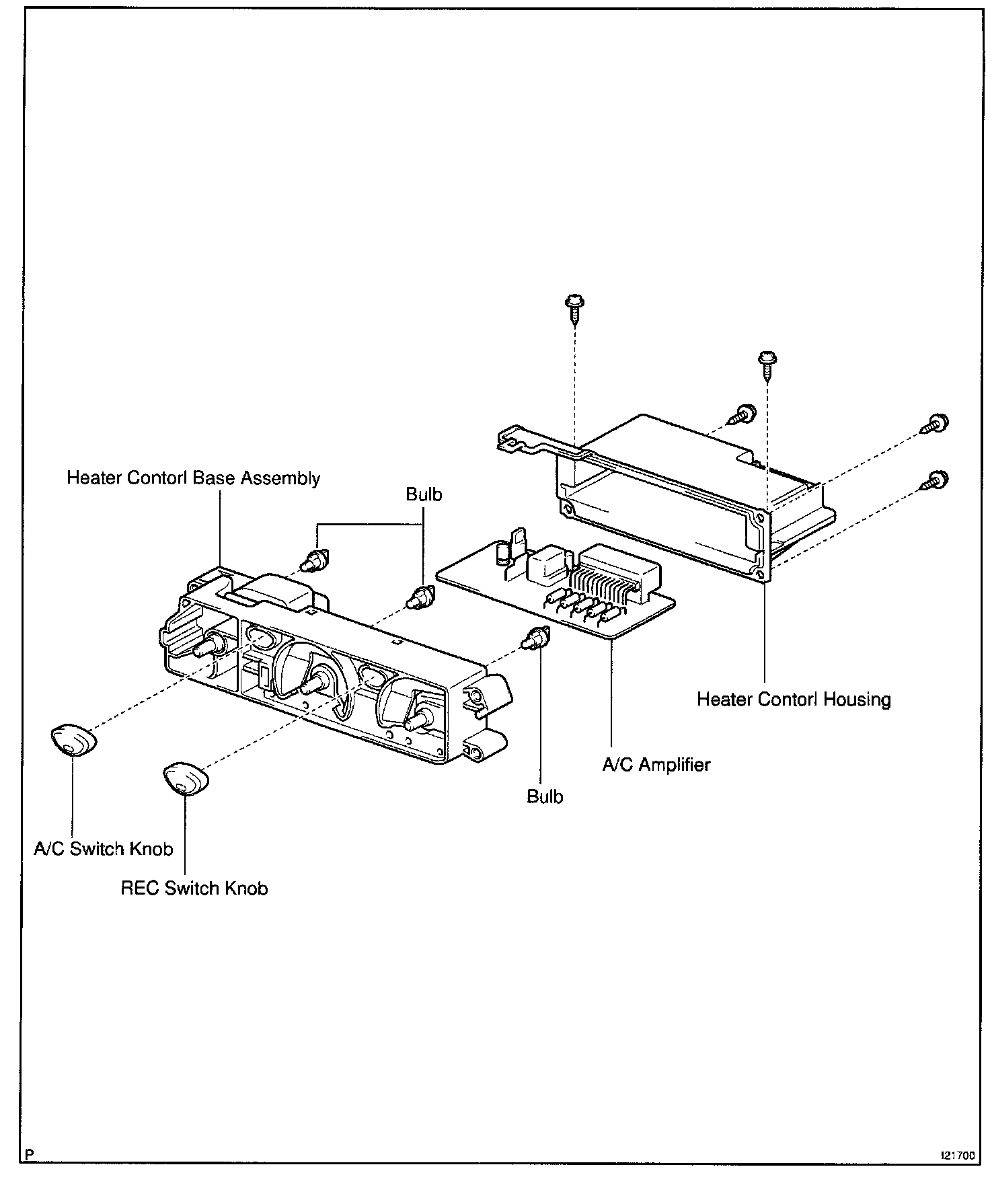

Heater Control Assembly (Part 2):
