Radio, Stereo, and Compact Disc

DIAGNOSIS CODE LISTS
Physical address: 190 Radio receiver assembly

Logical address: 01 (Communication control) / Part 1:

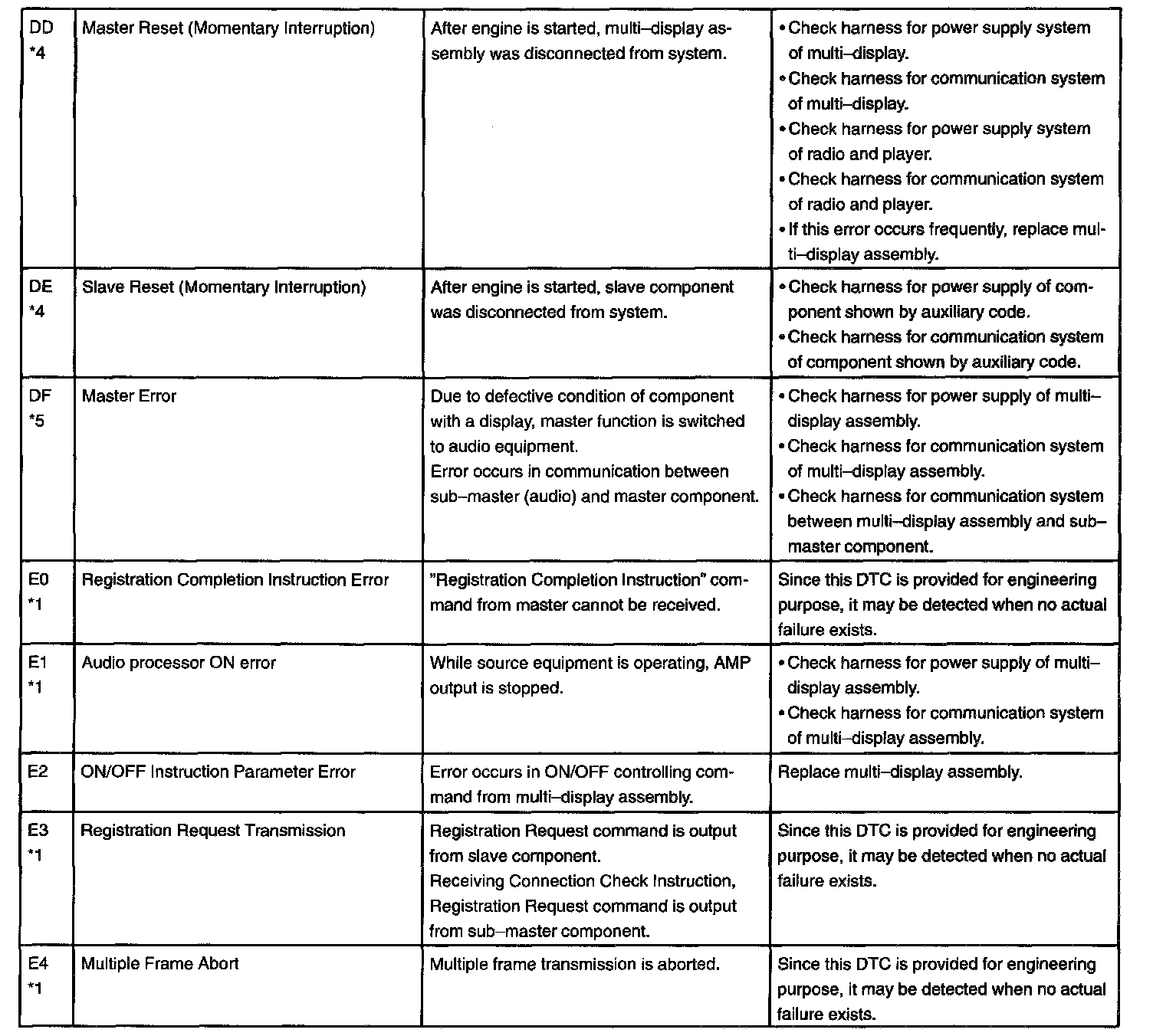

Logical address: 01 (Communication control) / Part 2:

Logical address: 61 (Cassette switch):

Logical address: 62 (CD player) / 63 (CD Auto changer):

HINT:
* 1: Even if no failure is detected, it may be stored depending on the battery condition or voltage for starting an engine.
* 2: It is stored when 180 sec. has passed after the power supply connector is pulled out after engine start.
* 3: It may be stored when the engine key is turned 1 min. again after engine start.
* 4: It may be stored when the engine key is turned again after engine start.
* 5: When 210 sec. has passed after pulling out the power supply connector of the master component with the ignition switch in ACC or ON, this code is stored.

Logical address: 01 (Communication control):

Physical address: 440 Stereo component amplifier

HINT:
* 1: Even if no failure is detected, it may be stored depending on the battery condition or voltage for starting an engine.
* 2: It may be stored when the engine key is turned 1 min. again after engine start.
* 3: It may be stored when the engine key is turned again after engine start.
* 4: When 210 sec. has passed after pulling out the power supply connector of the master component with the ignition switch in ACC or ON, this code is stored.

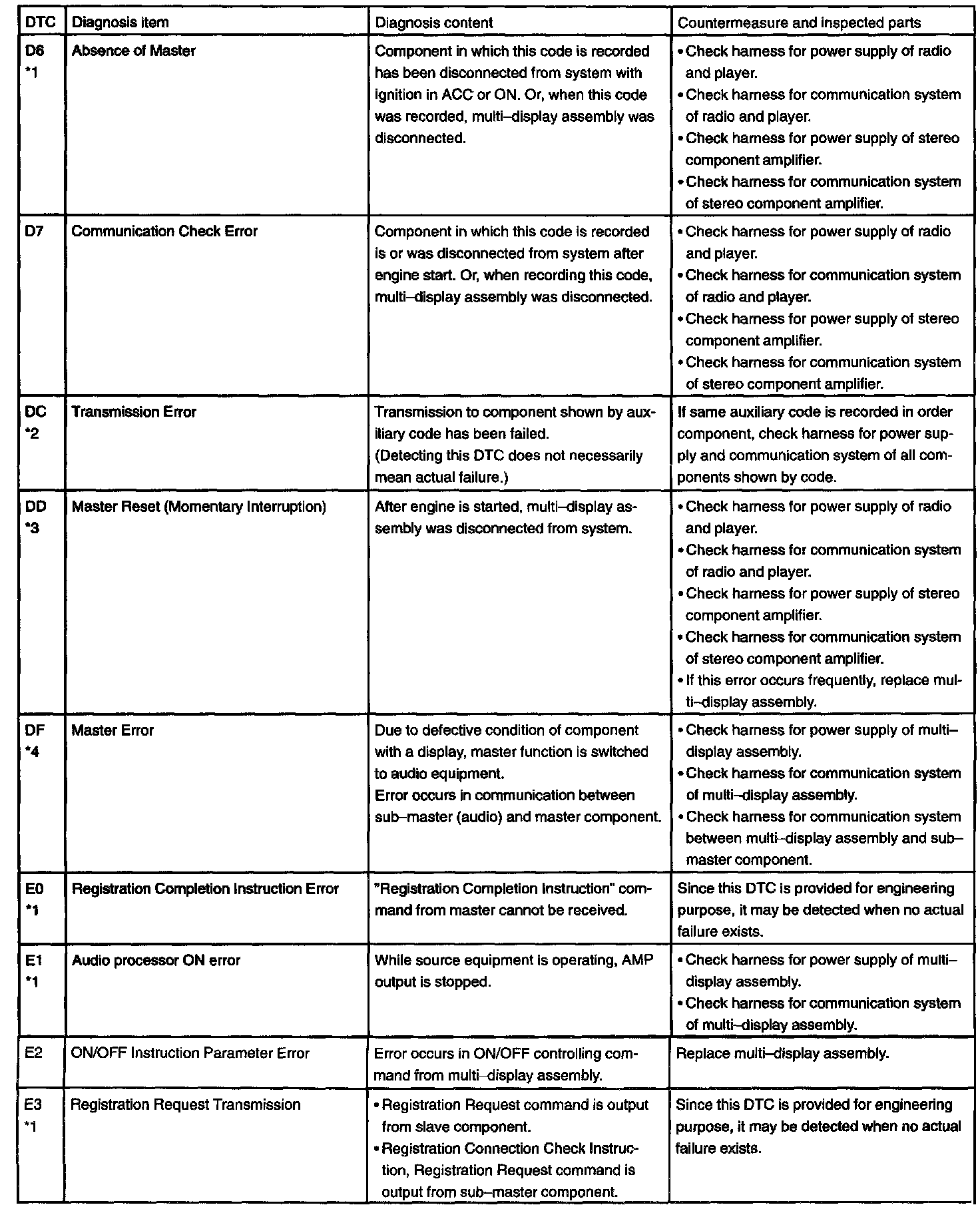

Logical address: 01 (Communication control) / Part 1:

Logical address: 01 (Communication control) / Part 2:

Physical address: 360 CD Auto Changer

HINT:
* 1: Even if no failure is detected, it may be stored depending on the battery condition or voltage for starting an engine.
* 2: It may be stored when the engine key is turned 1 min. again after engine start.
* 3: It may be stored when the engine key is turned again after engine start.
* 4: It may be stored when the engine key is turned again after engine start.
* 5: When 210 sec. has passed after pulling out the power supply connector of the master component with the ignition switch in ACC or ON, this code is stored.
