ABS Diagnosis System

DIAGNOSIS SYSTEM





A. Check the indicator.

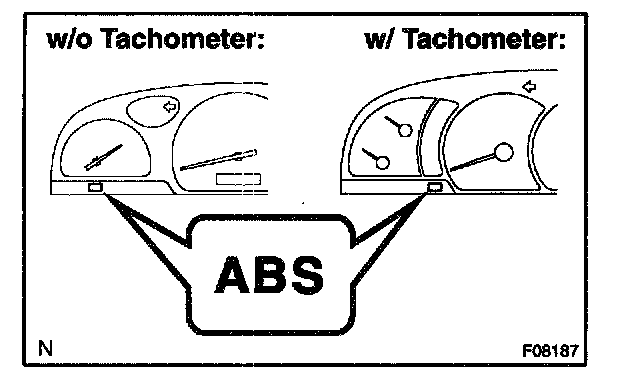

When the ignition switch is turned ON, check that the ABS warning light is on for 3 seconds.

HINT: If the indicator check result is not normal, proceed to troubleshooting of the ABS warning light circuit.





B. In case of using TOYOTA hand-held tester:
Check the DTC.

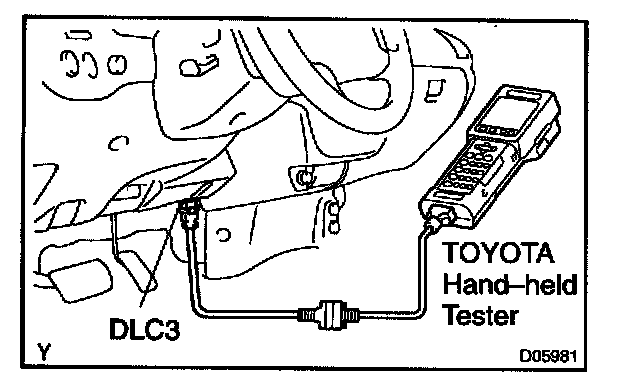

1. Connect the TOYOTA hand-held tester to the DLC3.
2. Read the DTC by following the prompts on the tester screen.

HINT: Please refer to the TOYOTA hand-held tester operator's manual for further details.
