Fuel Pump Control Circuit
Fuel Pump Control CircuitCIRCUIT DESCRIPTION
In the diagram, when the engine is cranked, current flows from terminal ST of the ignition switch to the starter relay coil, the starter relay switches on and current flows to coil L1 of the circuit opening relay. Thus the circuit opening relay switches on, power is supplied to the fuel pump and the fuel pump operates.
When the STA signal and NE signal are input to the ECM, Tr is turned ON, current flows to coil L2 of the circuit opening relay, the relay switches on, and the fuel pump operates. While the NE signal is generated (engine running). the ECM keeps Tr ON (circuit opening relay ON) and the fuel pump also keeps operating.

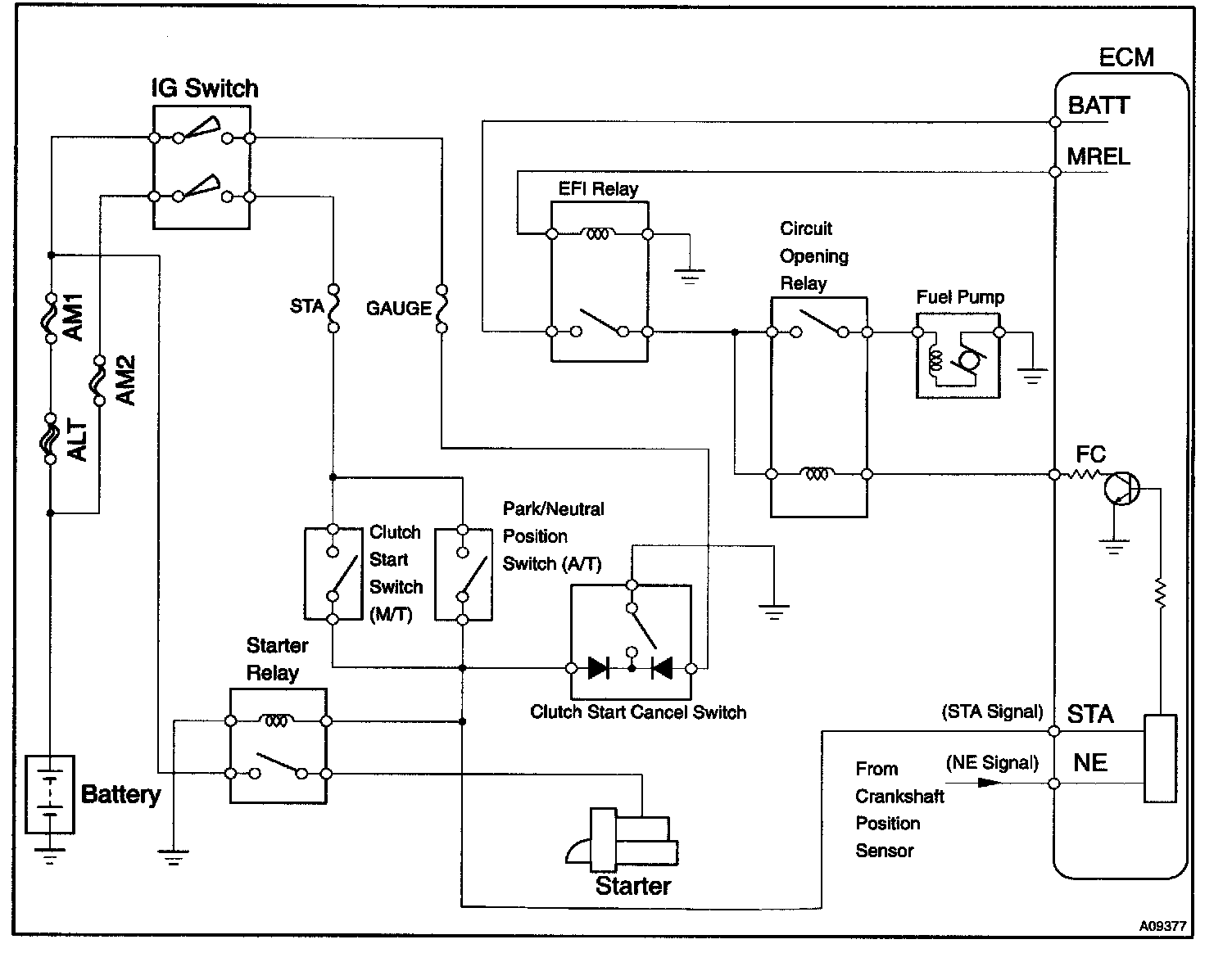

Wiring Diagram:
INSPECTION PROCEDURE

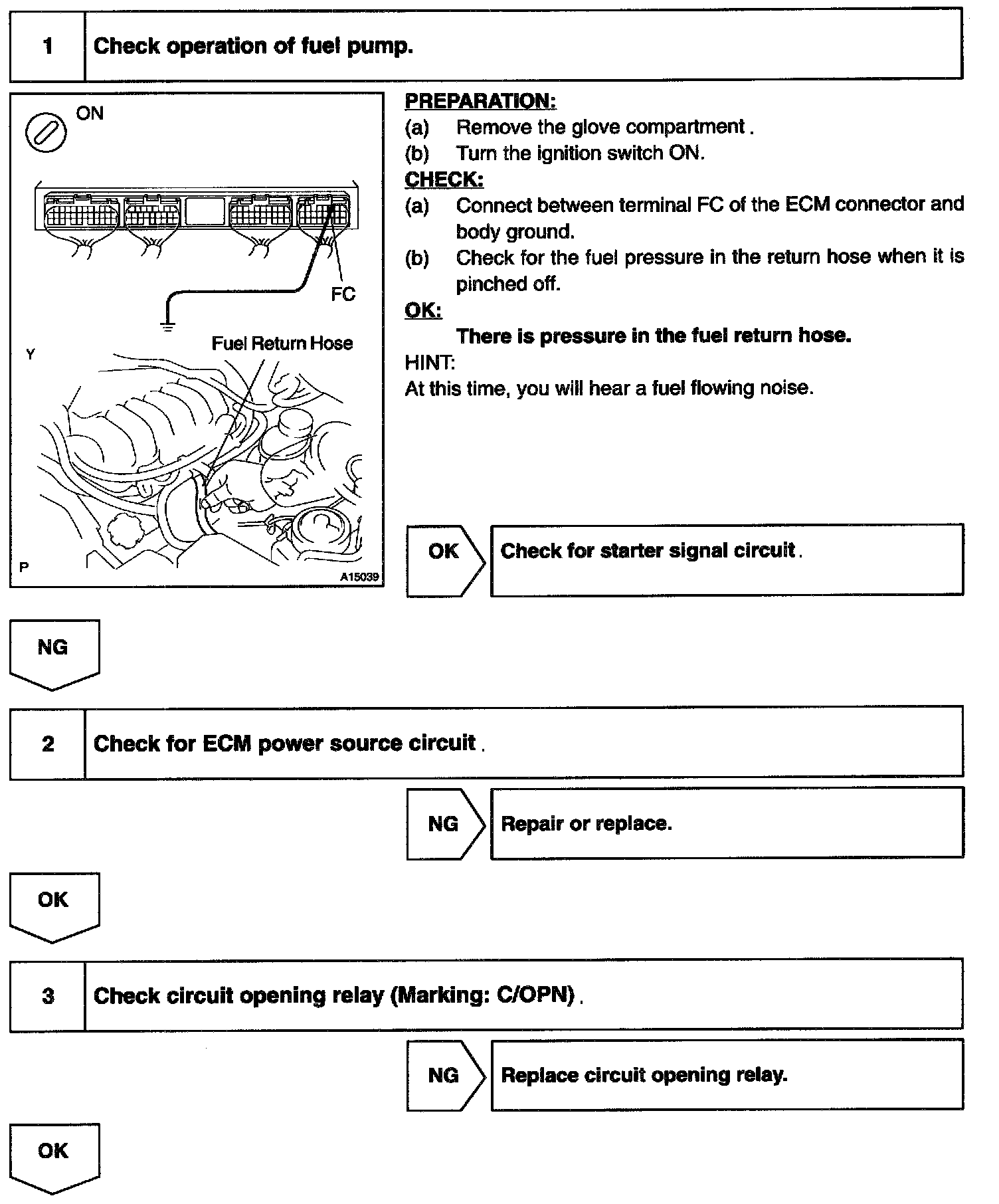

Steps 1 - 2:

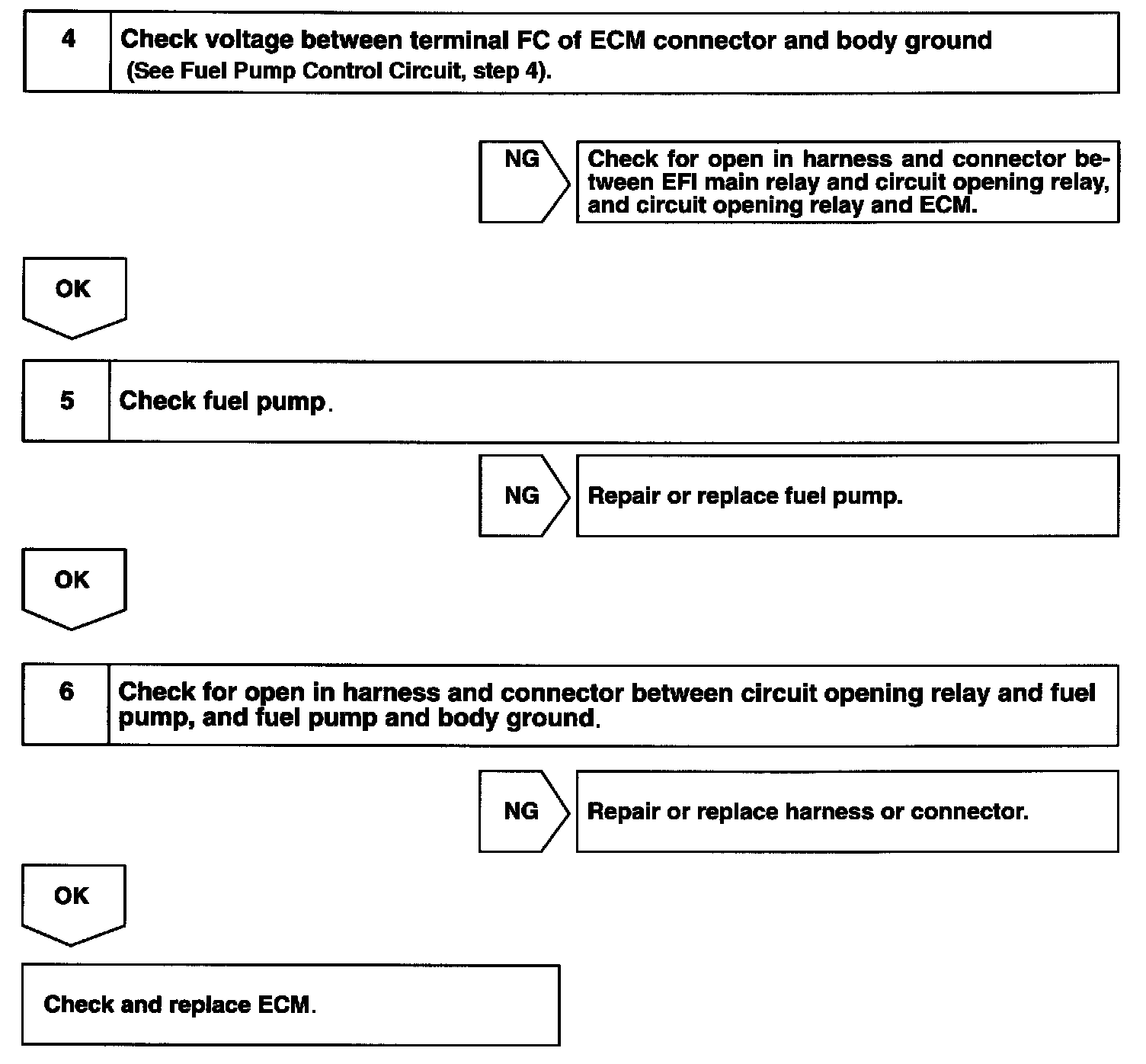

Steps 3 - 6:
TOYOTA hand-held tester
Steps 1 - 3:

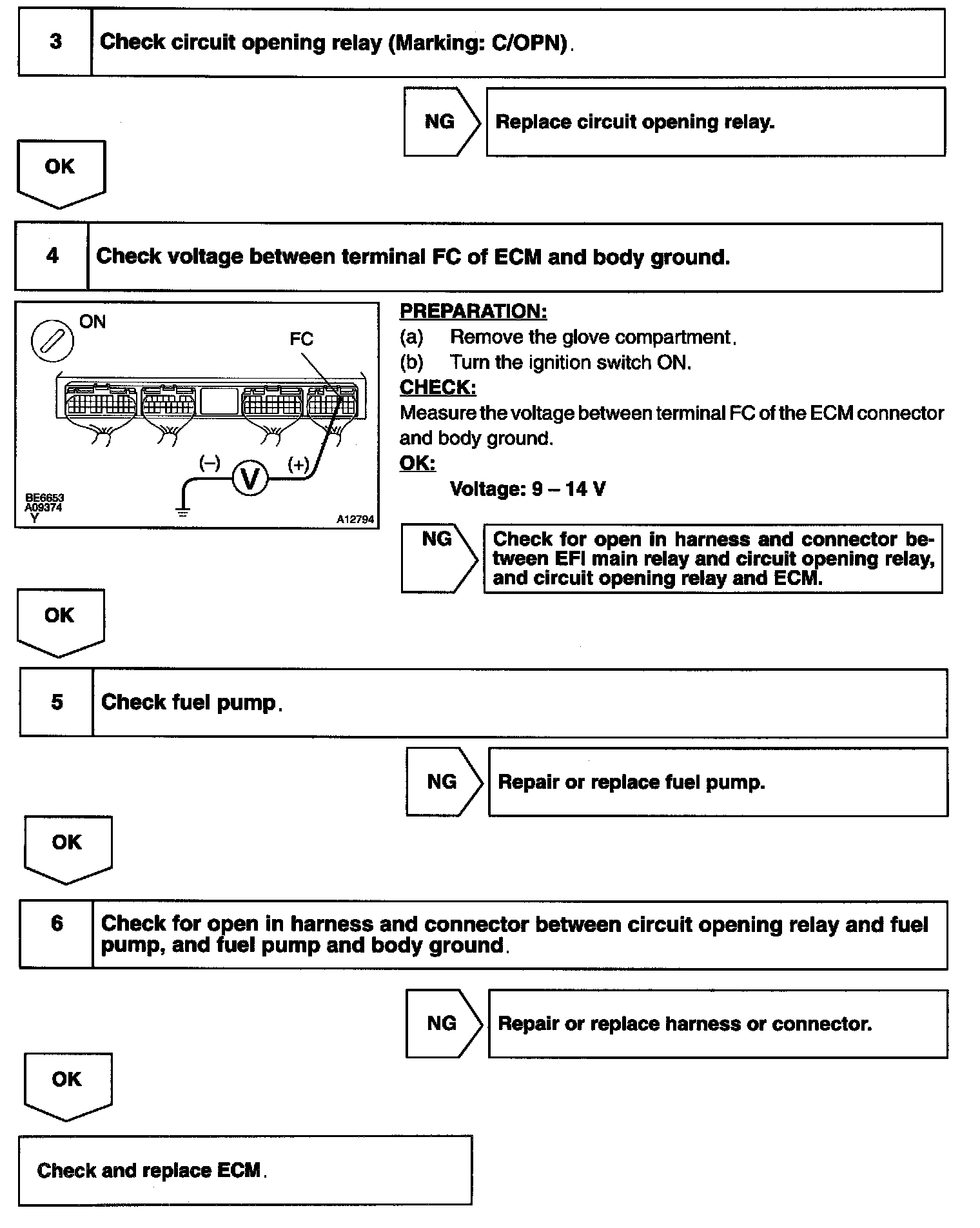

Steps 4 - 6:
OBD II scan tool (excluding TOYOTA hand-held tester)
