Connector Code Lists

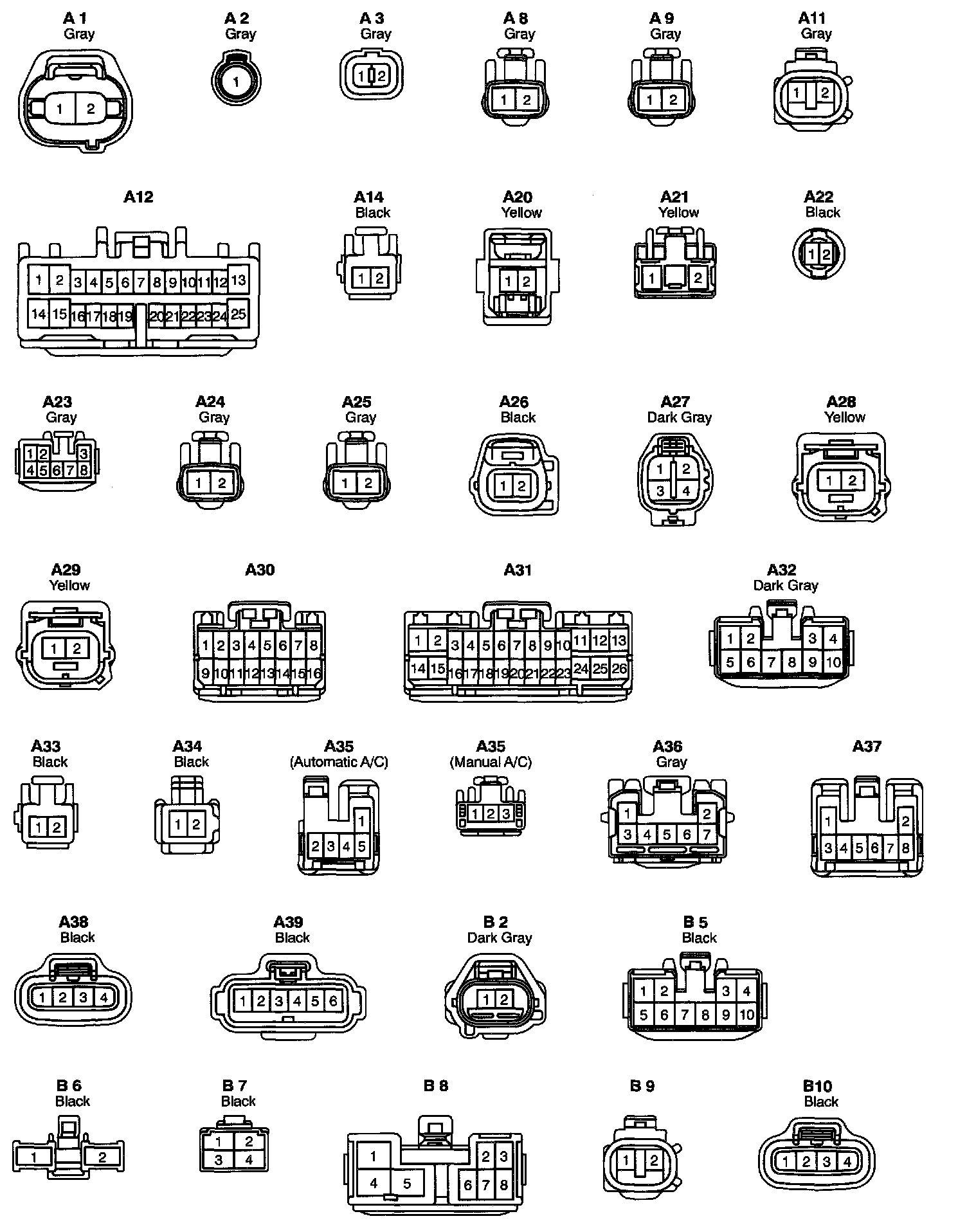

Connector View A1 - B10:

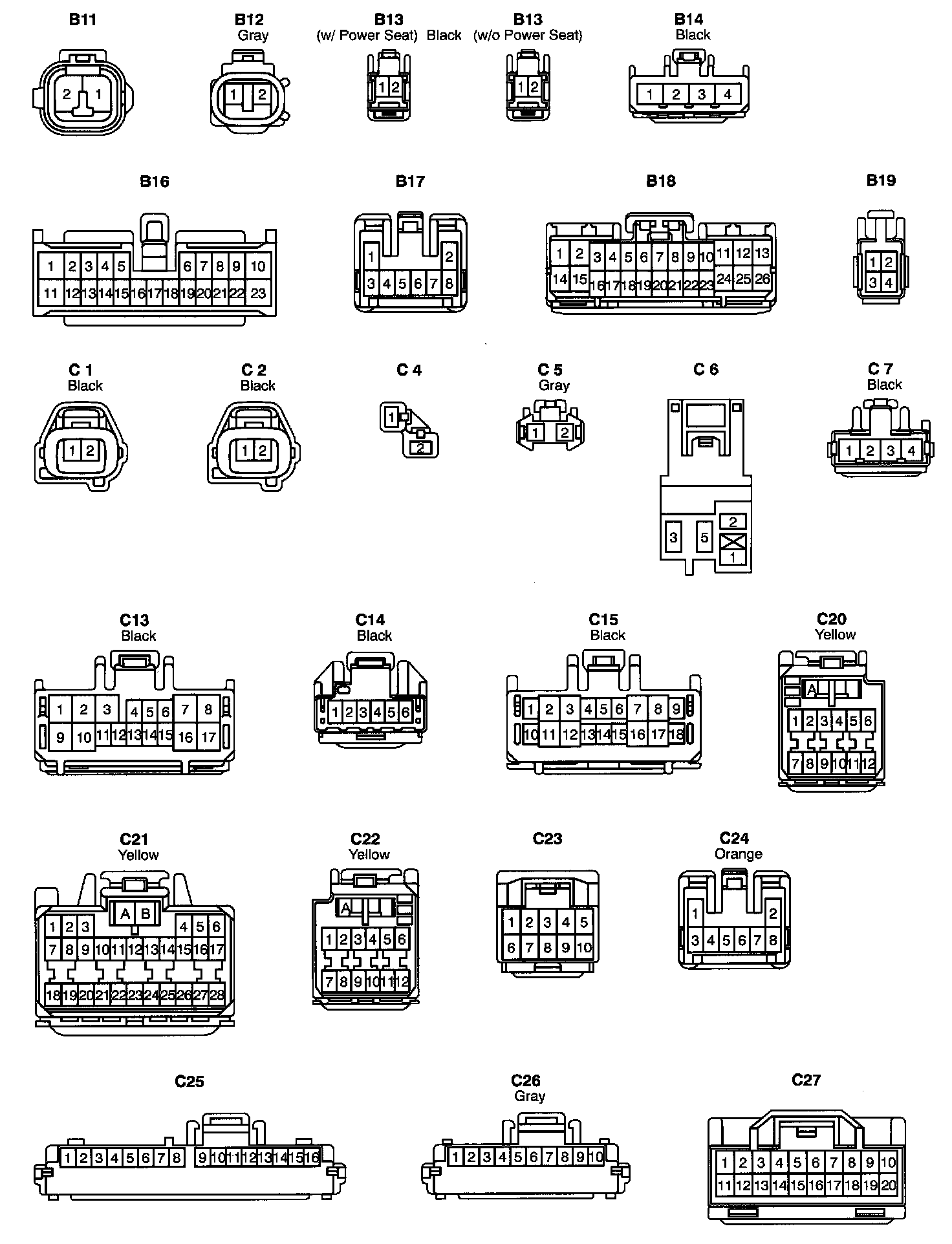

Connector Views B11 - C27:

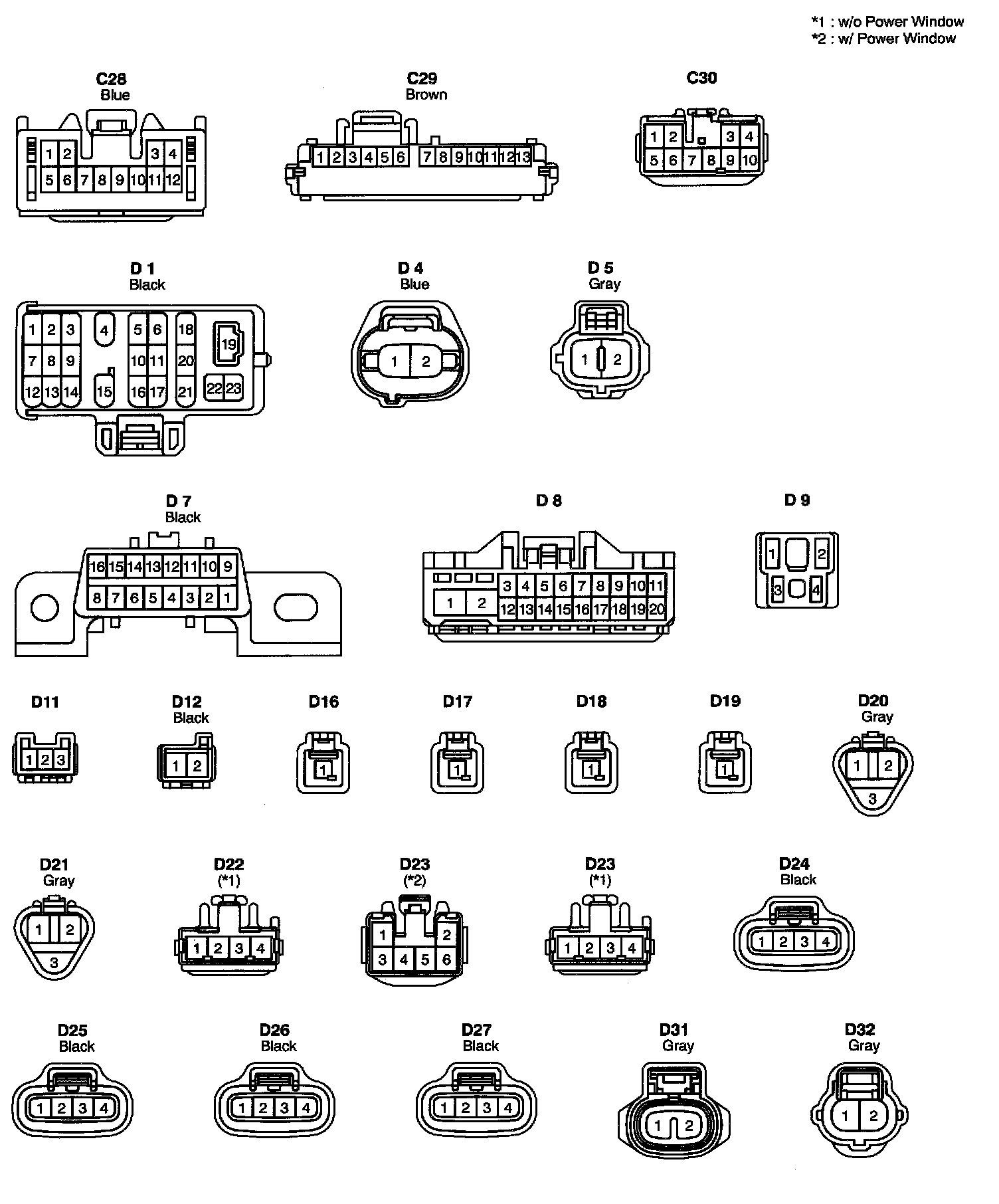

Connector Views C28 - D32:

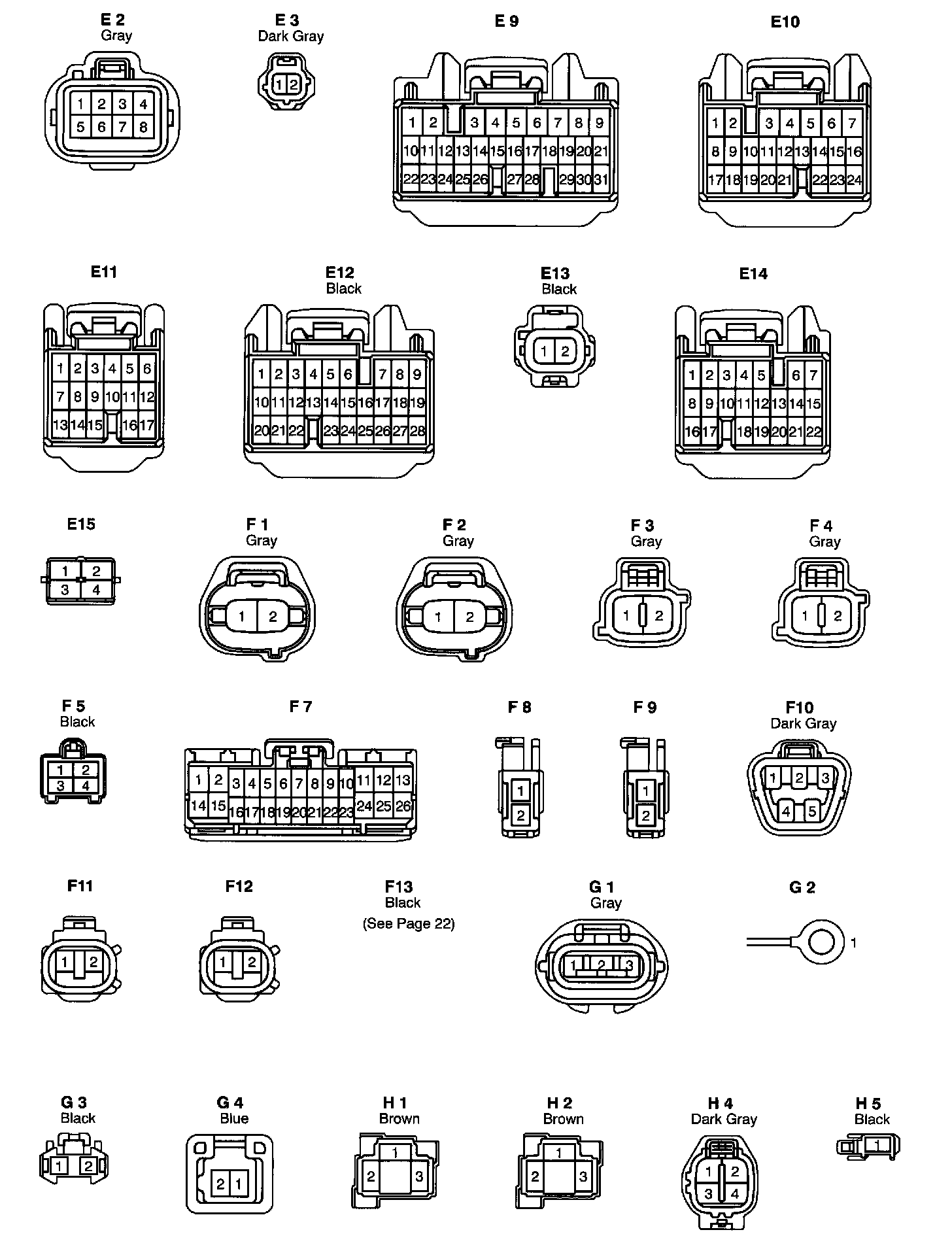

Connector Views E2 - H5:

Connector Views H16 - L1:

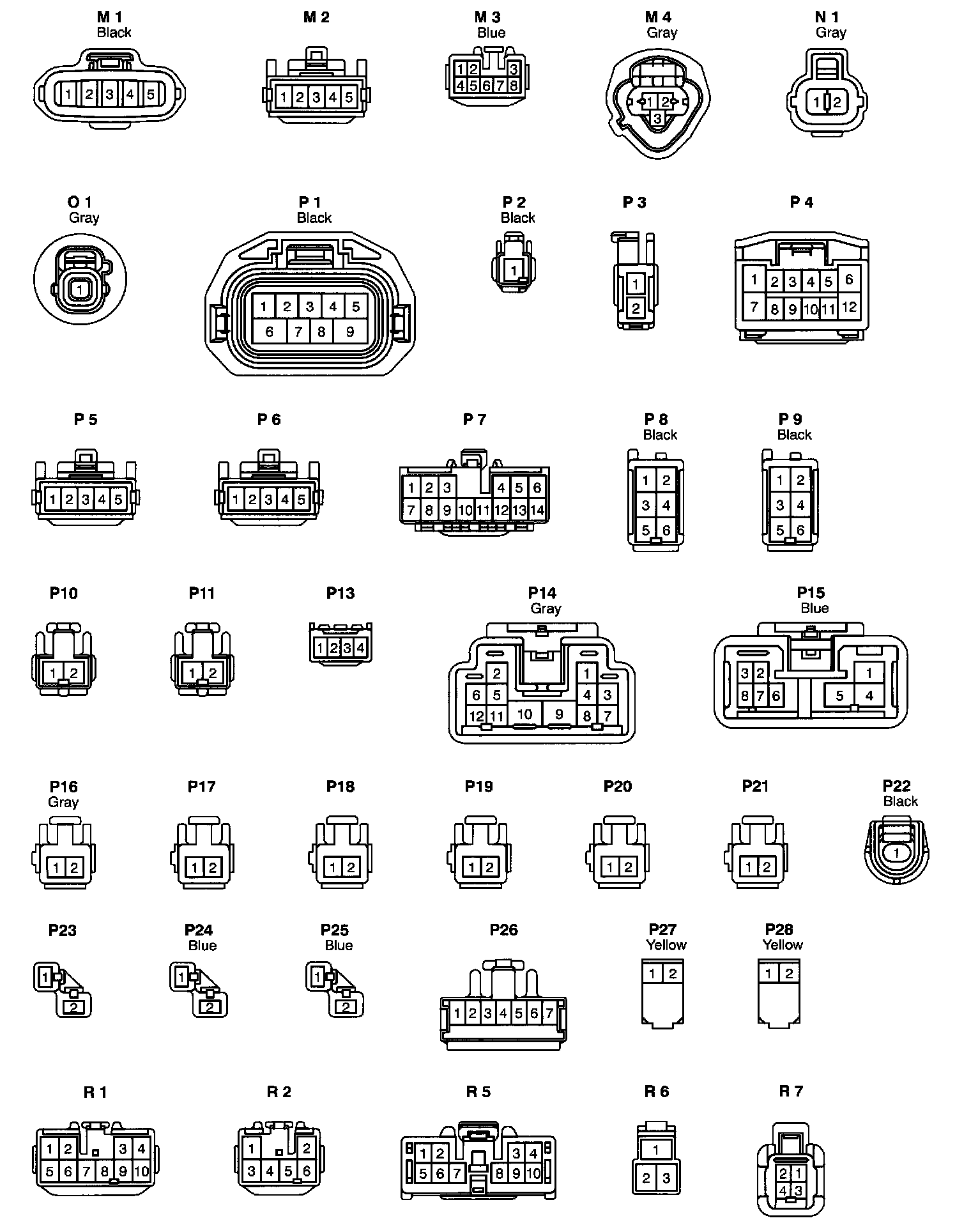

Connector Views M1 - R7:

Connector Views R8 - T5:

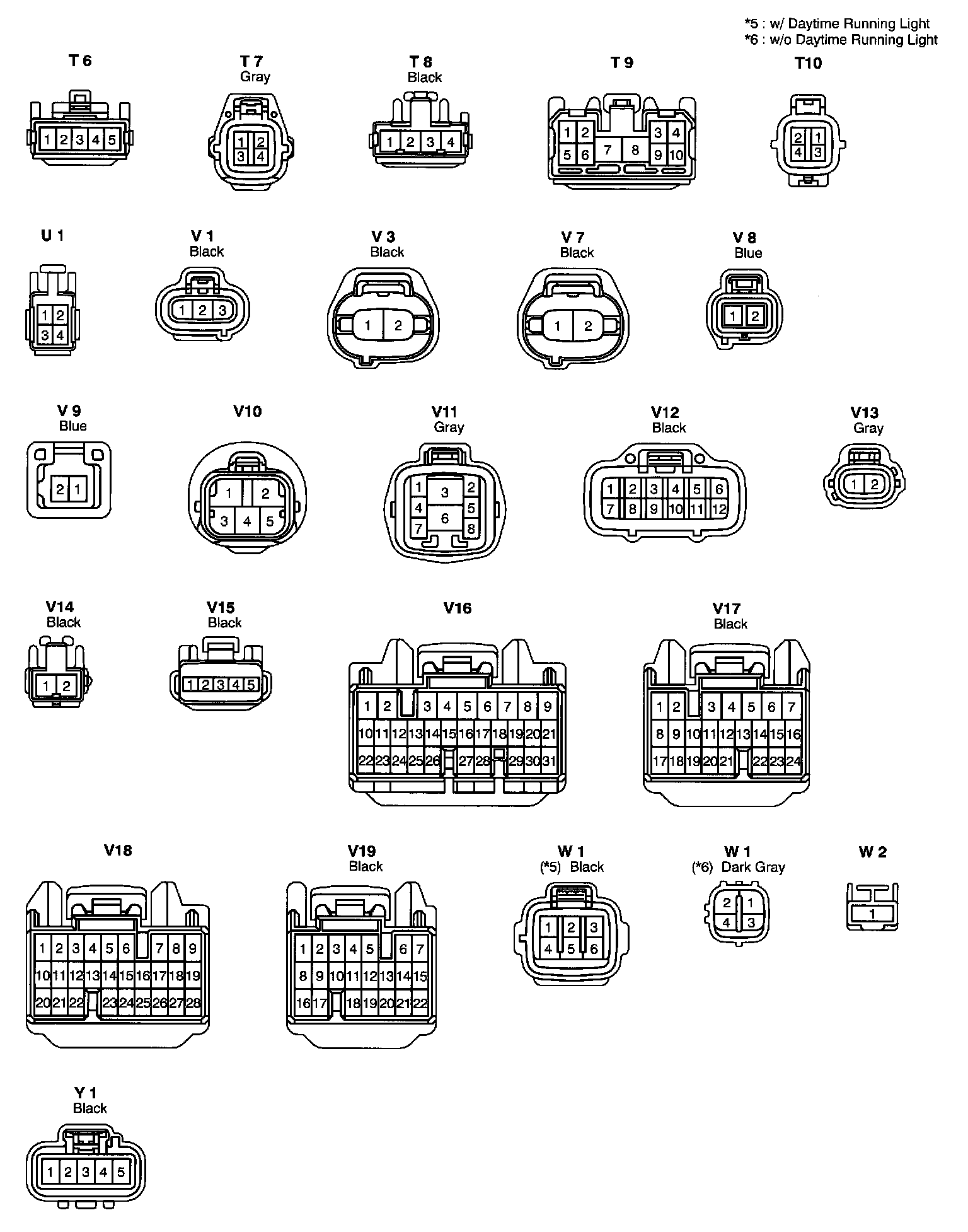

Connector Views T6 - Y1:
