Control Assembly, HVAC
Control Assembly, HVAC

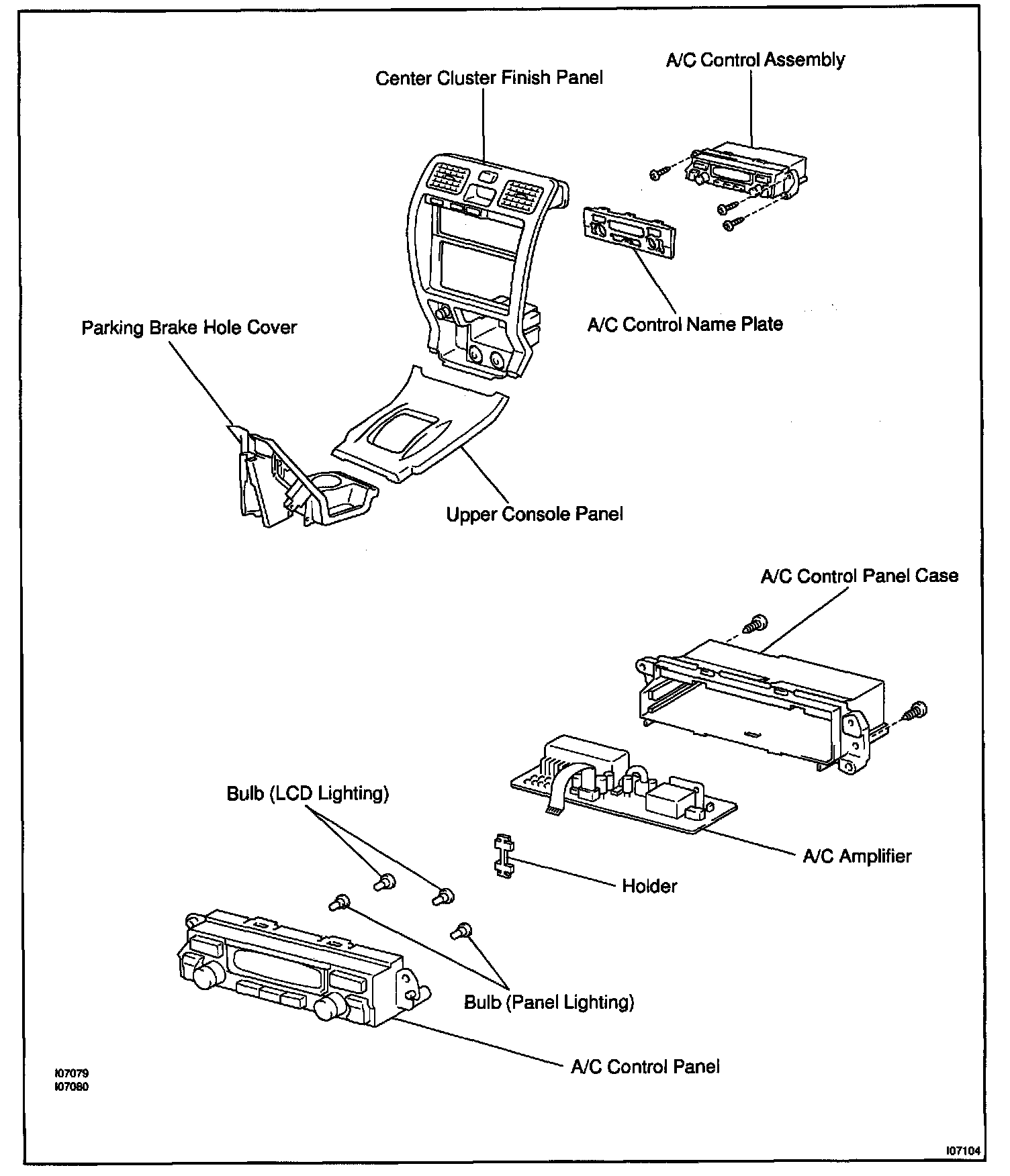

Air Conditioning Control Assembly (Auto A/C):

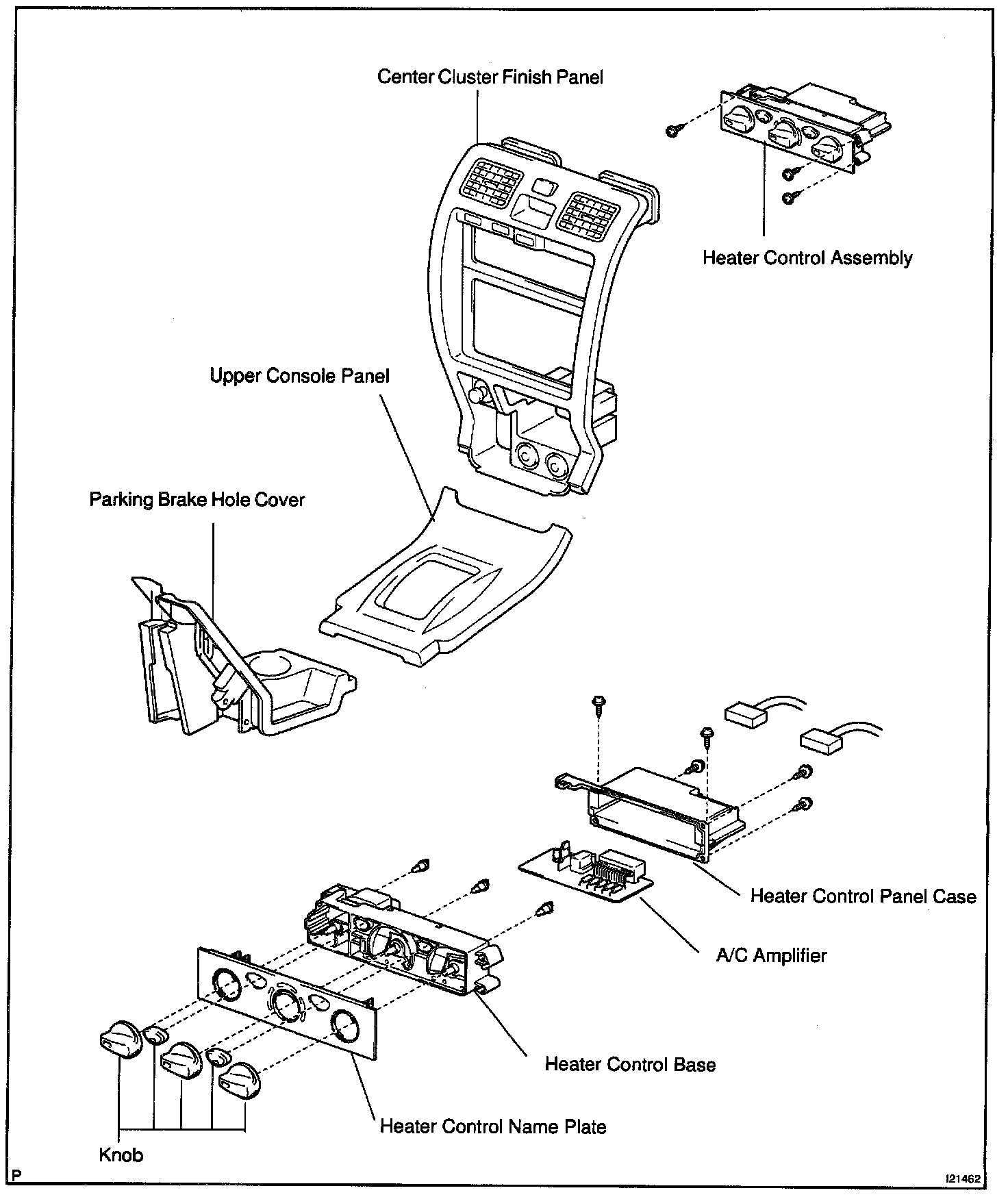

Heater Control Assembly (Manual A/C):
