Camshaft Position Sensor: Testing and Inspection

INSPECTION CAMSHAFT POSITION SENSOR

a. Disconnect the camshaft position sensor connector.

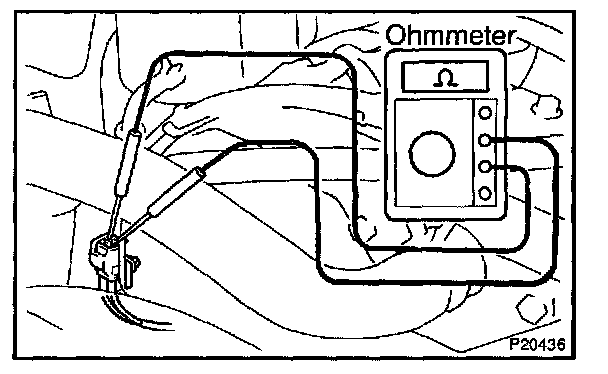

b. Using an ohmmeter, measure the resistance between terminals.

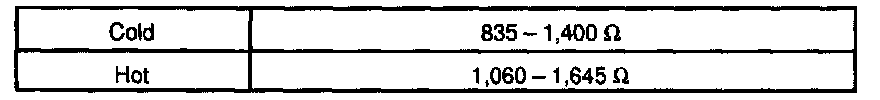

Resistance:
If the resistance is not as specified, replace the camshaft position sensor.

c. Connect the camshaft position sensor connector.
