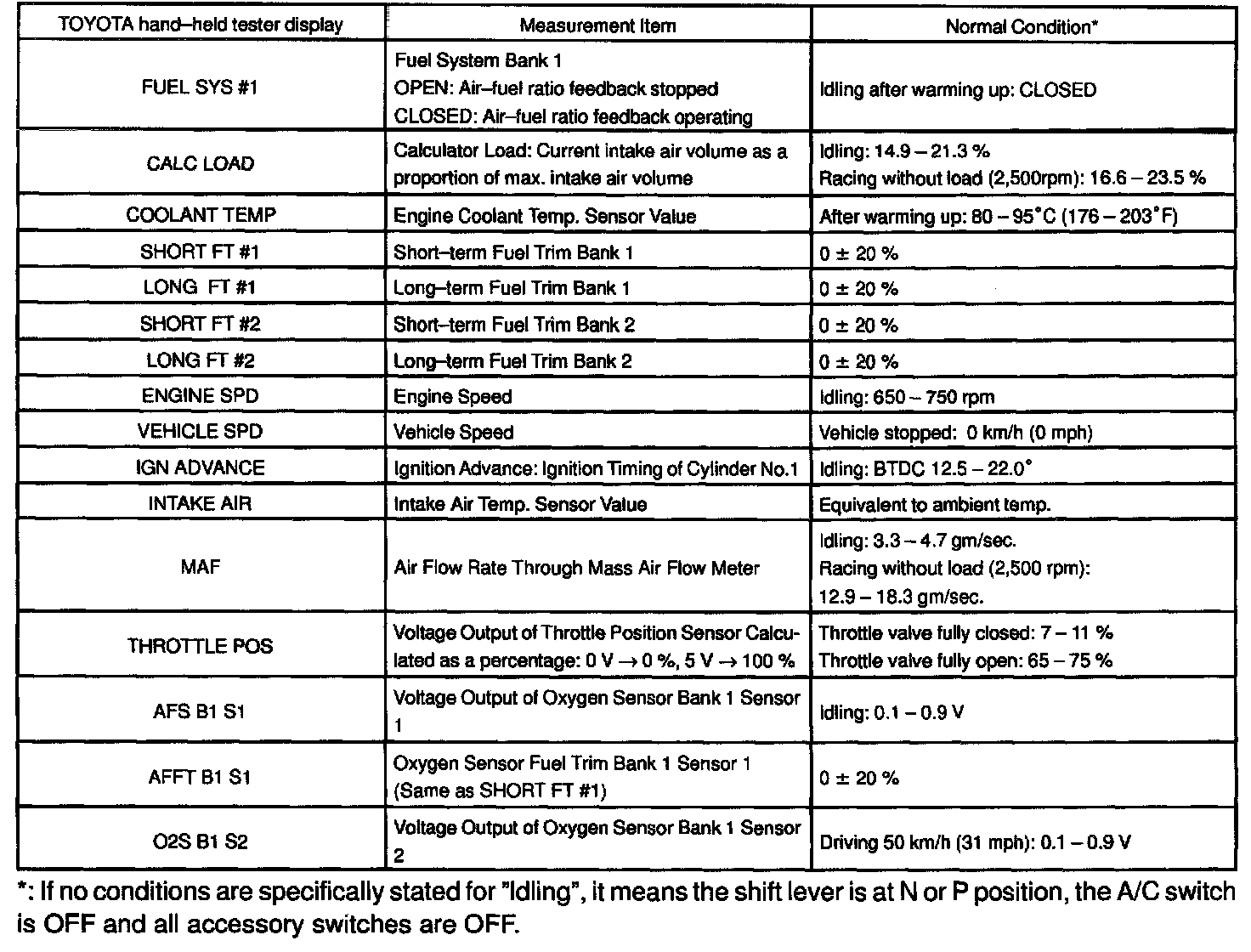

Normal Scan Data Values

CARB Mandated Signals:

TOYOTA Enhanced Signals Part 1:

TOYOTA Enhanced Signals Part 2:

ENGINE OPERATING CONDITION

NOTE: The values given below for "Normal Condition" are representative values, so a vehicle may still be normal even if its value varies differ from those listed here. So do not decide whether a part Is faulty or not solely according to the "Normal Condition" here.
