System Specifications

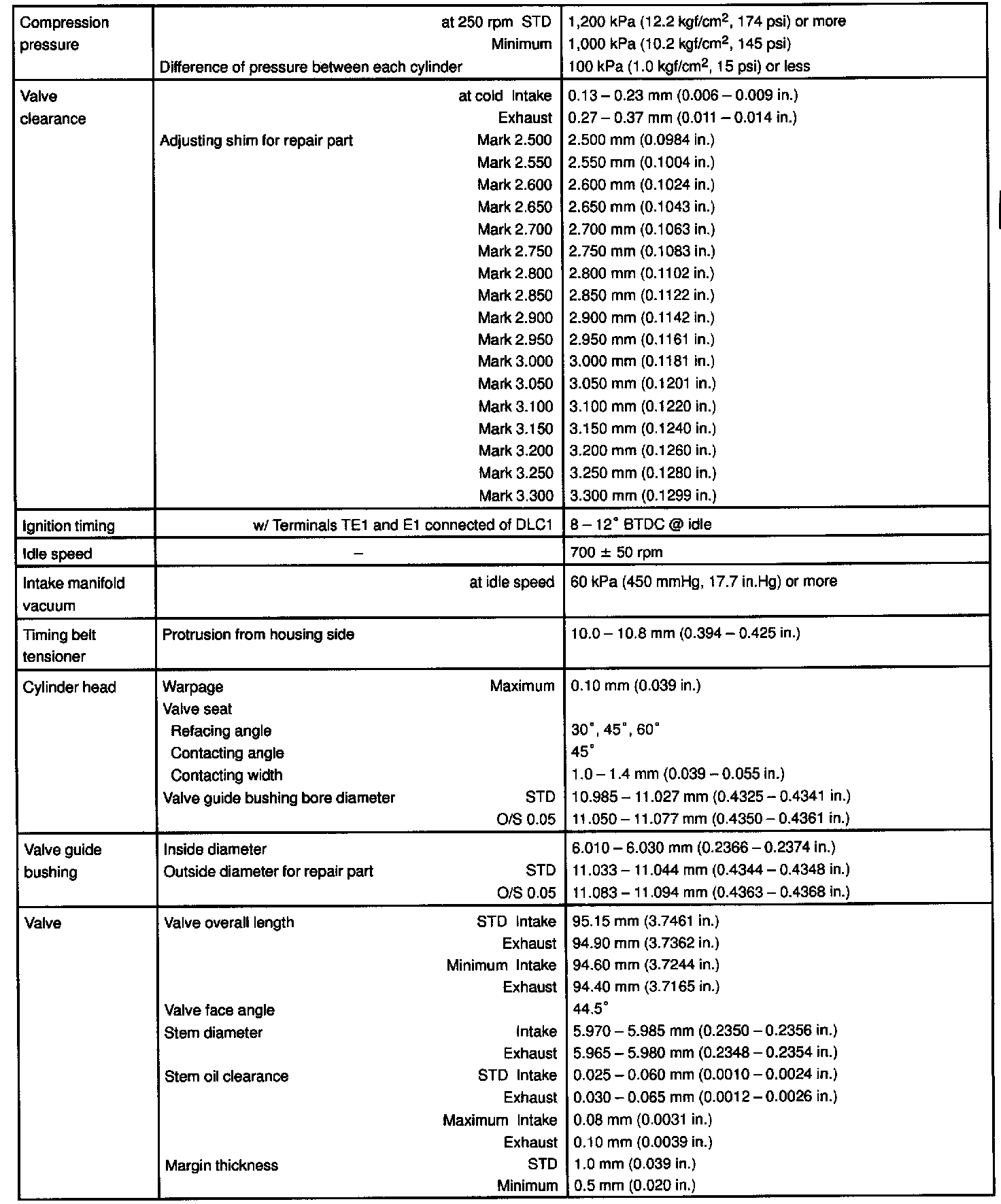

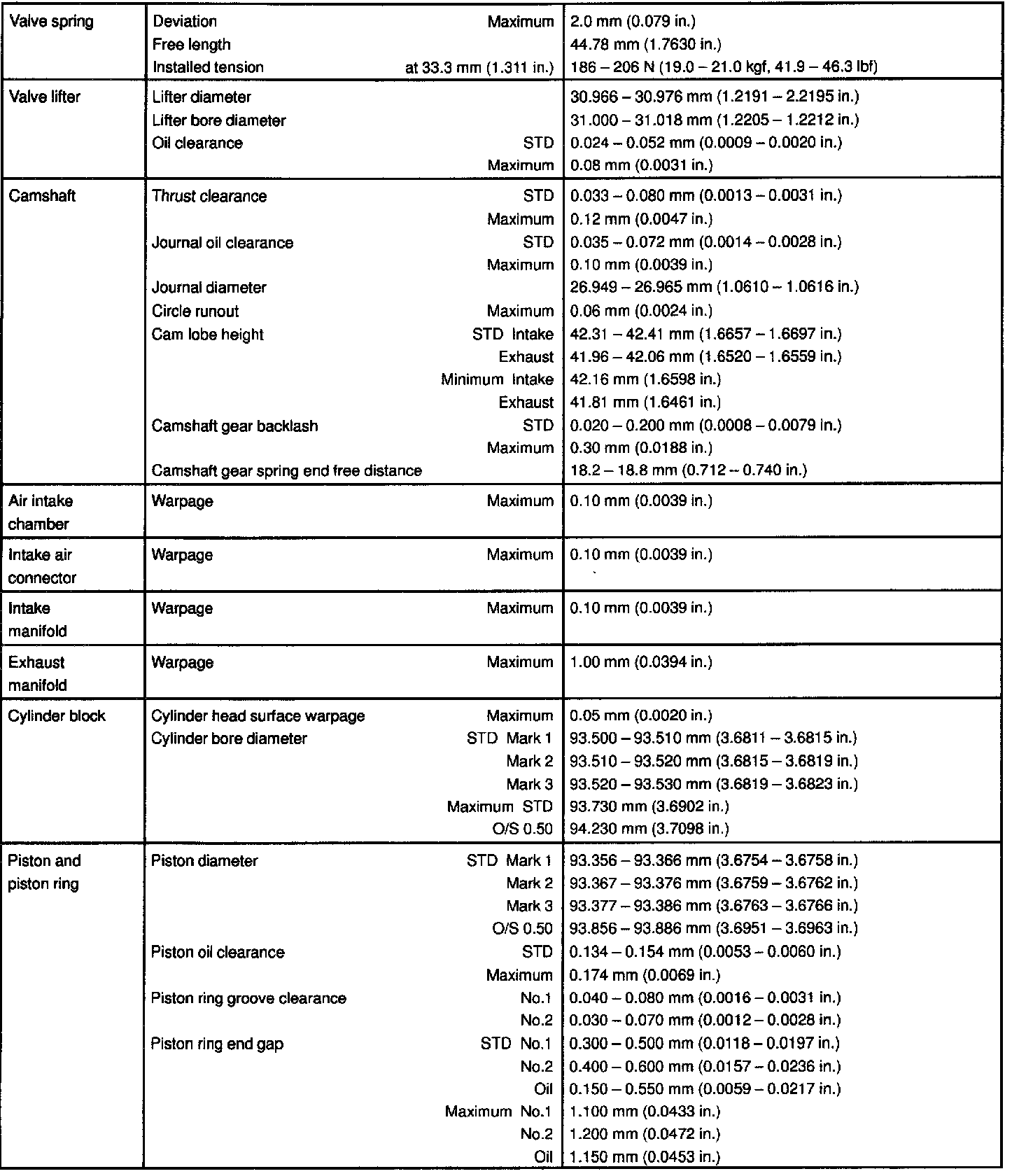

ENGINE MECHANICAL (5VZ-FE) SERVICE DATA:




ENGINE MECHANICAL (5VZ-FE) SERVICE DATA:




ENGINE MECHANICAL (5VZ-FE) SERVICE DATA:

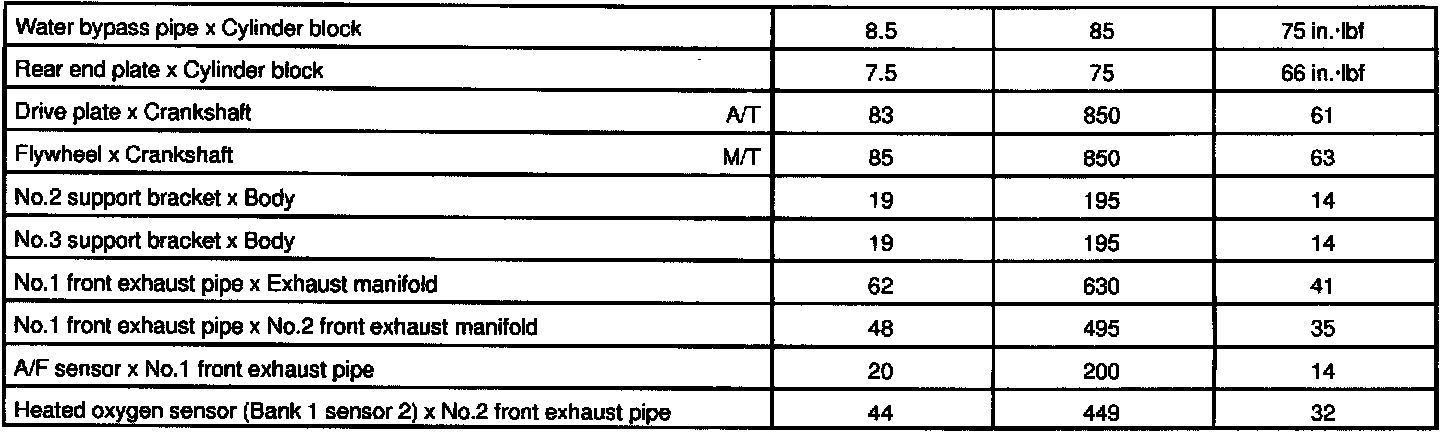

TORQUE SPECIFICATION:




TORQUE SPECIFICATION:
