Oil Pump Torque and Data

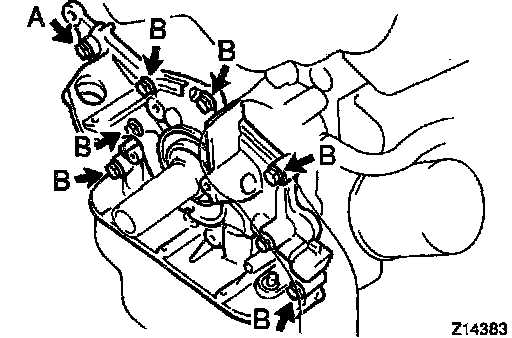

Install the oil pump with the 8 bolts, and ground strap.
Torque:
Bolt A:
20 Nm (200 kgf-cm, 15 ft. lbs.)
Bolt B:
42 Nm (420 kgf-cm, 31 ft. lbs.)
