Cylinder Block Assembly: Specifications

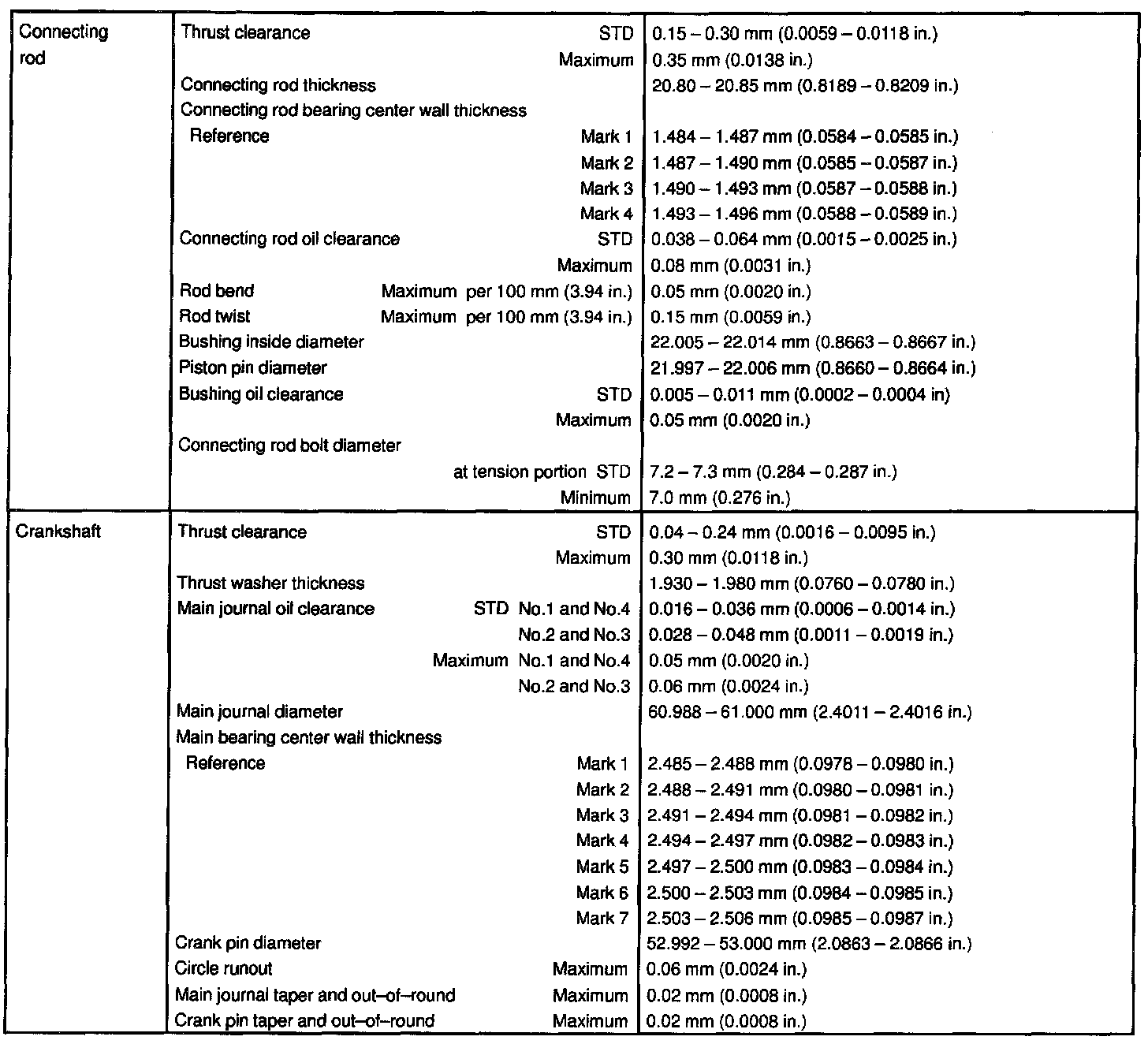

ENGINE MECHANICAL SERVICE DATA:




ENGINE MECHANICAL SERVICE DATA:




ENGINE MECHANICAL SERVICE DATA:

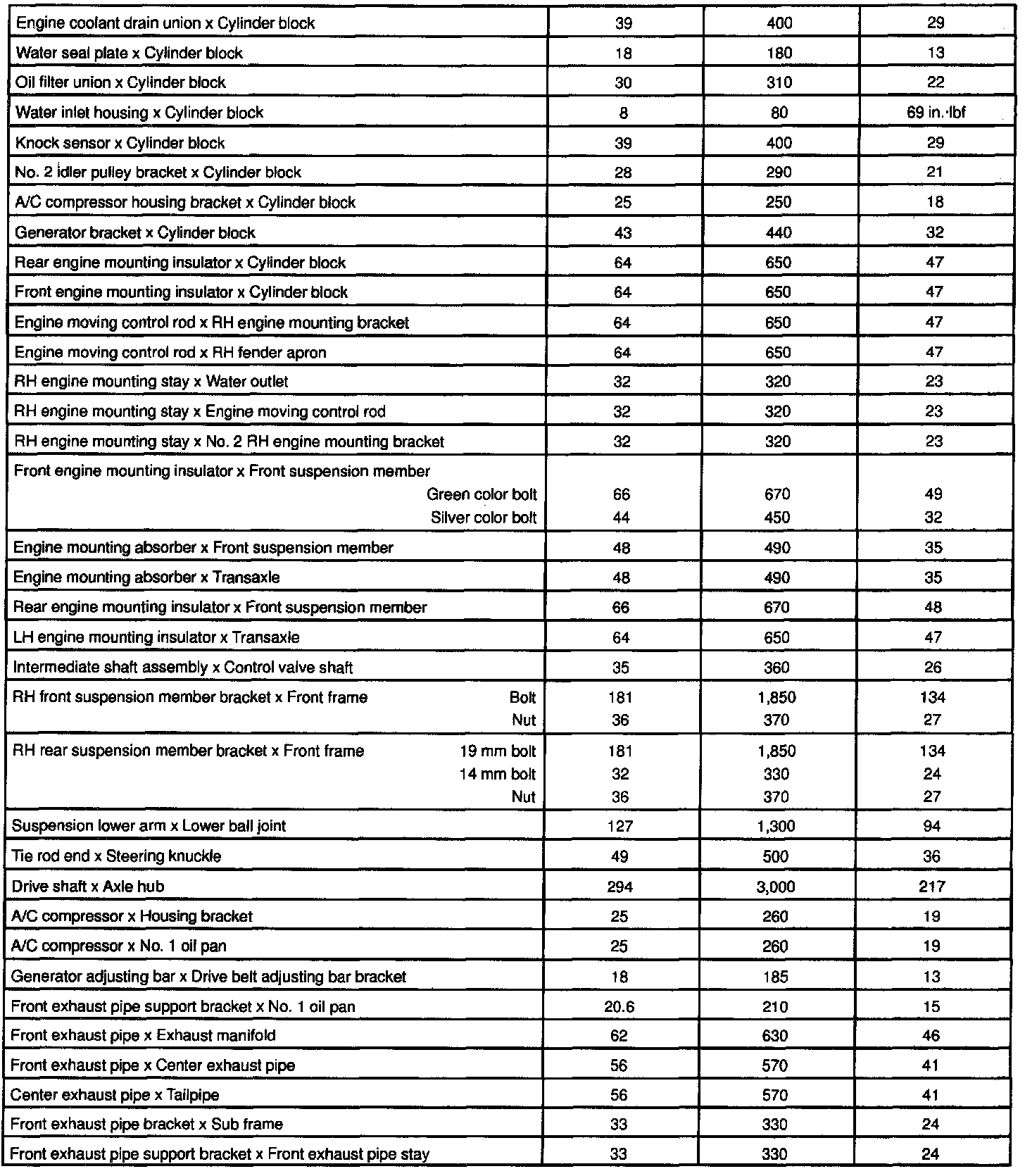

TORQUE SPECIFICATION:




TORQUE SPECIFICATION:
