Connector Locations
Engine Compartment:
Ground Location
EA Front Side or Right Fender
EB Surge Tank RH
EC Rear Side of Surge Tank
ED Front Side of Left Fender
EE Front Side of Left Fender
Connector Location
EA1 Cowl Wire and Engine Room No.2 Wire (Near the Engine Room R/B No.2)
EB1 Engine Wire and Sensor Wire
EC1 Engine Room Main Wire and Engine Room No.3 Wire (Near the Radiator Fan)
Instrument Panel - Column Shift:
Connector Location
IA1 Floor No.1 Wire and Instrument Panel Wire (Left Kick Panel)
IB1 Front Door LH Wire and Instrument Panel Wire (Left Kick Panel)
IB2 Front Door LH Wire and Instrument Panel Wire (Left Kick Panel)
IC1 Cowl Wire and Instrument Panel Wire (Left Kick Panel)
ID1 Cowl Wire and Instrument Panel Wire (Left Kick Panel)
ID2 Cowl Wire and Instrument Panel Wire (Left Kick Panel)
IE1 Engine Room Main Wire and Cowl Wire (Behind the Driver Side J/B)
IF1 Engine Room Main Wire and Cowl Wire (Left Side of Instrument Panel)
IF2 Engine Room Main Wire and Cowl Wire (Left Side of Instrument Panel)
IF3 Engine Room Main Wire and Cowl Wire (Left Side of Instrument Panel)
IG1 Roof Wire and Cowl Wire (Front Left Pillar)
Instrument Panel - Column Shift:
Connector Location
IH1
II1 Engine Wire and Cowl Wire (Behind the Glove Box)
II2 Engine Wire and Cowl Wire (Behind the Glove Box)
IJ1 Engine Wire and Instrument Panel Wire (Right Kick Panel)
IK1 Floor No.2 Wire and Cowl Wire (Right Kick Panel)
IK2 Floor No.2 Wire and Cowl Wire (Right Kick Panel)
IL1 Cowl Wire and Instrument Panel Wire (Right Kick Panel)
IM1 Floor No.2 Wire and Instrument Panel Wire (Right Kick Panel)
IM2 Floor No.2 Wire and Instrument Panel Wire (Right Kick Panel)
IM3 Floor No.2 Wire and Instrument Panel Wire (Right Kick Panel)
IN1 Front Door RH Wire and Instrument Panel Wire (Right Kick Panel)
Instrument Panel - Floor Shift:
Connector Location
IA1 Floor No.1 Wire and Instrument Panel Wire (Left Kick Panel)
IB1 Front Door LH Wire and Instrument Panel Wire (Left Kick Panel)
IB2 Front Door LH Wire and Instrument Panel Wire (Left Kick Panel)
IC1 Cowl Wire and Instrument Panel Wire (Left Kick Panel)
ID1 Cowl Wire and Instrument Panel Wire (Left Kick Panel)
ID2 Cowl Wire and Instrument Panel Wire (Left Kick Panel)
IE1 Engine Room Main Wire and Cowl Wire (Behind the Driver Side J/B)
IF1 Engine Room Main Wire and Cowl Wire (Left Side of Instrument Panel)
IF2 Engine Room Main Wire and Cowl Wire (Left Side of Instrument Panel)
IF3 Engine Room Main Wire and Cowl Wire (Left Side of Instrument Panel)
IG1 Roof Wire and Cowl Wire (Front Left Pillar)
Instrument Panel - Floor Shift:
Connector Location
II1 Engine Wire and Cowl Wire (Behind the Glove Box)
II2 Engine Wire and Cowl Wire (Behind the Glove Box)
IJ1 Engine Wire and Instrument Panel Wire (Right Kick Panel)
IK1 Floor No.2 Wire and Cowl Wire (Right Kick Panel)
IK2 Floor No.2 Wire and Cowl Wire (Right Kick Panel)
IL1 Cowl Wire and Instrument Panel Wire (Right Kick Panel)
IM1 Floor No.2 Wire and Instrument Panel Wire (Right Kick Panel)
IM2 Floor No.2 Wire and Instrument Panel Wire (Right Kick Panel)
IM3 Floor No.2 Wire and Instrument Panel Wire (Right Kick Panel)
IN1 Front Door RH Wire and Instrument Panel Wire (Right Kick Panel)
IO1 Floor No.3 Wire and Floor No.1 Wire (Under the Console Box)

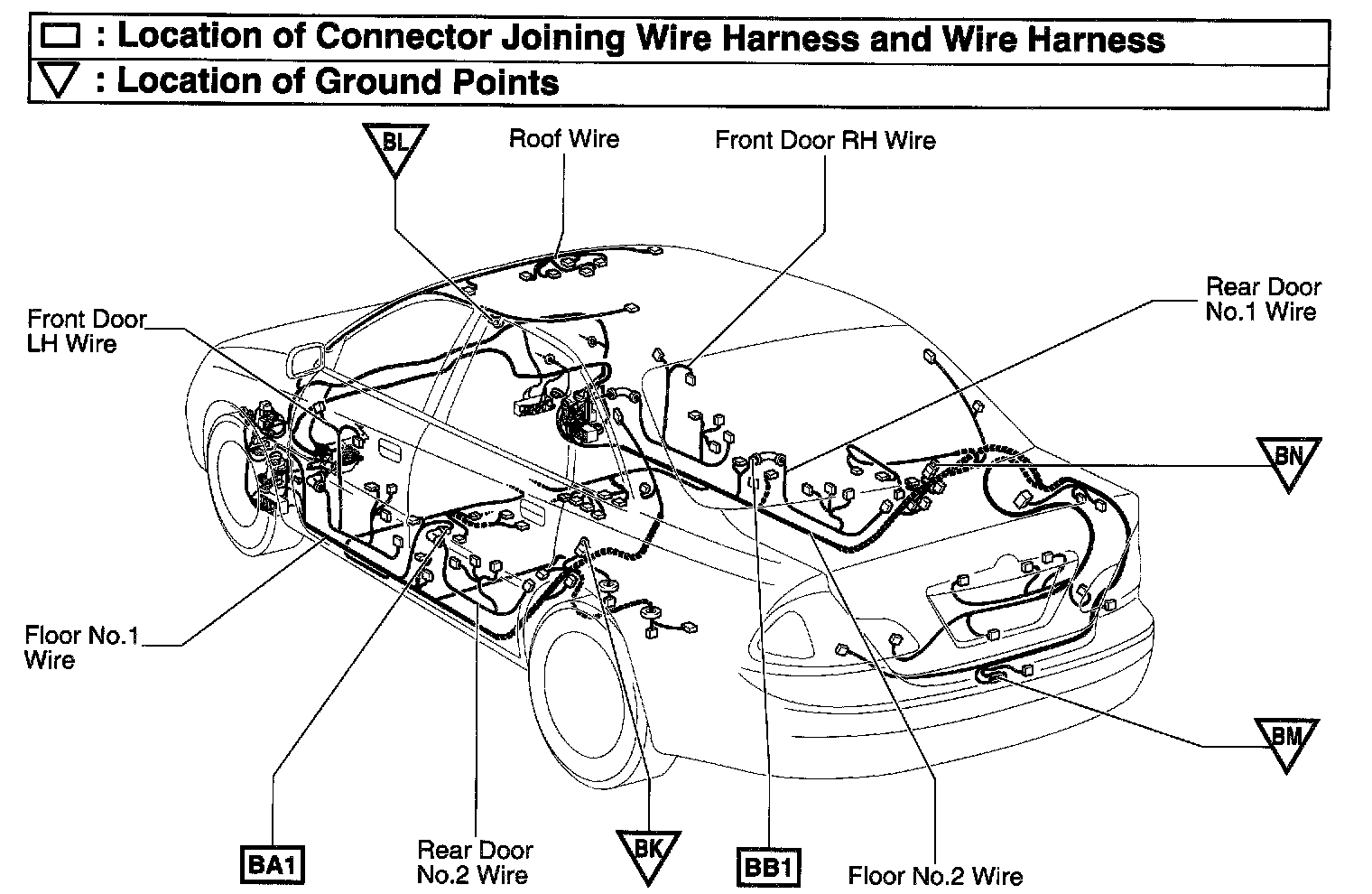

Body:
Ground Location
BK Rear Quarter Inner LH
BL Roof Left
BM Back Panel Center
BN Rear Quarter Inner RH
Connector Location
BA1 Rear Door No.2 Wire and Floor No.1 Wire (Under the Left Center Pillar)
BB1 Rear Door No.1 Wire and Floor No.2 Wire (Under the Right Center Pillar)
Body - Column Shift:
Connector Location
BC1 Floor No.1 Wire and Seat No.1 Wire (Under the Driver's Seat)
BD1 Floor No.2 Wire and Seat No.2 Wire (Under the Front Passenger's Seat)

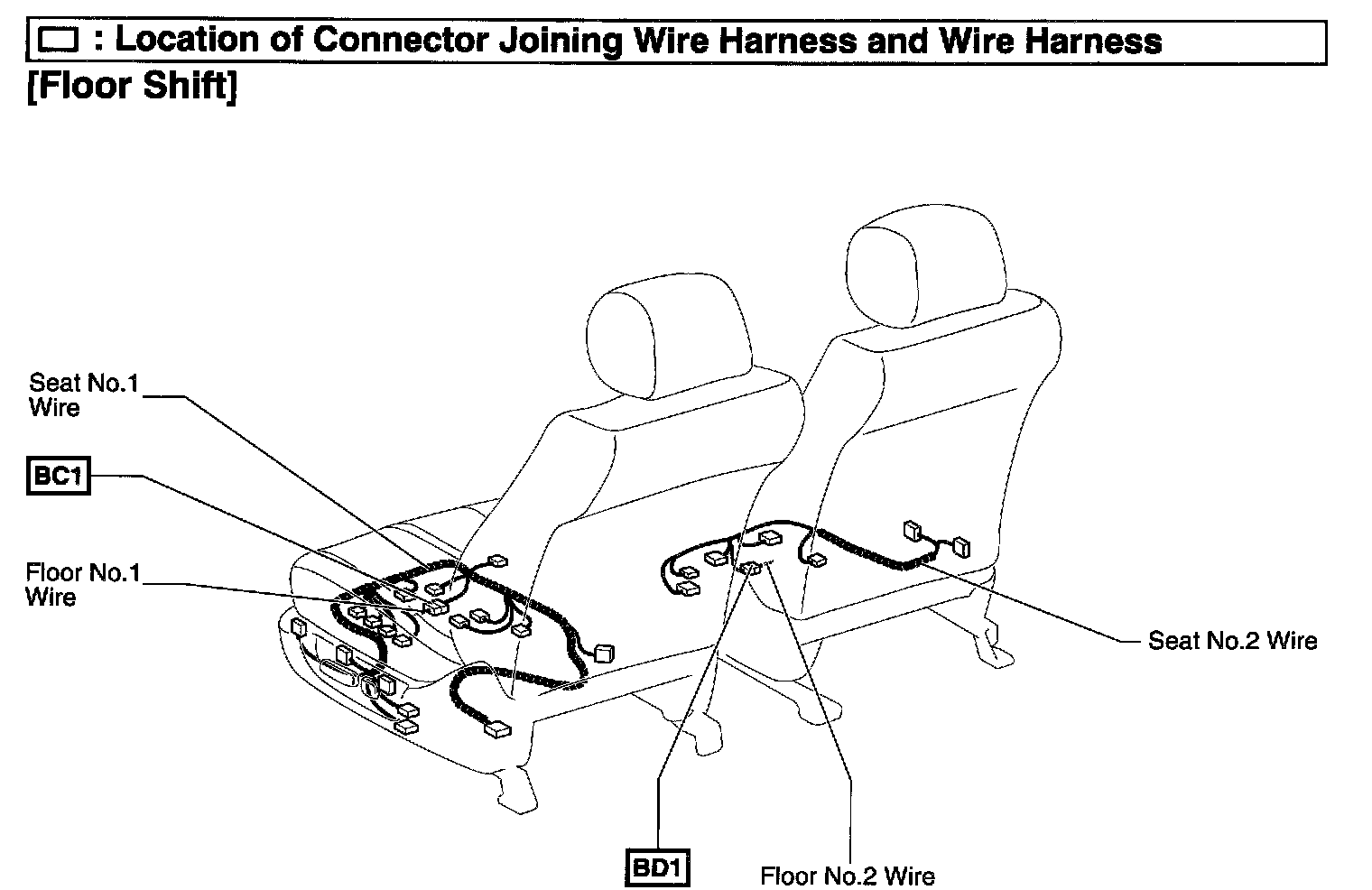

Body - Floor Shift:
Connector Location
BC1 Floor No.1 Wire and Seat No.1 Wire (Under the Driver's Seat)
BD1 Floor No.2 Wire and Seat No.2 Wire (Under the Front Passenger's Seat)
