Power Seat
Power Seat
REPLACEMENT

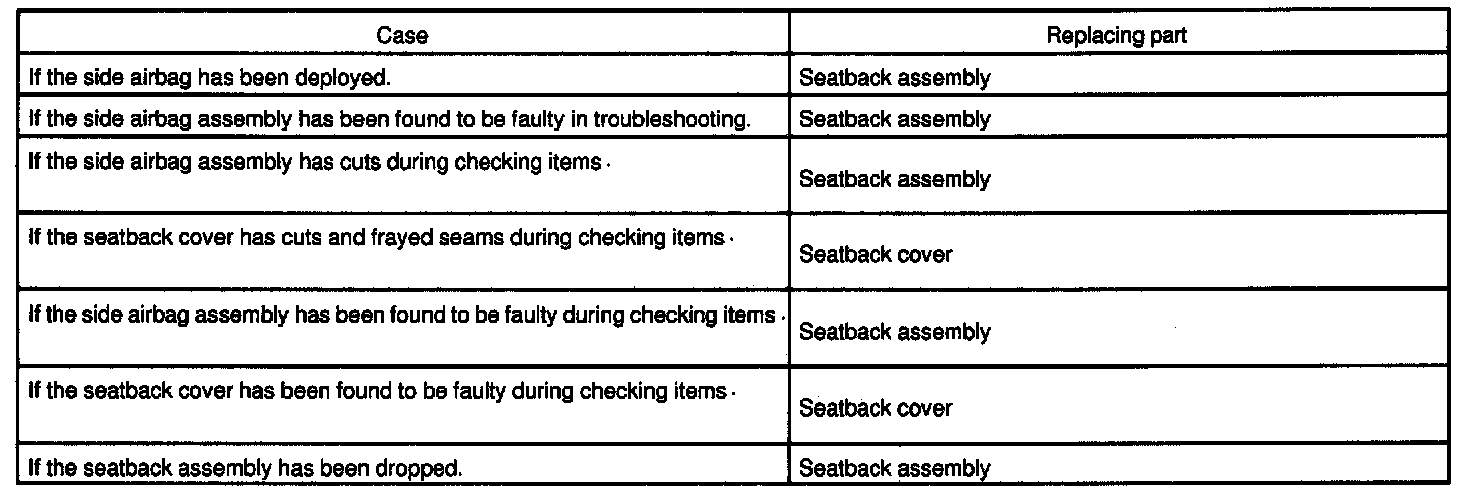

In the following cases, replace the seatback assembly or seatback cover.
CAUTION:
Be sure to follow the correct procedure for removal and Installation of the seatback assembly.
