Engine Compartment
Engine Compartment

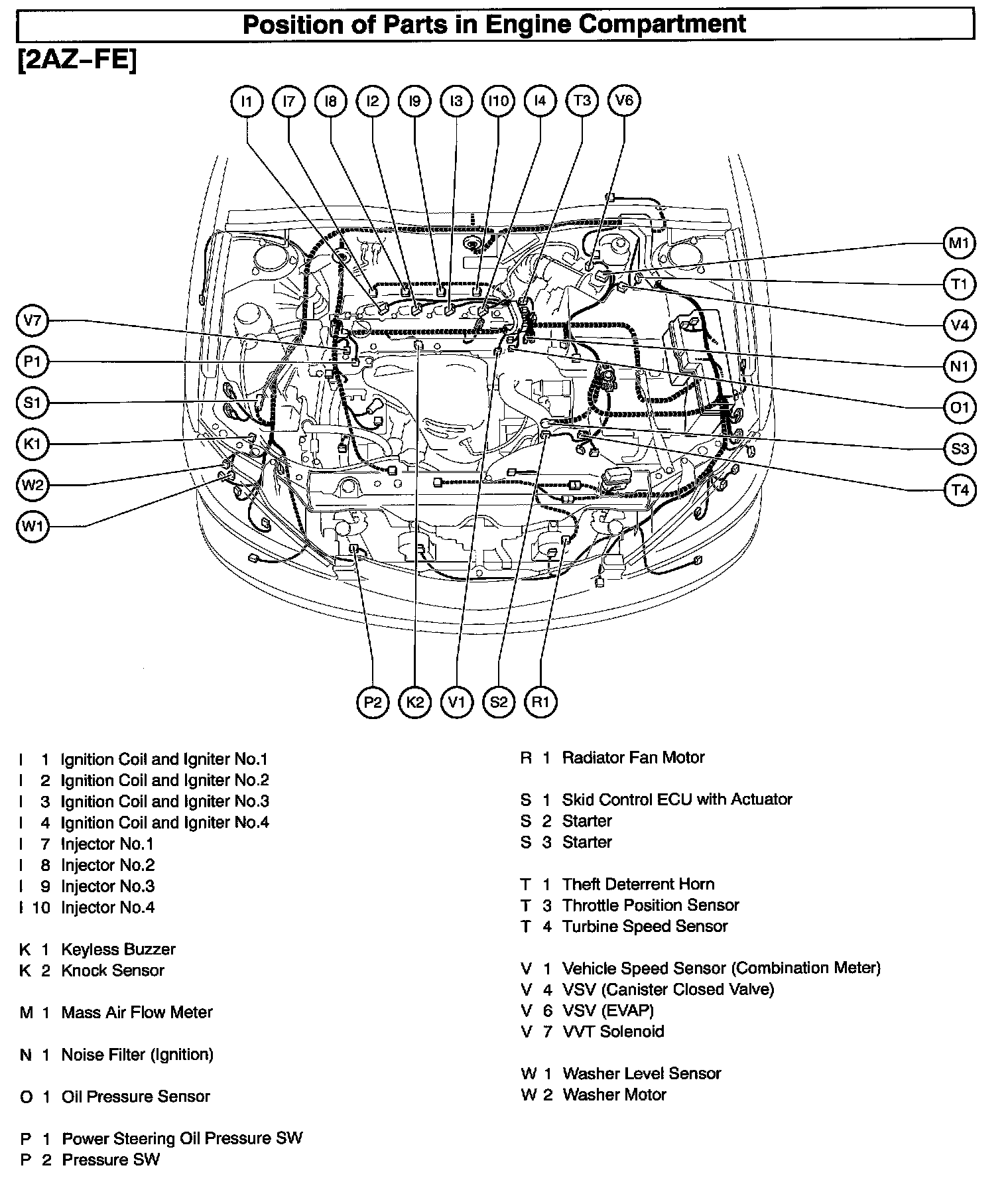

Position Of Parts Engine Compartment (2AZ-FE) Part 1:

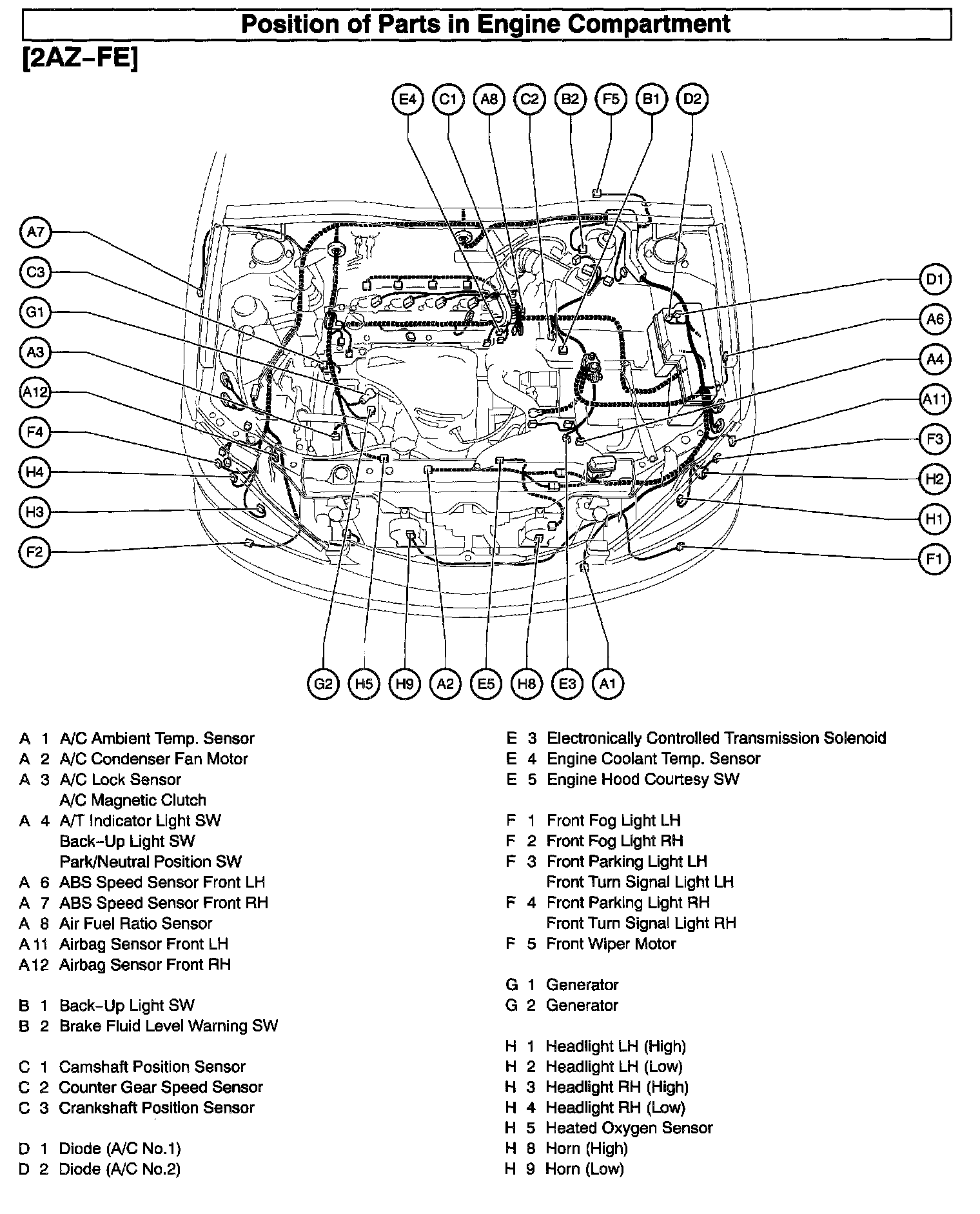

Position Of Parts Engine Compartment (2AZ-FE) Part 2:
