Fuel Tank
Fuel Tank

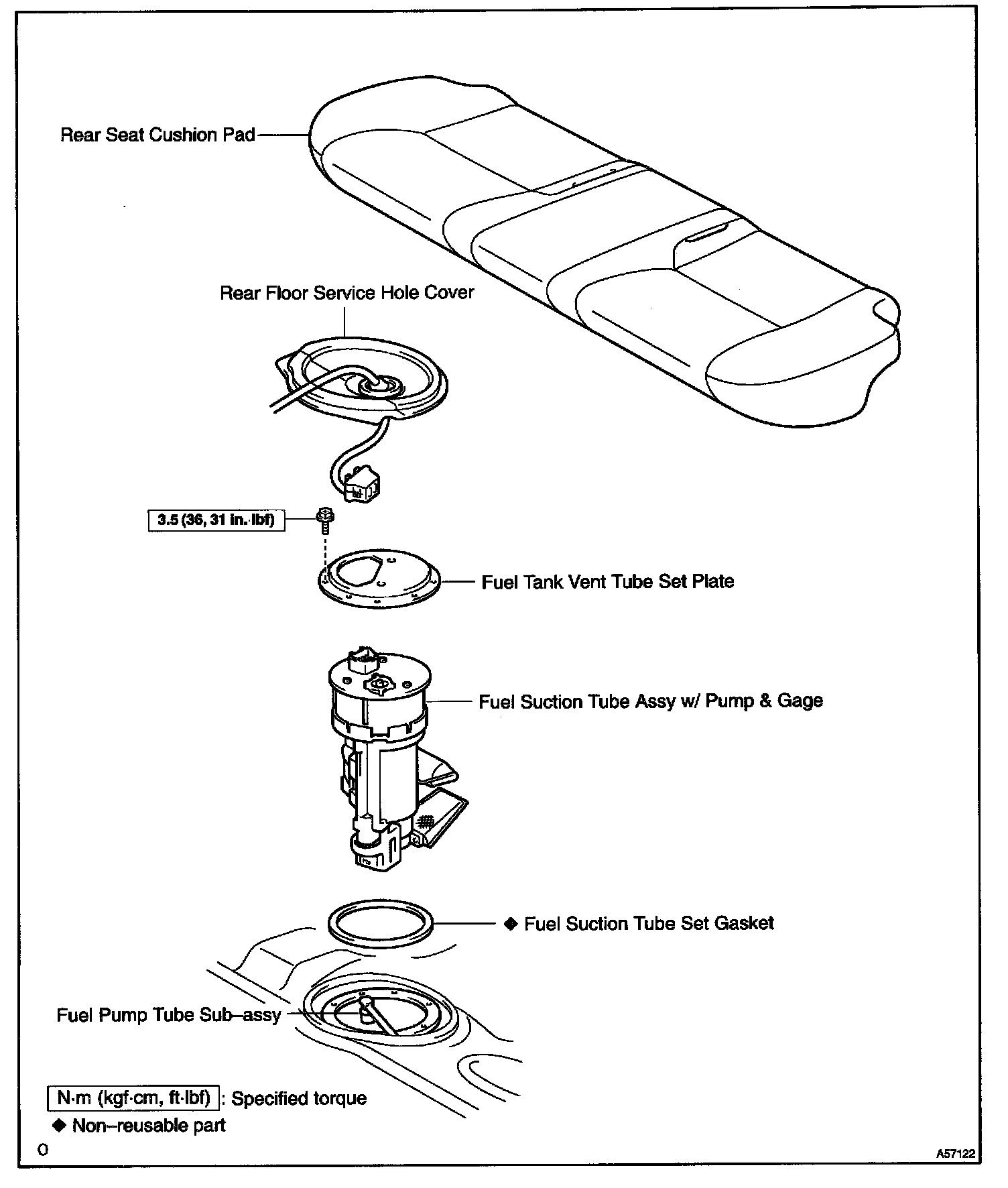

Fuel Tank Assy (2AZ-FE) Part 1:

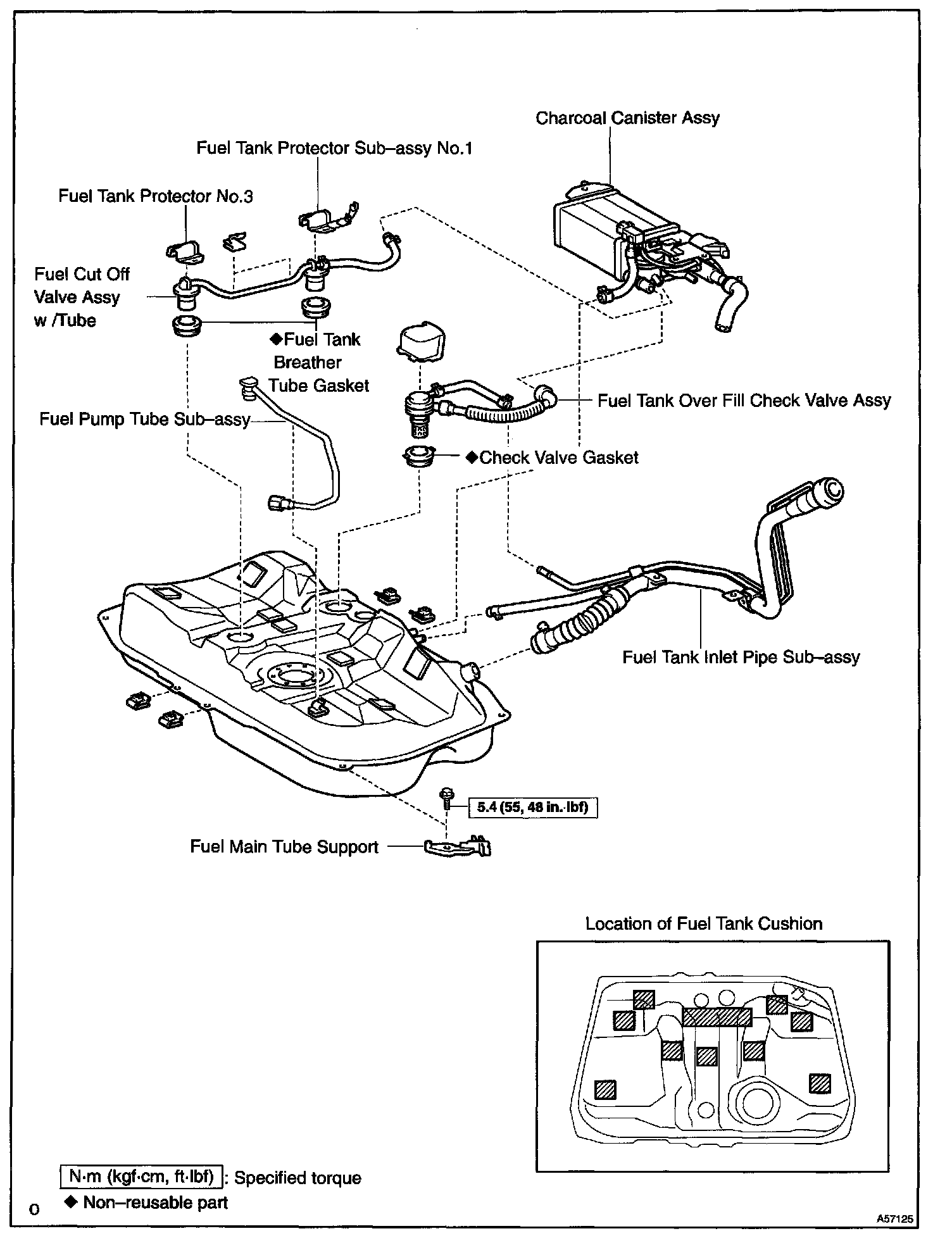

Fuel Tank Assy (2AZ-FE) Part 2:
Fuel Tank Assy (2AZ-FE) Part 3:
