Air Conditioning Control Assembly

Air Conditioner Control Assembly:

OVERHAUL

1. REMOVE AIR CONDITIONER CONTROL ASSEMBLY
2. REMOVE HEATER CONTROL HOUSING SUB-ASSY

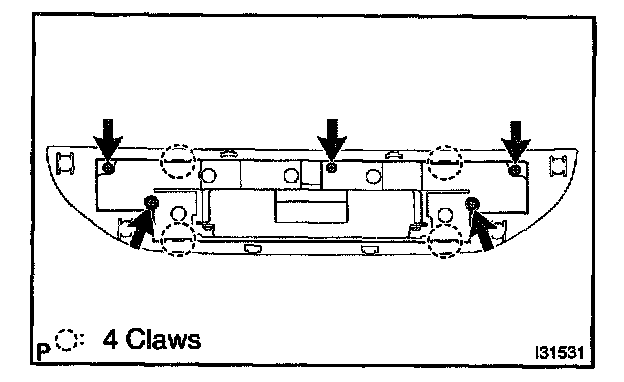

a. Release the 4 fitting claws, remove the 5 screws.

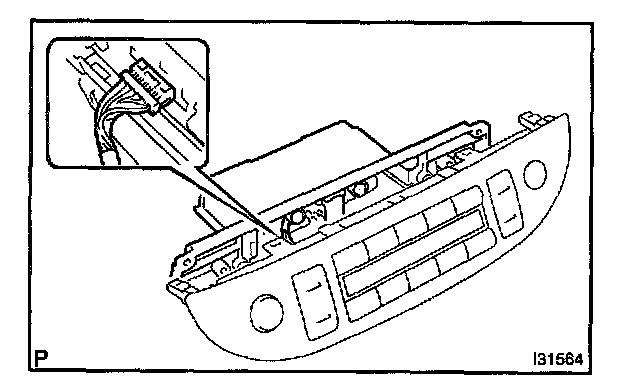

b. Disconnect the connector, remove the heater control housing sub-assy.

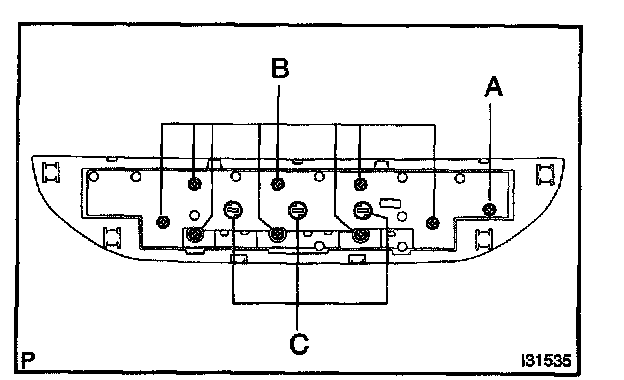

3. REMOVE AIR CONDITIONING CONTROL BULB
a. Remove the air conditioning control bulb from the heater control base sub-assy.




4. REMOVE HEATER CONTROL BASE SUB-ASSY

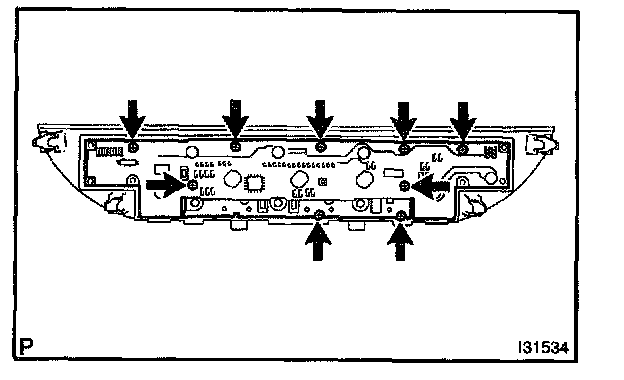

a. Remove the 9 screws and heater control base sub-assy.

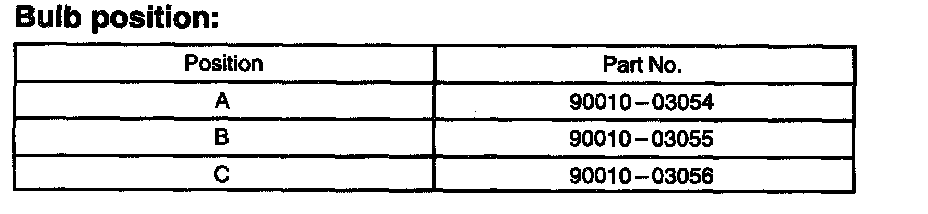

5. INSTALL AIR CONDITIONING CONTROL BULB




a. Install the air conditioning control bulb to the heater control base sub-assy.
