Service Data

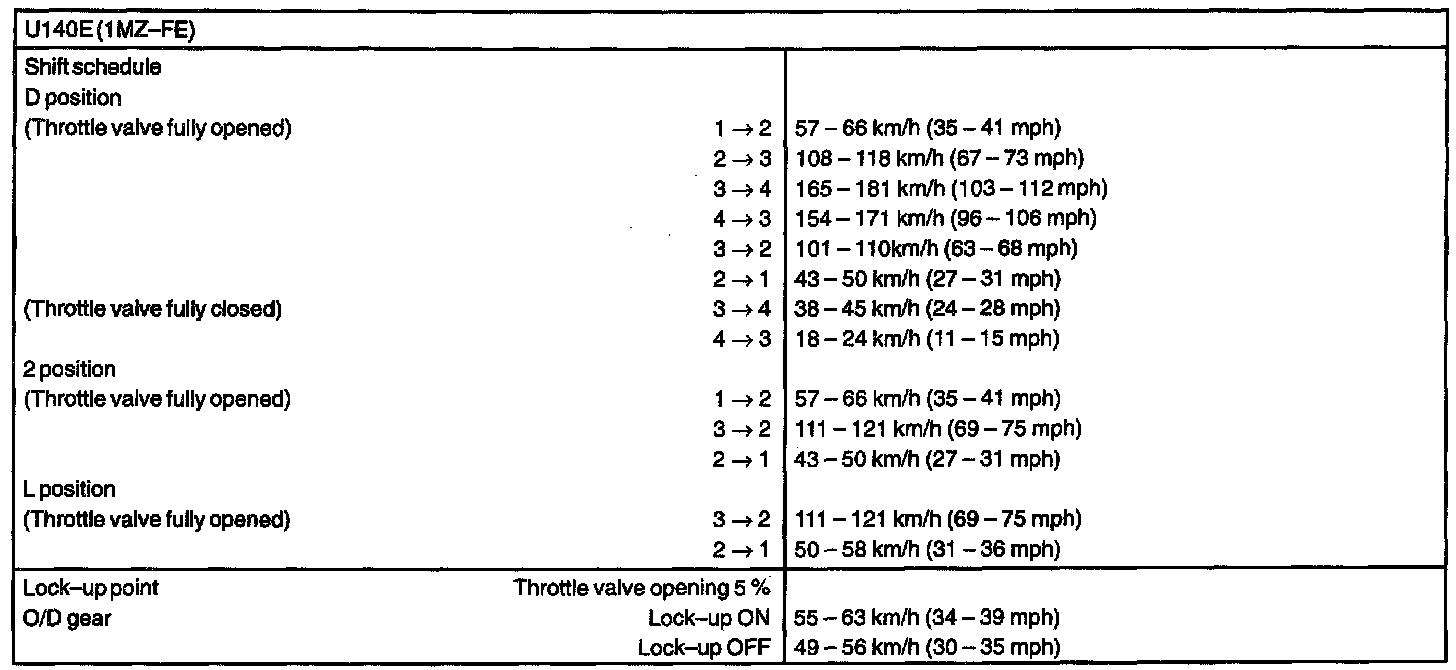

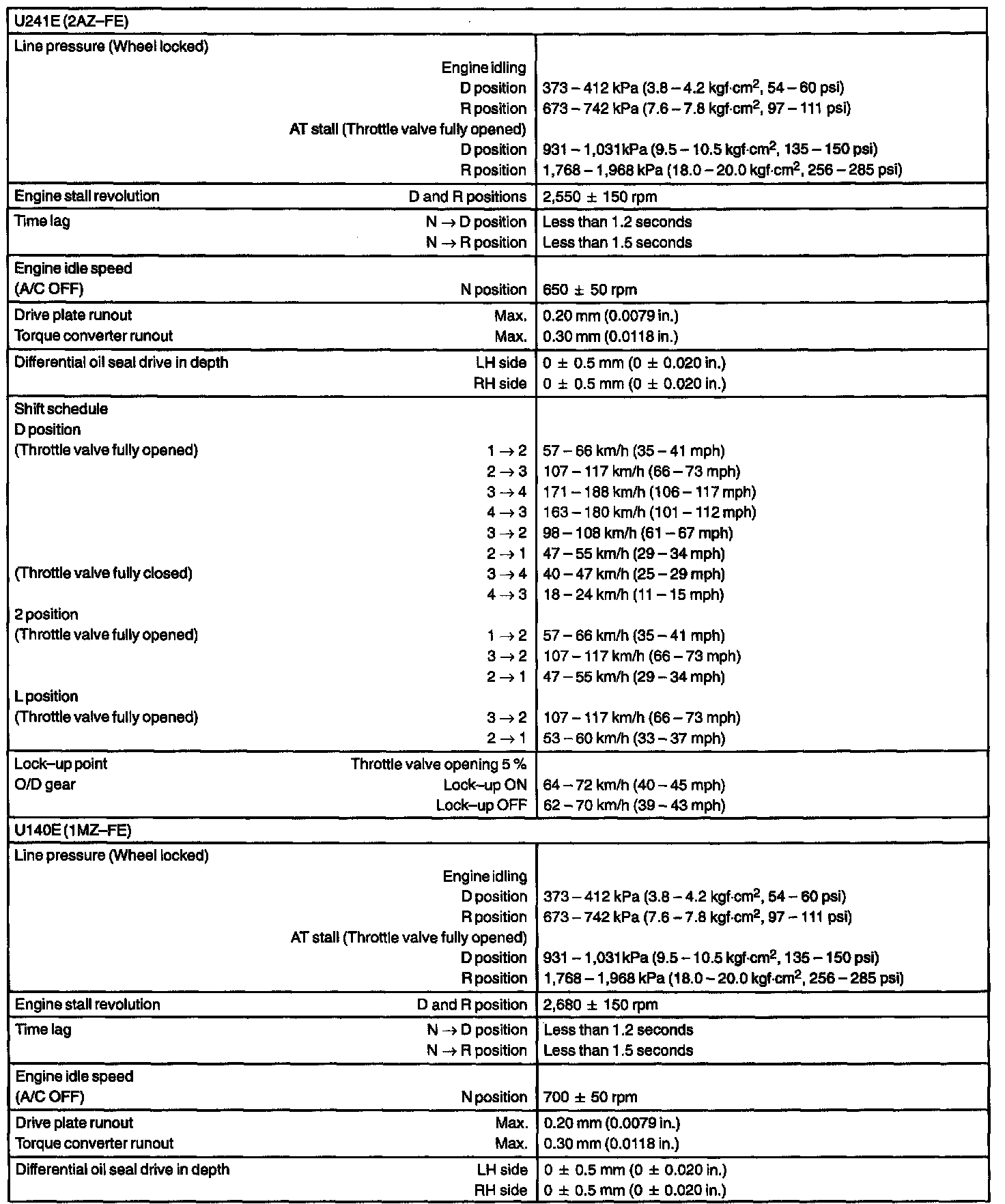

AUTOMATIC TRANSMISSION / TRANSAXLE SERVICE DATA:




AUTOMATIC TRANSMISSION / TRANSAXLE SERVICE DATA:

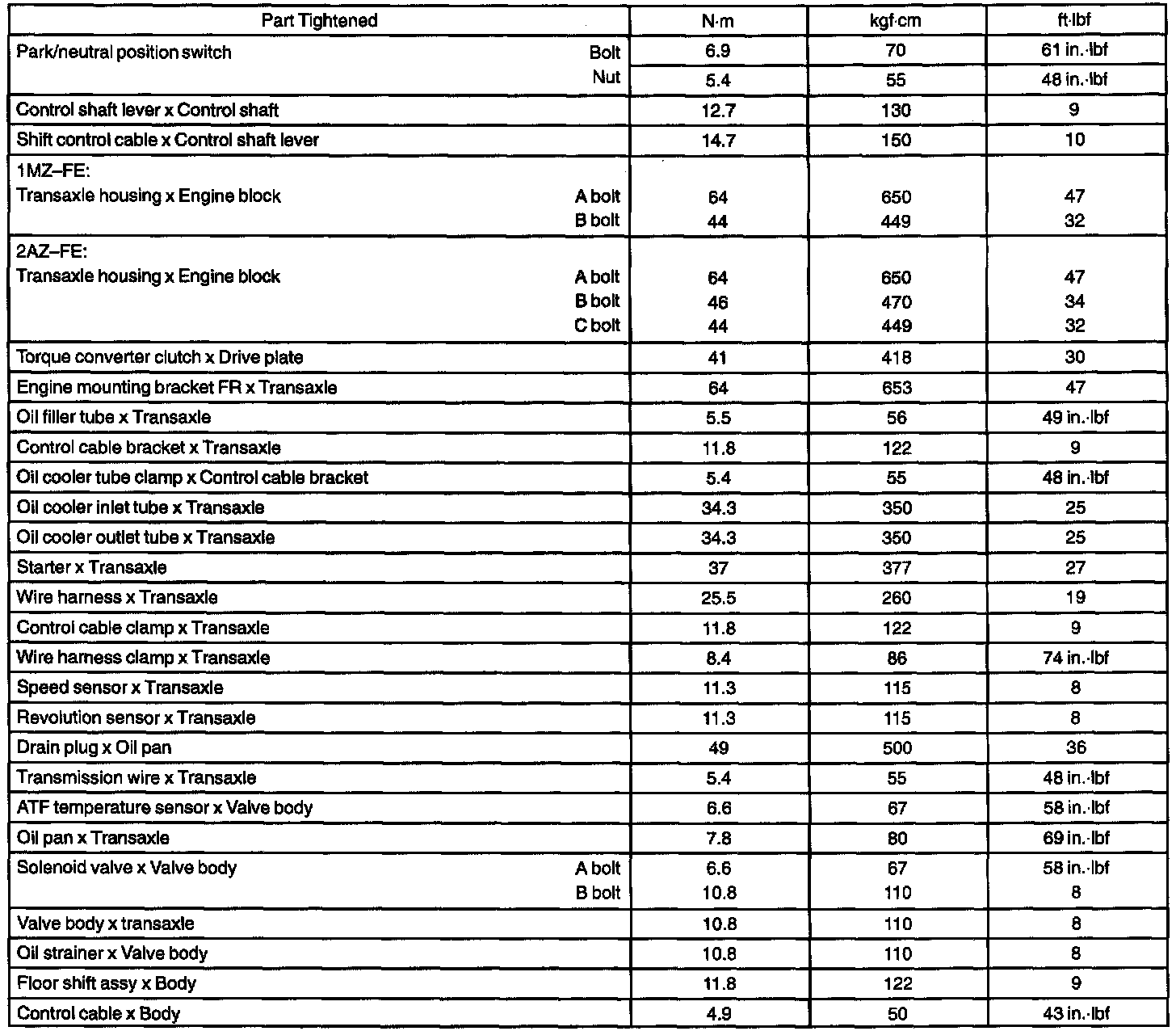

TORQUE SPECIFICATION:
