No Sound Is Heard From Speaker In All Modes
No Sound Is Heard From Speaker In All Modes

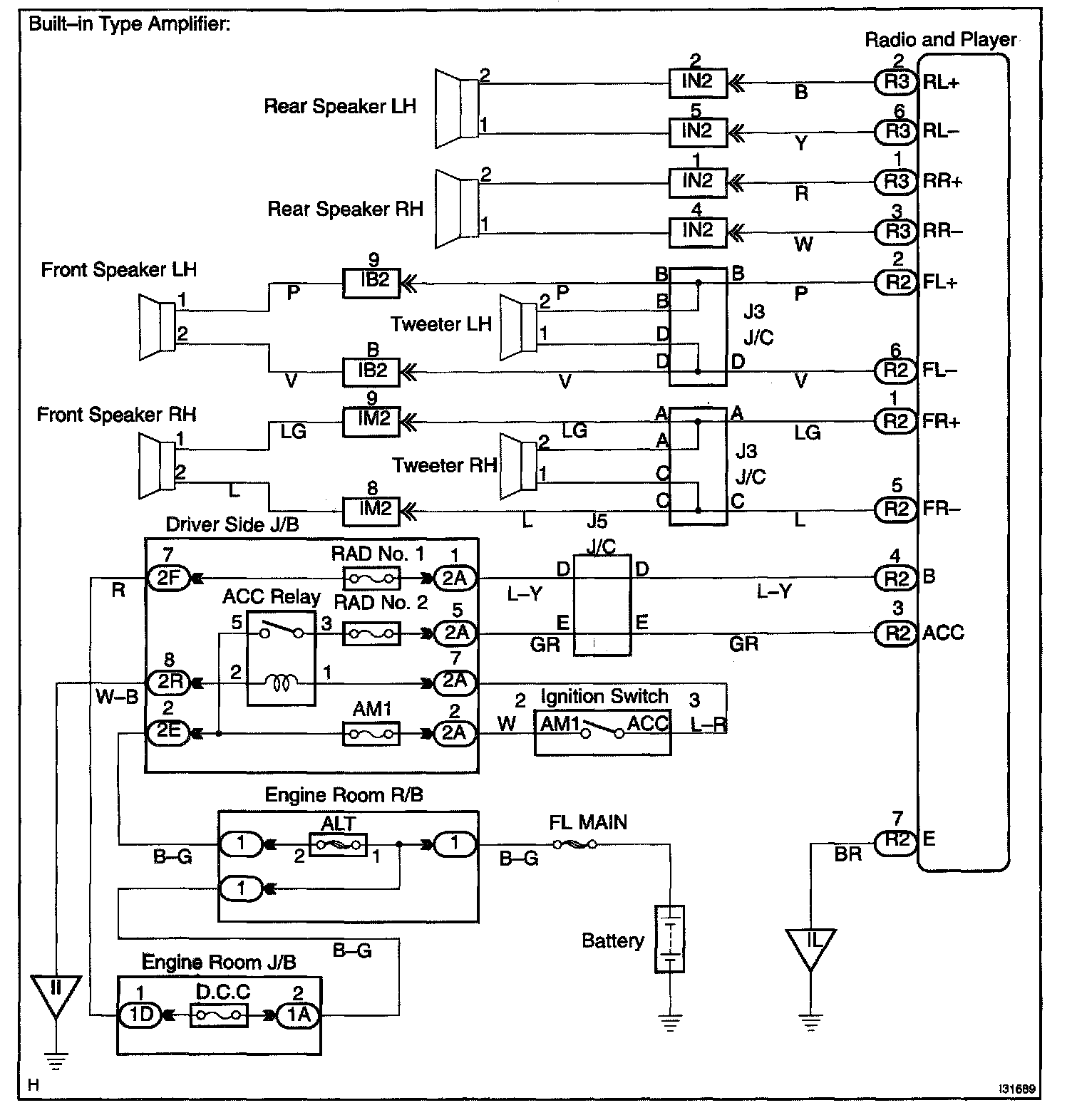

Wiring Diagram - Built-in Type Amplifier:
Wiring Diagram - Separate Type Amplifier:
Step 1 - 4:
Step 5 - 7:
INSPECTION PROCEDURE
