Camry LE Sedan V6-3.0L (1MZ-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Components
>>
Engine Compartment
Engine Compartment

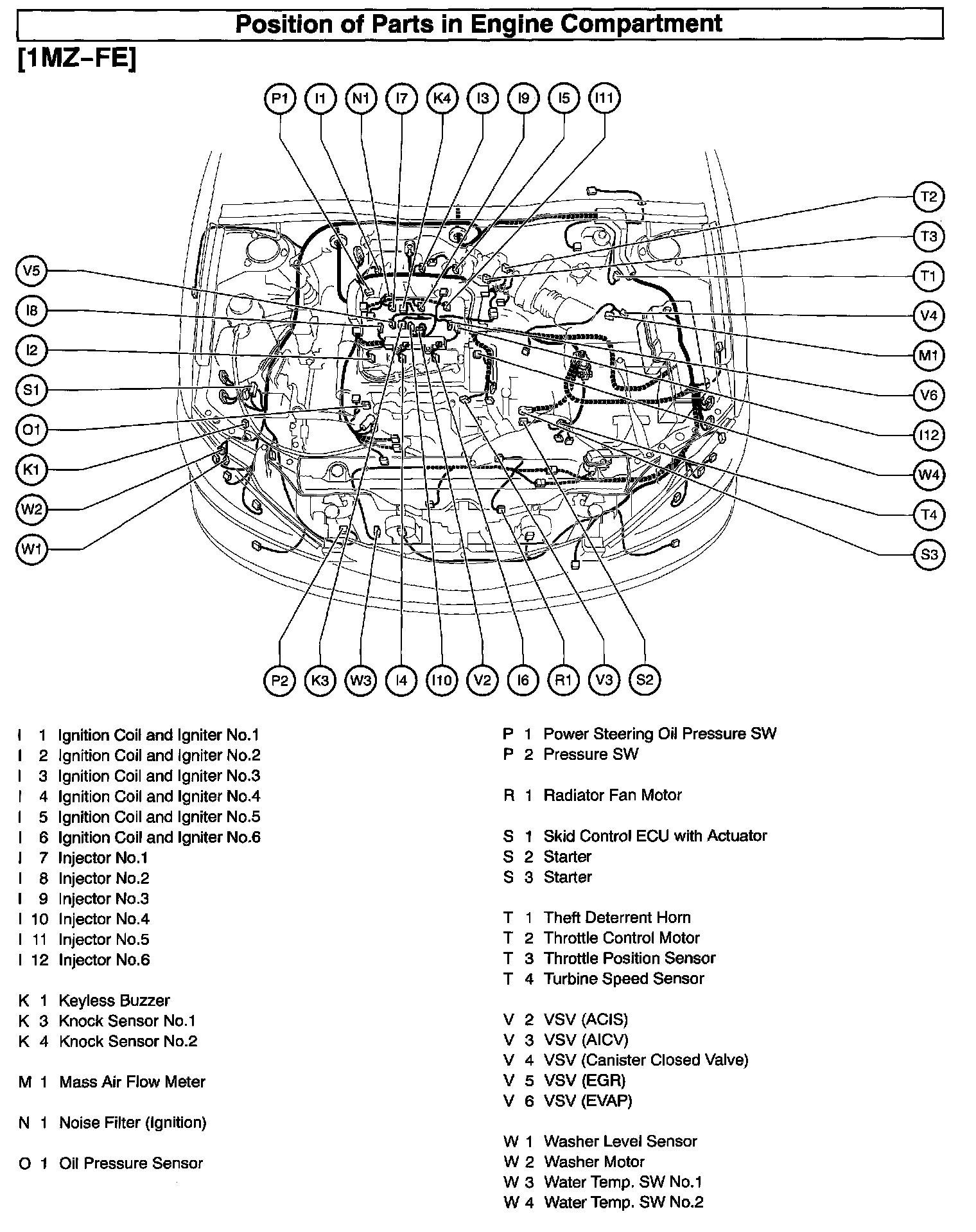

Position Of Parts Engine Compartment (1MZ-FE) Part 1:

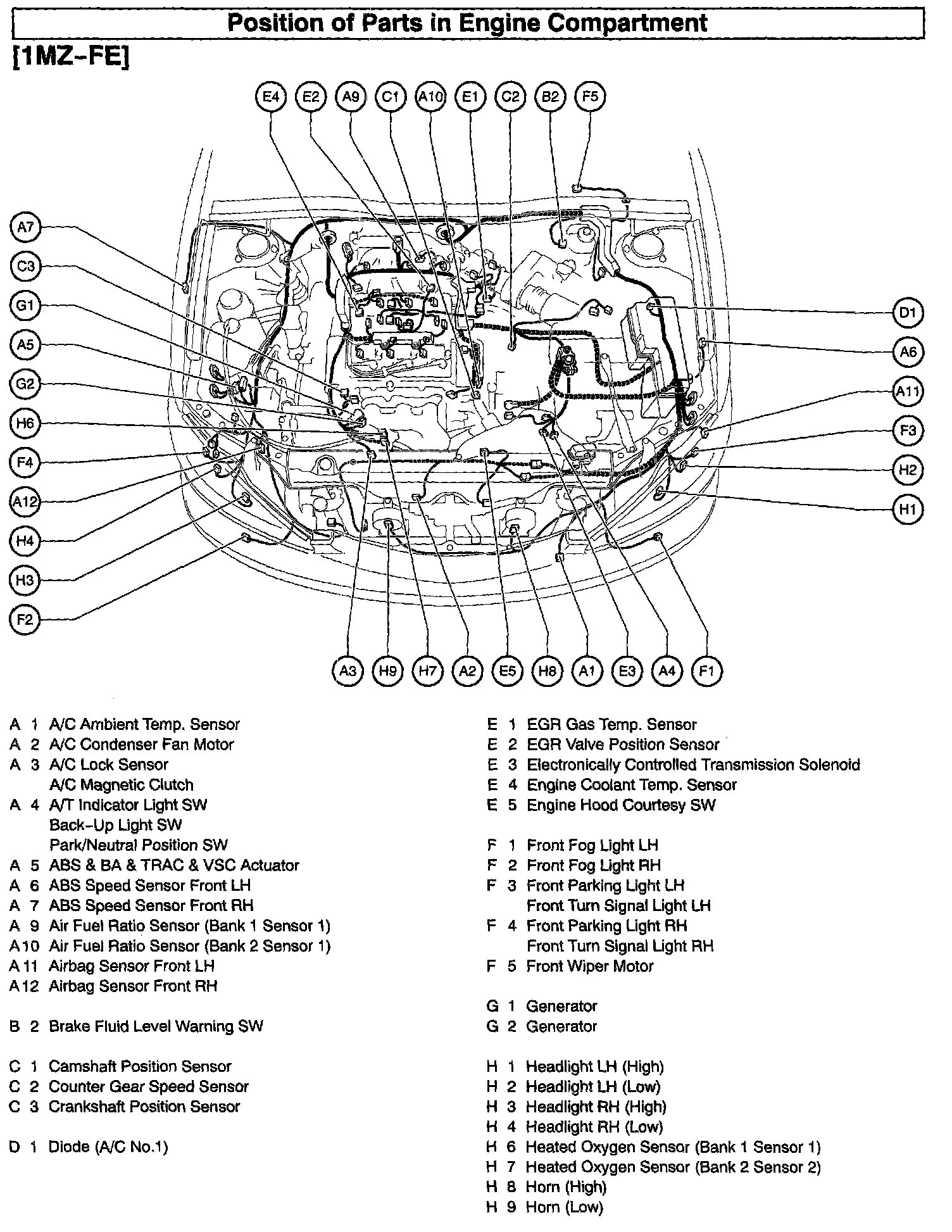

Position Of Parts Engine Compartment (1MZ-FE) Part 2:
