Engine Compartment

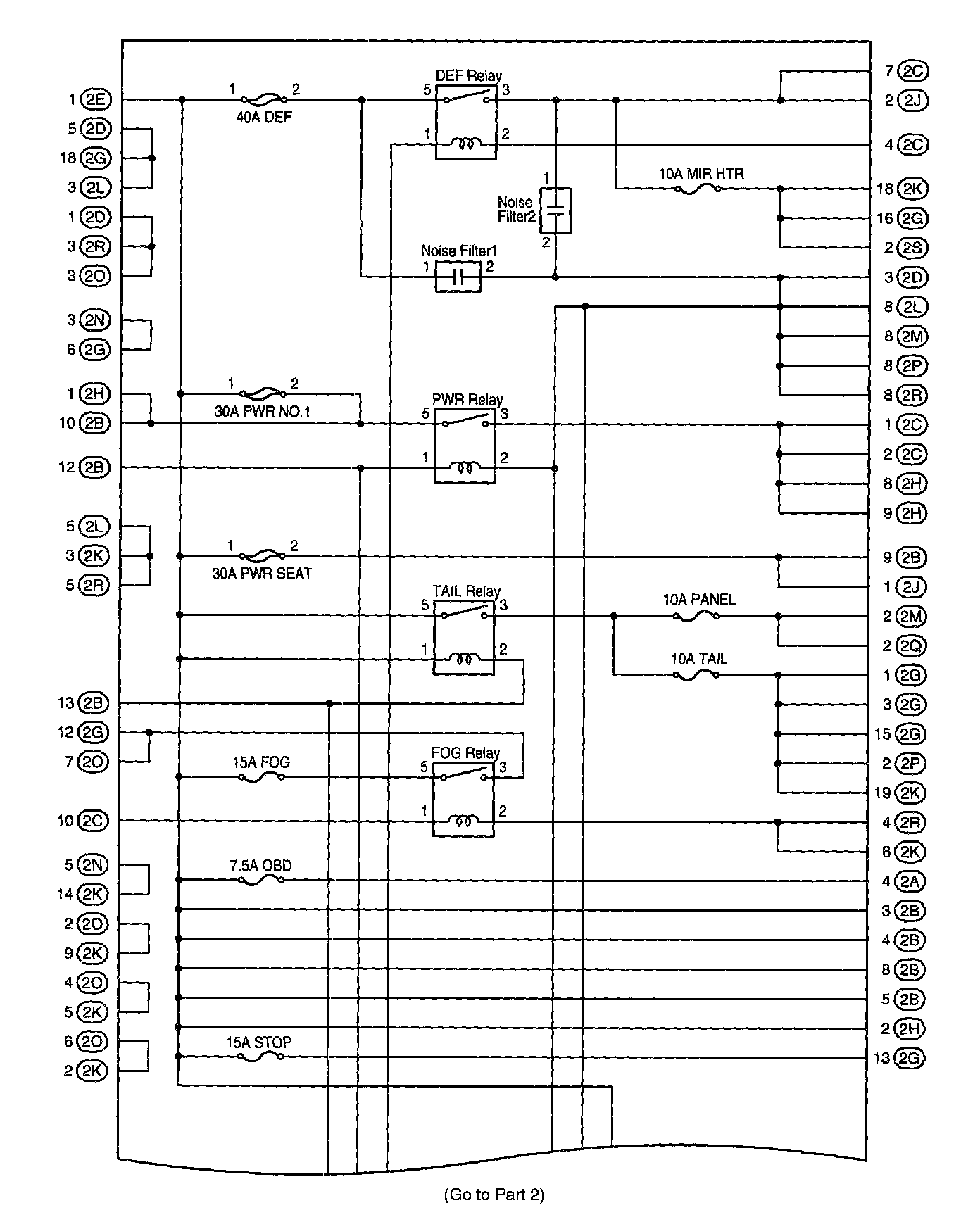

Engine Room J/B Inner Circuit:



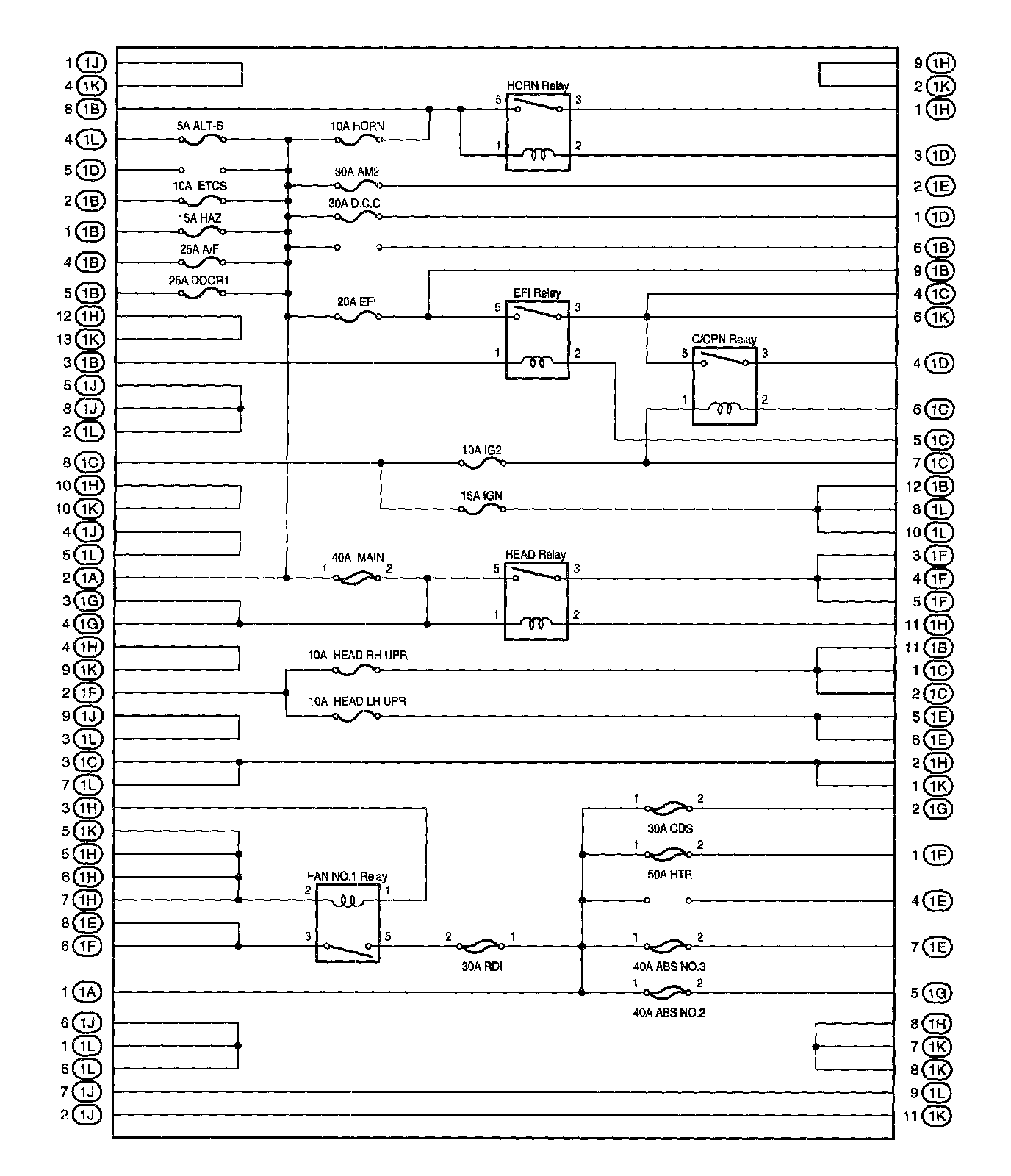

Driver Side J/B Inner Circuit Part 1:

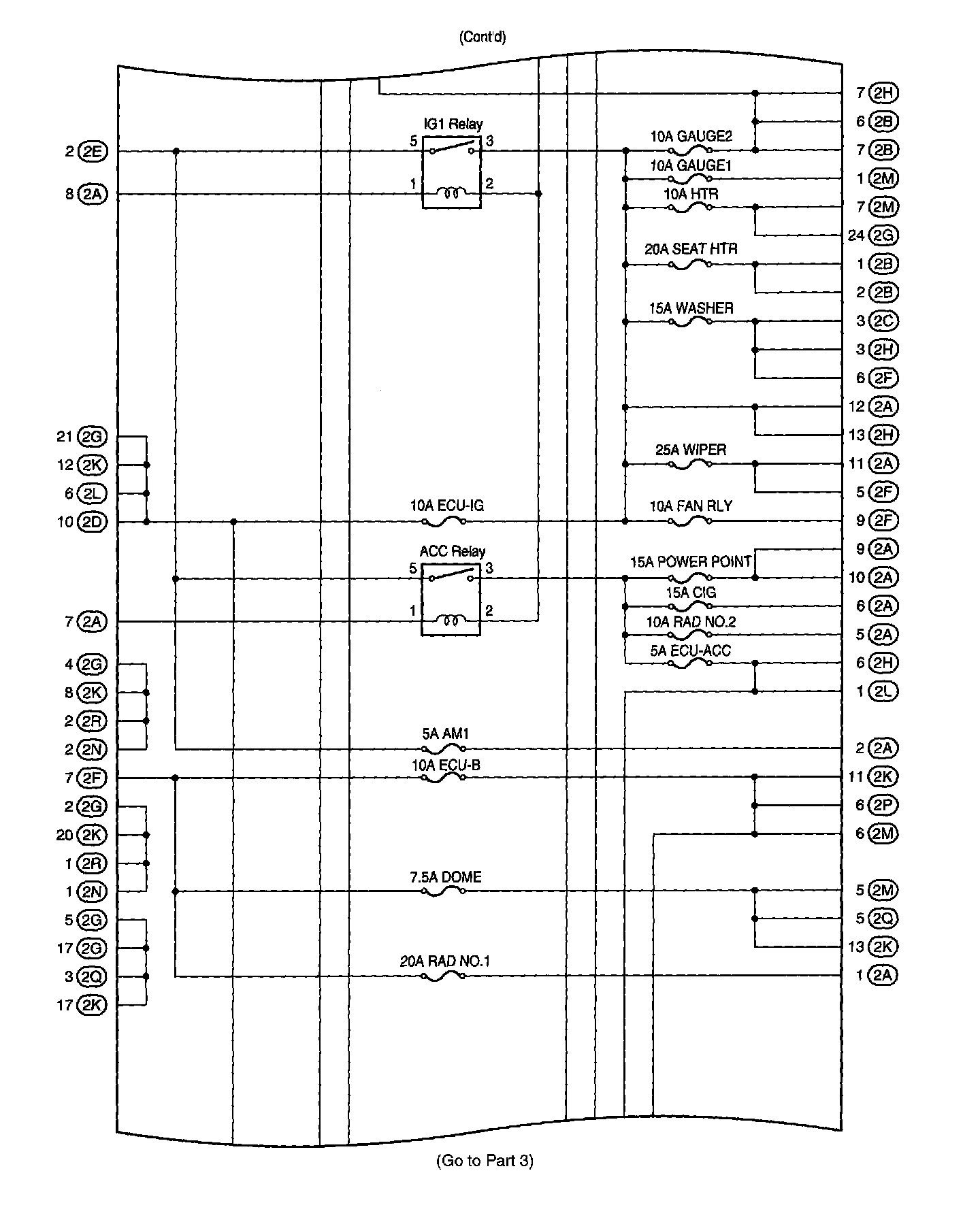

Driver Side J/B Inner Circuit Part 2:

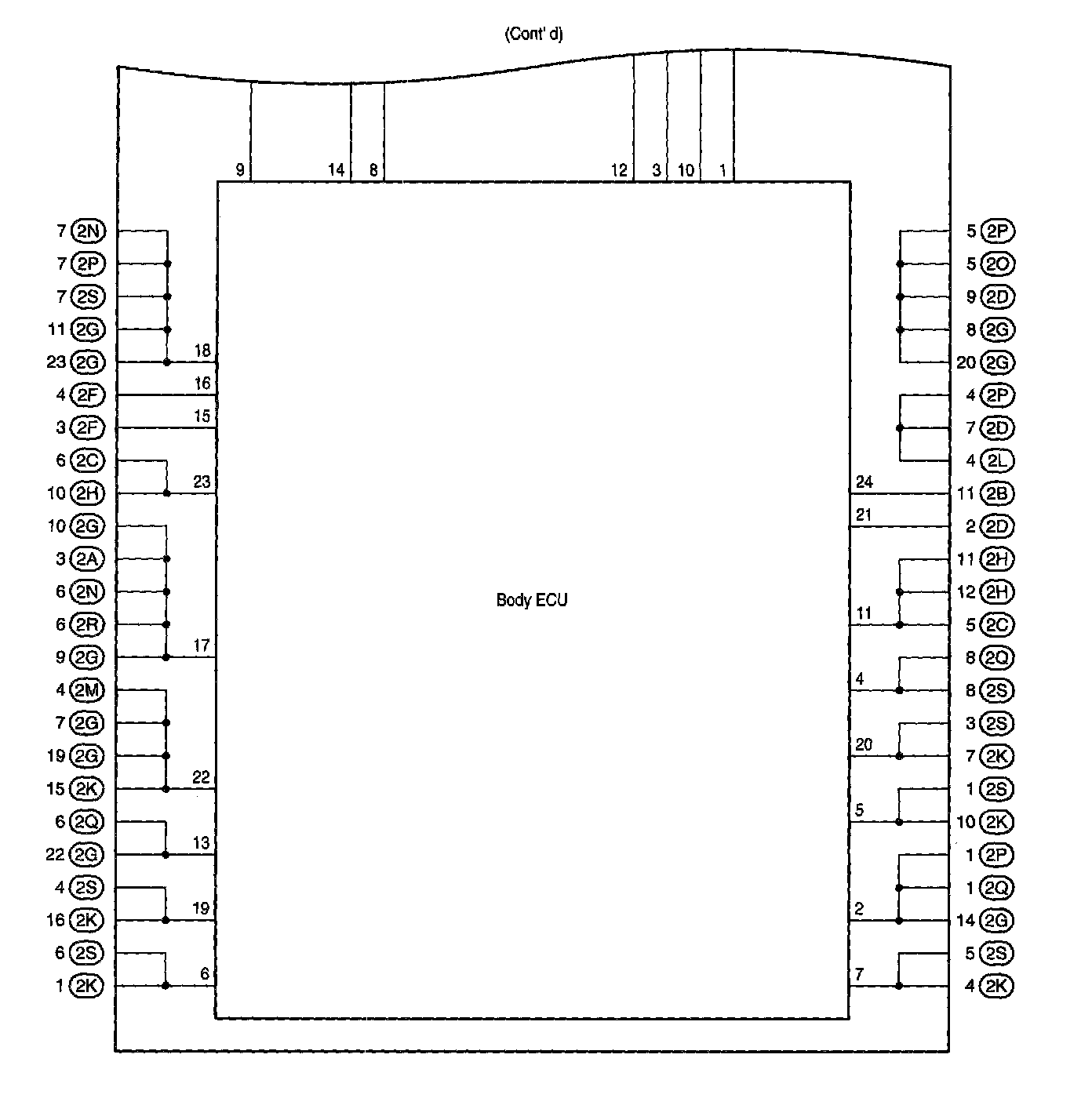

Driver Side J/B Inner Circuit Part 3:
