Ground Locations

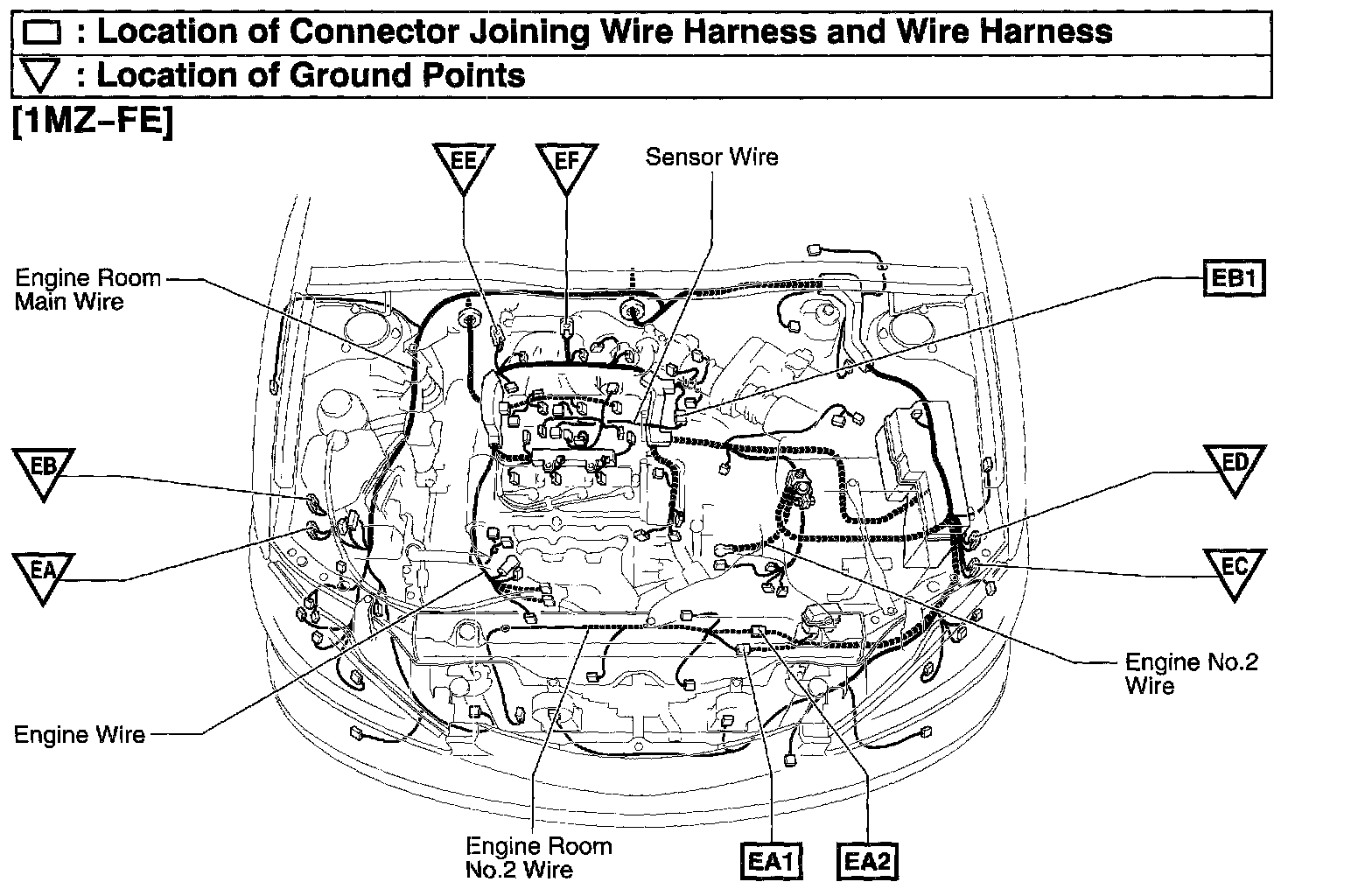

Engine Compartment:

Ground Location
EA Right Fender
EB Right Fender
EC Left Fender
ED Left Fender
EE Surge Tank RH
EF Rear Side of Surge Tank
EG Left Side of cylinder Head
EH Intake Side of Cylinder Block

Connector Location
EA1 Engine Room Main Wire and Engine Room No.2 Wire (Radiator Side Support LH)
EA2 Engine Room Main Wire and Engine Room No.2 Wire (Radiator Side Support LH)
EB1 Engine Wire and Sensor Wire (Left Back of Cylinder Head)

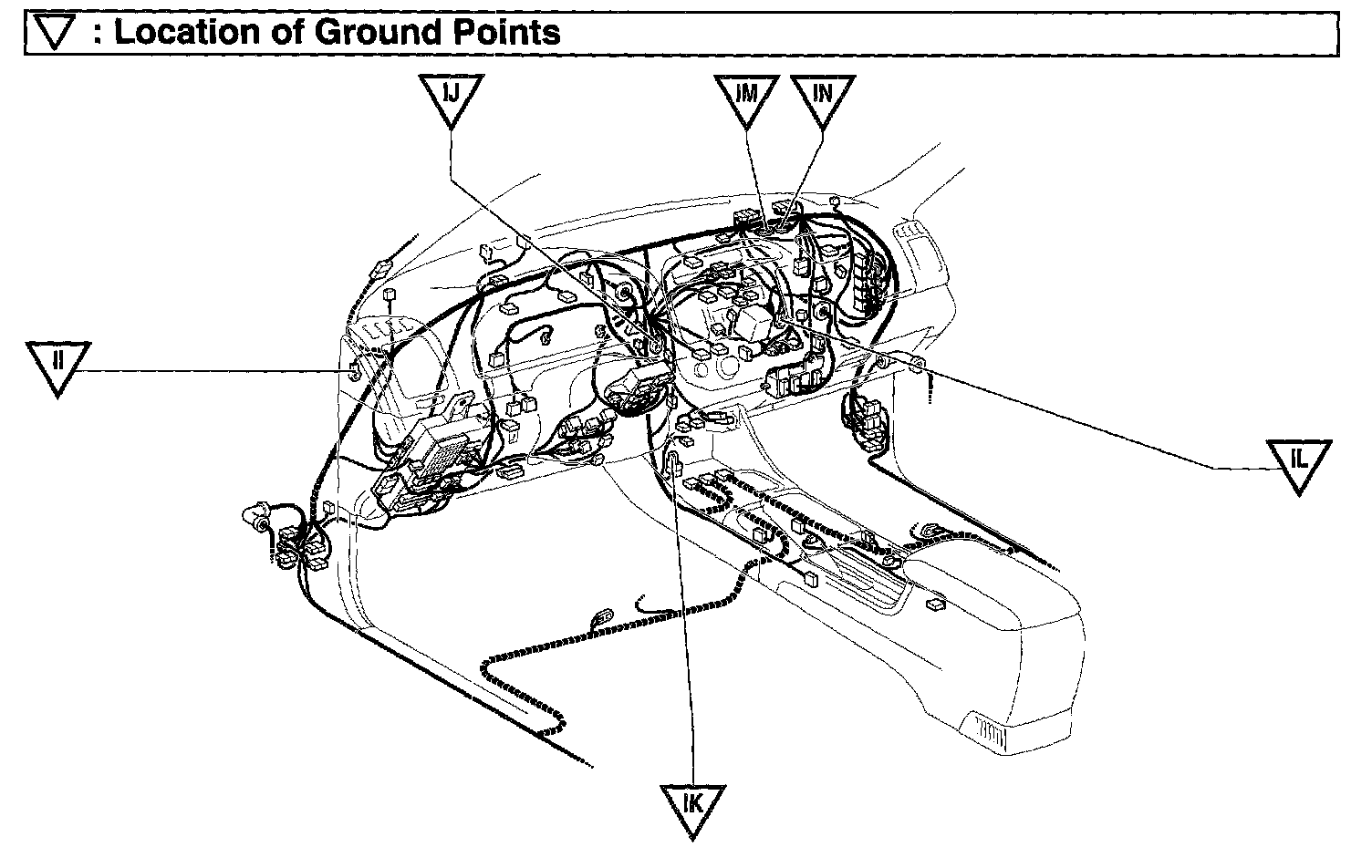

Instrument Panel:

Ground Location
II Cowl Side Panel LH
IJ Instrument Panel Brace LH
IK Instrument Panel Brace LH
IL Instrument Panel Brace RH
IM Instrument Panel Reinforcement RH
IN Instrument Panel Reinforcement RH

Body:

Ground Location
BO Under the Driver's Seat
BP Under the Front Passenger's Seat
BQ(*1) Front Side of Rear Quarter Wheel House LH
BQ(*2) Front Side of Rear Quarter Wheel House LH
BR Front Side of Rear Quarter Wheel House RH
BS Lower Back Panel Center

*1: TMKK Made
*2: TMC Made

Connector Location
BA1 Rear Door LH Wire and Floor Wire (Left Center Pillar)
BB1 Rear Door RH Wire and Floor No.2 Wire (Right Center Pillar)
BC1 Floor No.4 Wire and Floor No.2 Wire (Behind the Rear Passenger's Seat RH)
