Operation CHARM
: Car repair manuals for everyone.
Home
>>
Toyota
>>
2002
>>
Camry LE Sedan V6-3.0L (1MZ-FE)
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse Block
>>
Locations
Fuse Block: Locations

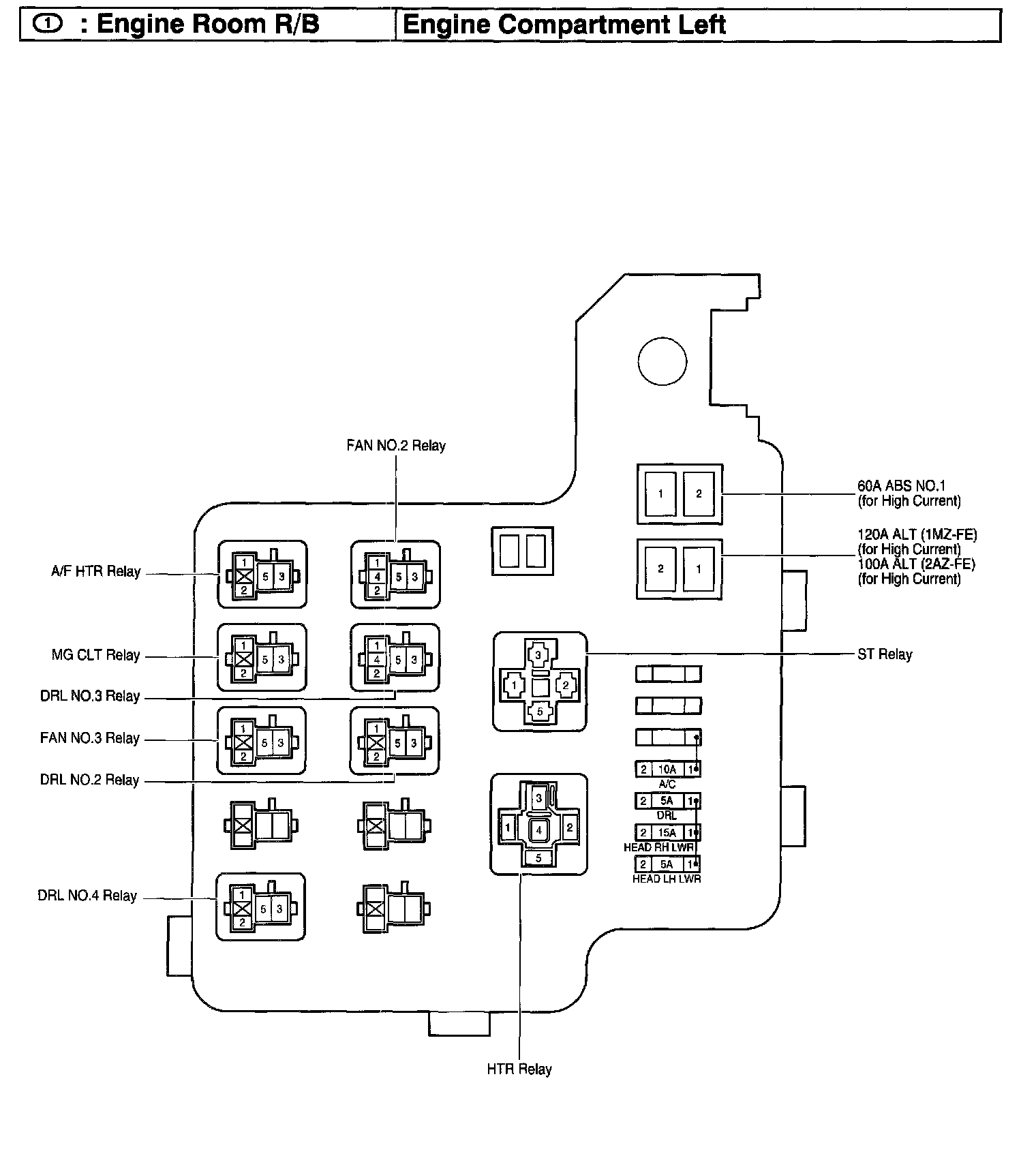

Engine Room R/B:

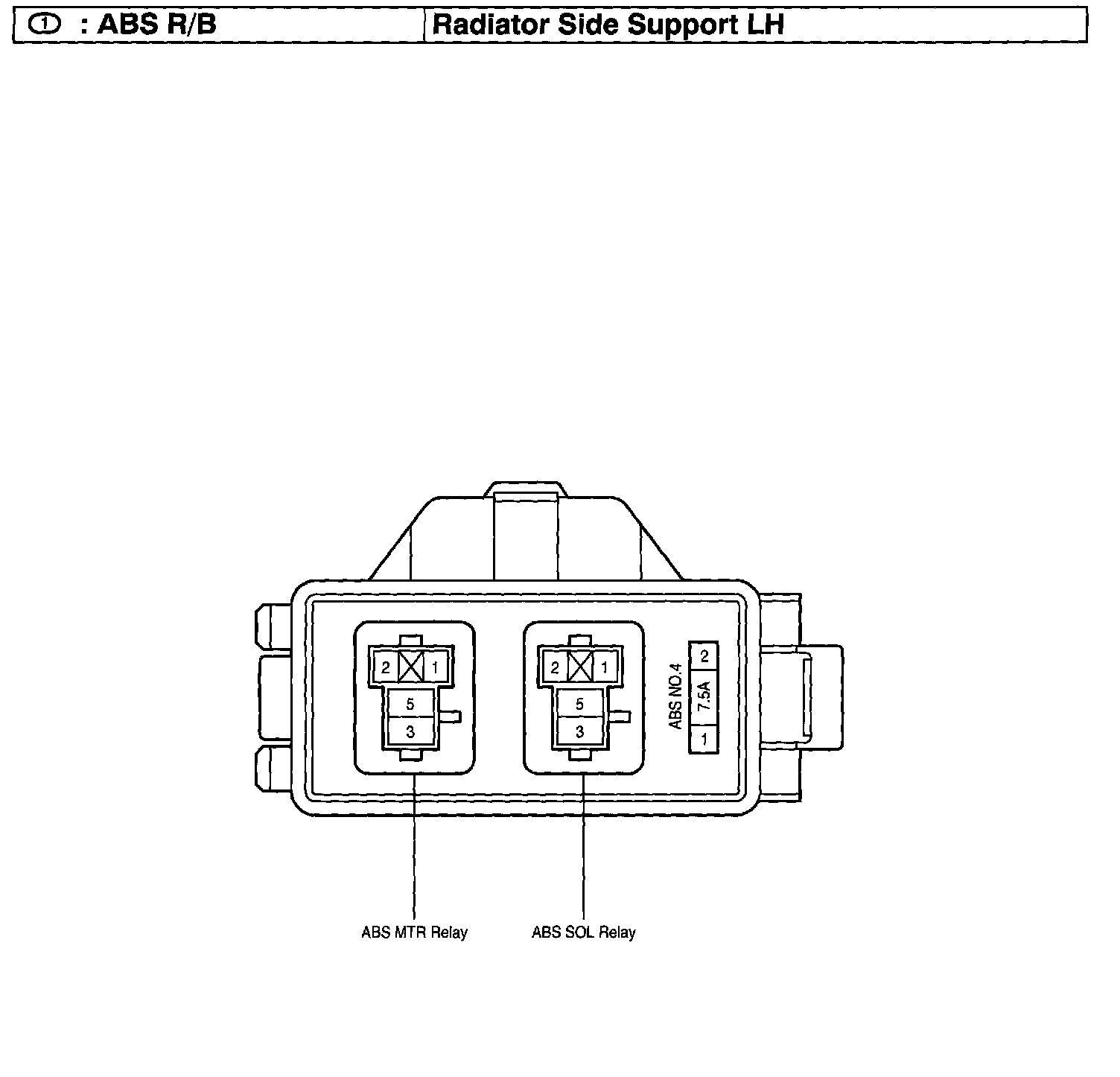

ABS R/B:
Engine Room J/B Part 1:

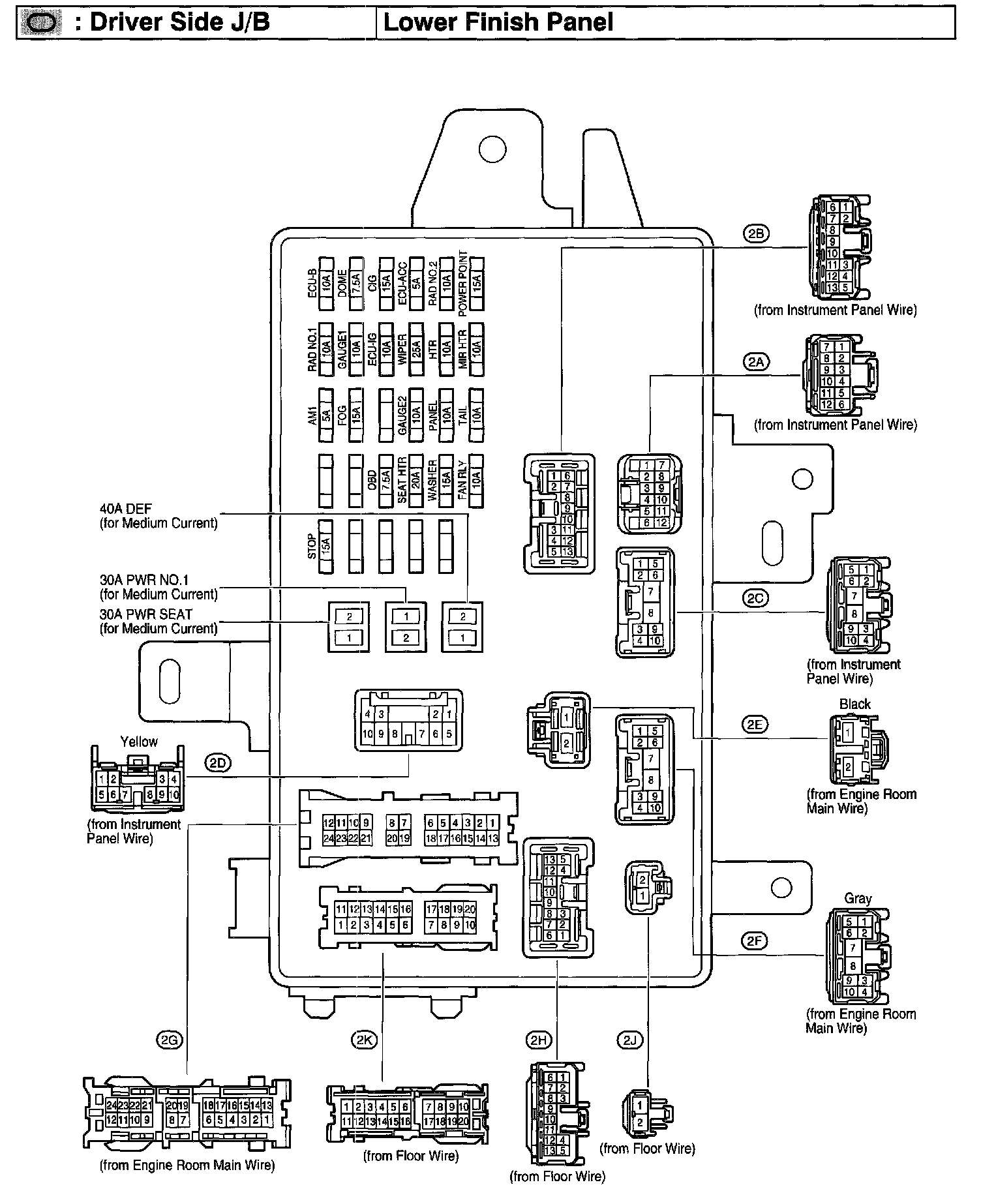

Driver Side J/B Part 1:
Driver Side J/B Part 2:
Details
Engine Compartment:
Instrument Panel:
Locations
