Component Inspection

OXYGEN SENSOR
OXYGEN NO.2 SENSOR

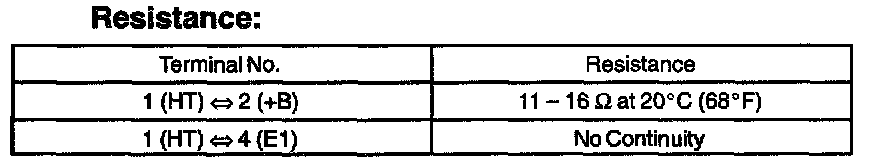

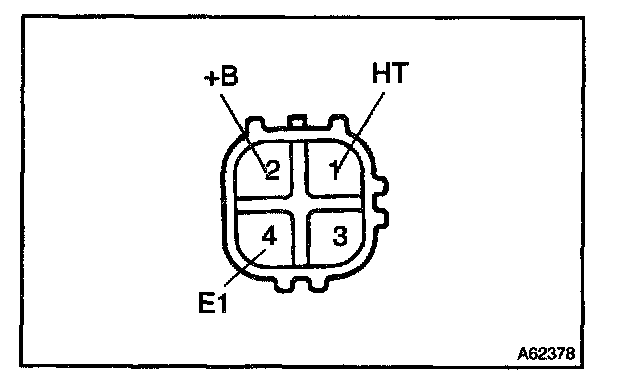

a. Using an ohmmeter, measure the resistance between the terminals.
If the resistance is not as specified, replace the sensor.
