Computers and Control Systems
Computers and Control Systems

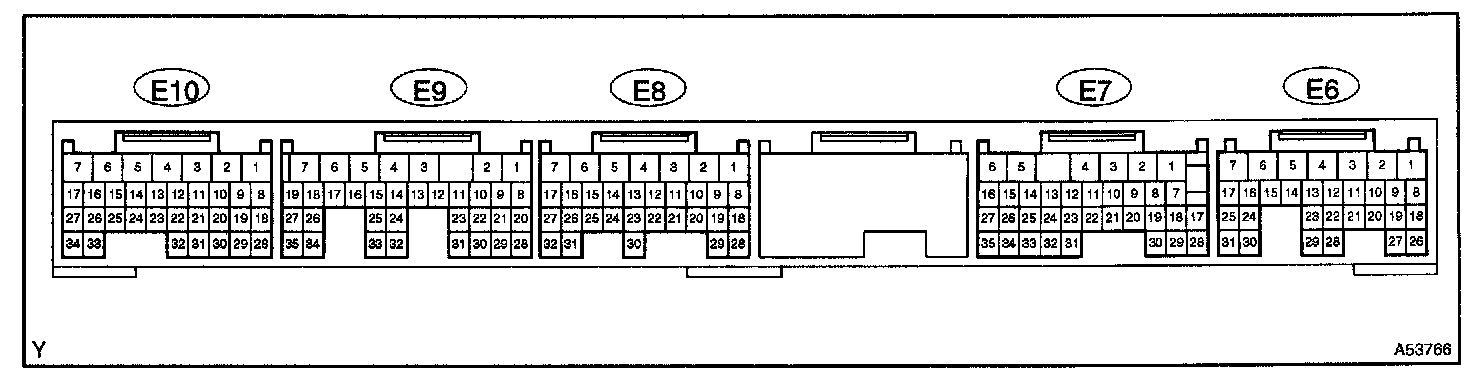

Terminals Of ECM - Connector View:

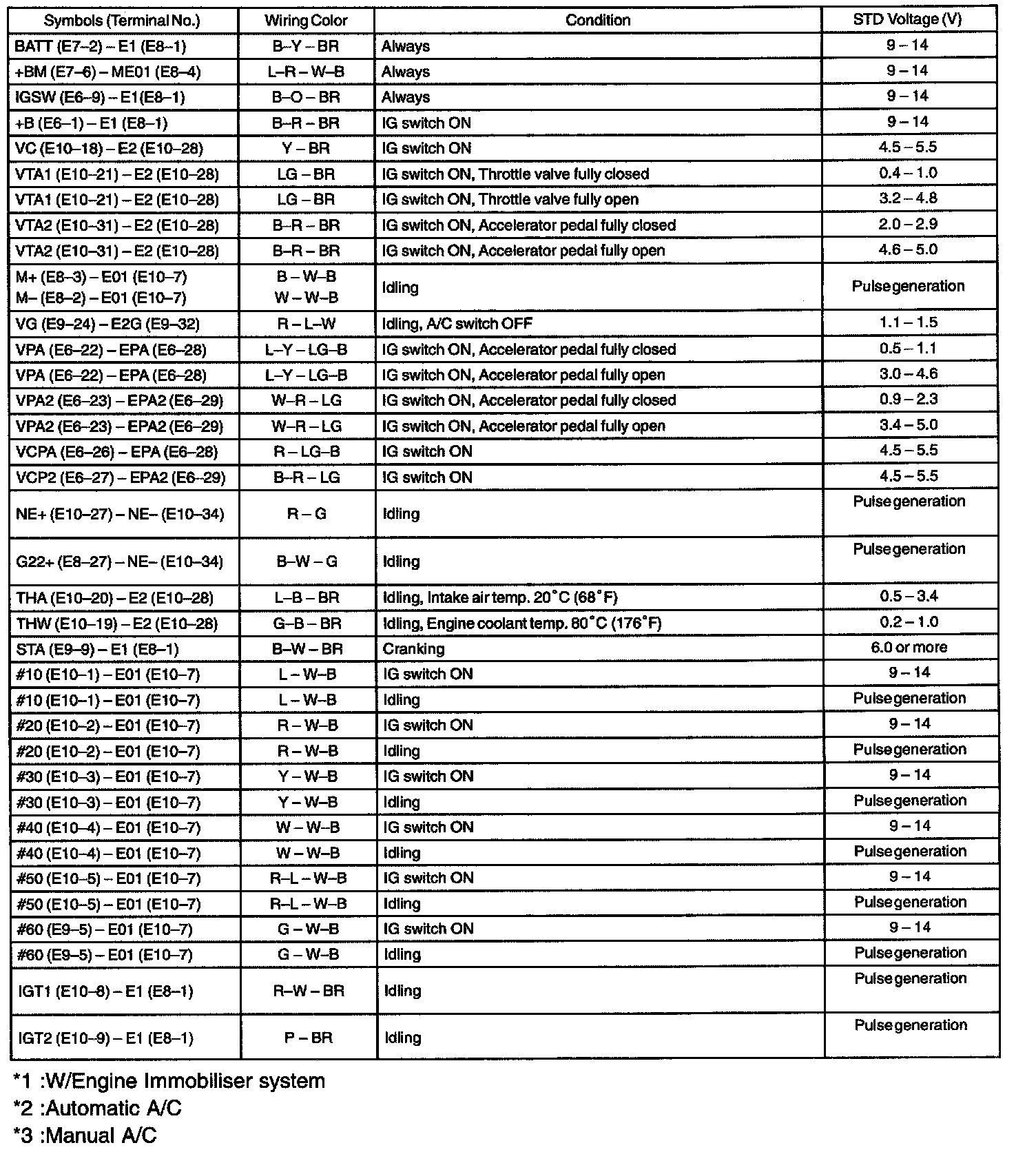

Terminals Of ECM - Pinouts (Part 1):

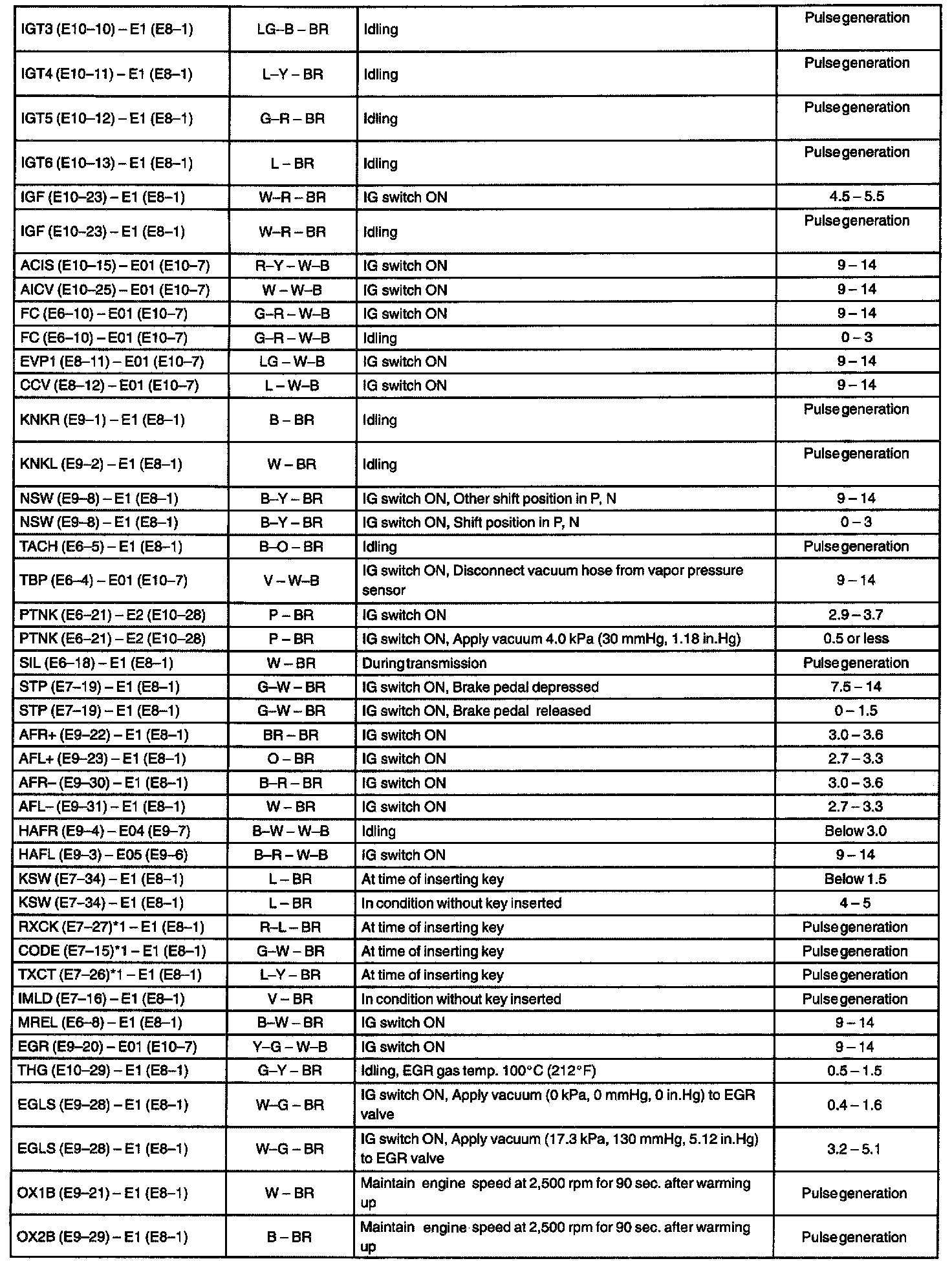

Terminals Of ECM - Pinouts (Part 2):

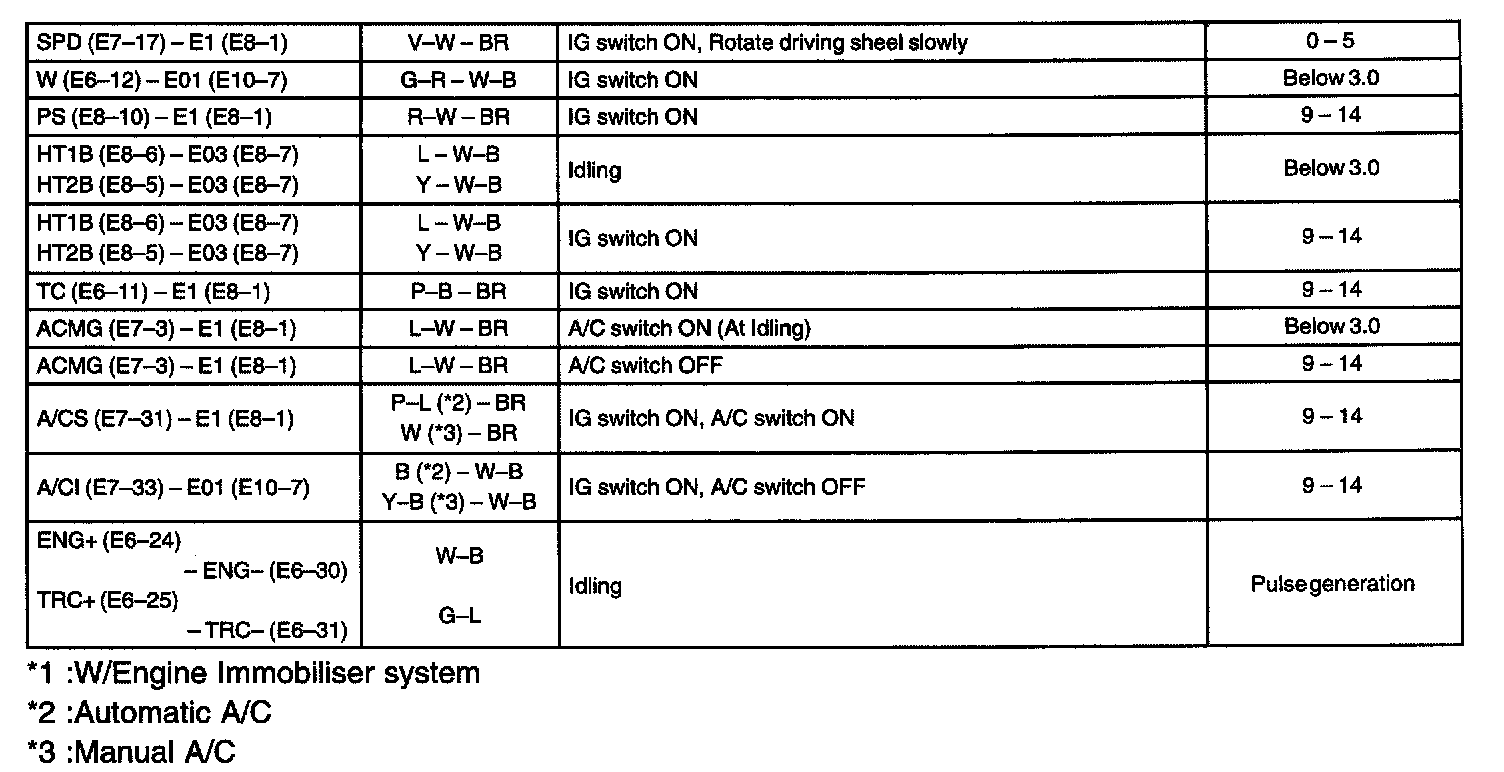

Terminals Of ECM - Pinouts (Part 3):
