Connector Locations

Engine Compartment:

Ground Location
EA Right Fender
EB Right Fender
EC Left Fender
ED Left Fender
EE Surge Tank RH
EF Rear Side of Surge Tank
EG Left Side of cylinder Head
EH Intake Side of Cylinder Block

Connector Location
EA1 Engine Room Main Wire and Engine Room No.2 Wire (Radiator Side Support LH)
EA2 Engine Room Main Wire and Engine Room No.2 Wire (Radiator Side Support LH)
EB1 Engine Wire and Sensor Wire (Left Back of Cylinder Head)

Instrument Panel:

Connector Location
IA1 Front Door LH Wire and Floor Wire (Left Kick Panel)
IB1 Front Door LH Wire and Instrument Panel Wire (Left Kick Panel)
IB2 Front Door LH Wire and Instrument Panel Wire (Left Kick Panel)
IC1 Instrument Panel Wire and Floor Wire (Left Kick Panel)
IC2 Instrument Panel Wire and Floor Wire (Left Kick Panel)
ID1 Engine Room Main Wire and Floor Wire (Left Side and Driver's Side J/B)
IE1 Instrument Panel Wire and Roof Wire (Inside of Front Left pillar)
IF1 Engine Room Main Wire and Instrument Panel Wire (Right Side of Steering Column Tube)
IF2 Engine Room Main Wire and Instrument Panel Wire (Right Side of Steering Column Tube)
IF3 Engine Room Main Wire and Instrument Panel Wire (Right Side of Steering Column Tube)
IF4 Engine Room Main Wire and Instrument Panel Wire (Right Side of Steering Column Tube)
IF5 Engine Room Main Wire and Instrument Panel Wire (Right Side of Steering Column Tube)
IF6 Engine Room Main Wire and Instrument Panel Wire (Right Side of Steering Column Tube)
IG1 Instrument Panel Wire and Engine Room Main Wire (Instrument Panel Brace LH)
IH1 Instrument Panel Wire and Instrument Panel No.2 Wire (Instrument Panel Brace RH)
IH2 Instrument Panel Wire and Instrument Panel No.2 Wire (Instrument Panel Brace RH)
IH3 Instrument Panel Wire and Instrument Panel No.2 Wire (Instrument Panel Brace RH)

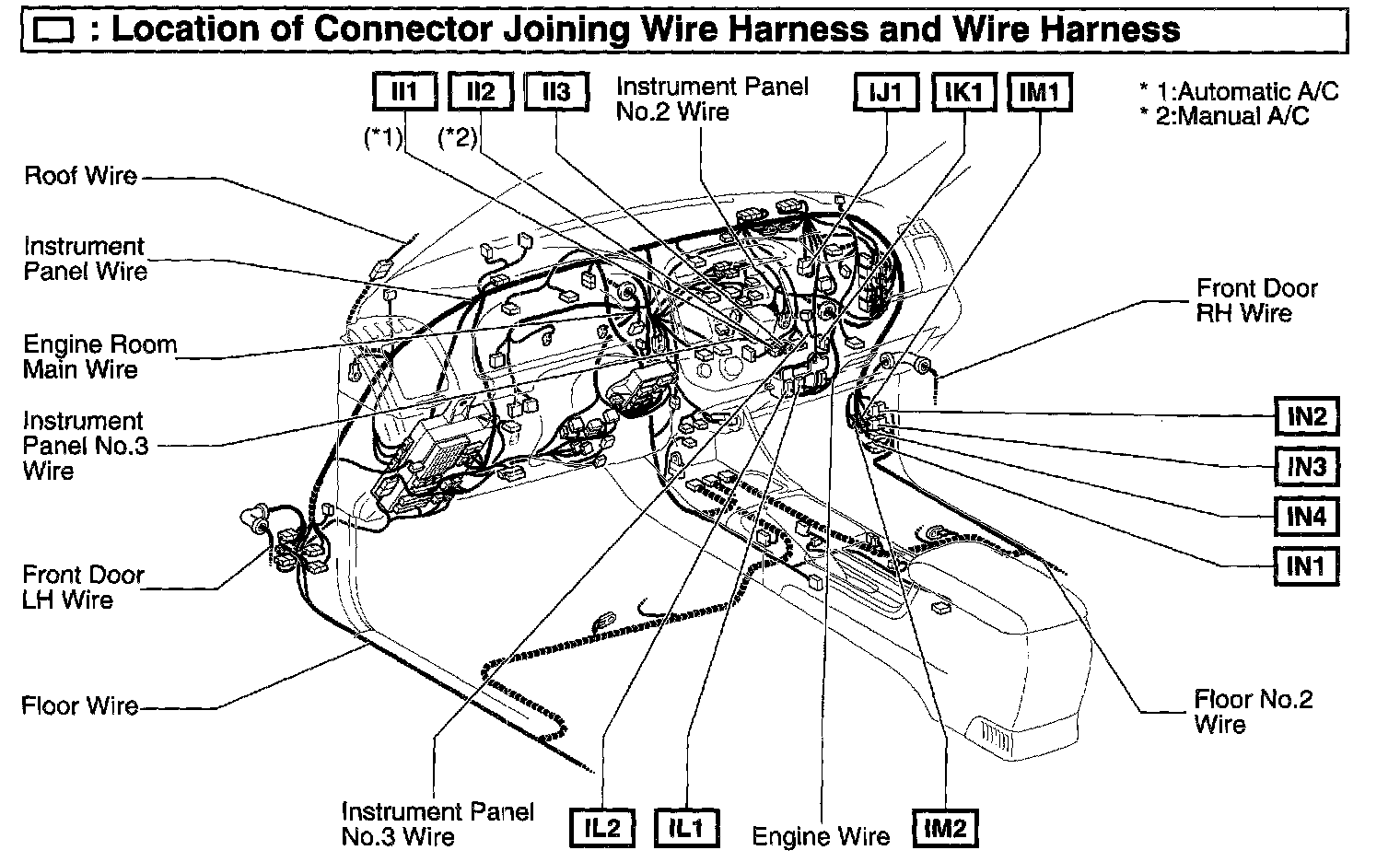

Instrument Panel:

Connector Location
II1 Instrument Panel Wire and Instrument Panel No.3 Wire (Behind the Glove Box)
II2 Instrument Panel Wire and Instrument Panel No.3 Wire (Behind the Glove Box)
II3 Instrument Panel Wire and Instrument Panel No.3 Wire (Behind the Glove Box)
IJ1 Instrument Panel Wire and Instrument Panel Wire (Instrument Panel Reinforcement RH)
IK1 Instrument Panel Wire and Instrument Panel No.3 Wire (Behind the Glove Box)
IL1 Engine Wire and Instrument Panel Wire (Behind the Glove Box)
IL2 Engine Wire and Instrument Panel Wire (Behind the Glove Box)
IM1 Front Door RH Wire and Instrument Panel Wire (Right Kick Panel)
IM2 Front Door RH Wire and Instrument Panel Wire (Right Kick Panel)
IN1 Instrument Panel Wire and Floor No.2 Wire (Right Kick Panel)
IN2 Instrument Panel Wire and Floor No.2 Wire (Right Kick Panel)
IN3 Instrument Panel Wire and Floor No.2 Wire (Right Kick Panel)
IN4 Instrument Panel Wire and Floor No.2 Wire (Right Kick Panel)

Body:

Ground Location
BA1 Rear Door LH Wire and Floor Wire (Left Center pillar)
BB1 Rear Door RH Wire and Floor No.2 Wire (Right Center pillar)
BC1 Floor No.4 Wire and Floor No.2 Wire (Behind the Rear Passenger's Seat RH)
BO Under the Driver's Seat
BP Under the Front Passenger's Seat
BQ(*1) Front Side of Rear Quarter Wheel House LH
BQ(*2) Front Side of Rear Quarter Wheel House LH
BR Front Side of Rear Quarter Wheel House RH
BS Lower Back Panel Center


*1: TMKK Made
*2: TMC Made

Seat:

Connector Location
BD1 Floor Wire and Front Seat LH Wire (Under the Driver's Seat)
BE1 Floor No.2 Wire and Floor Seat RH Wire (Under the Front Passenger's Seat)
