Template Cut Locations For the Convertible

TEMPLATE CUT LOCATIONS FOR THE CONVERTIBLE

CARE POINTS FOR QUARTER PANEL AREAS

1. This is the actual size of the template, so when copying use A3 size paper.
2. Check the copy to make sure it is the same size as the template.

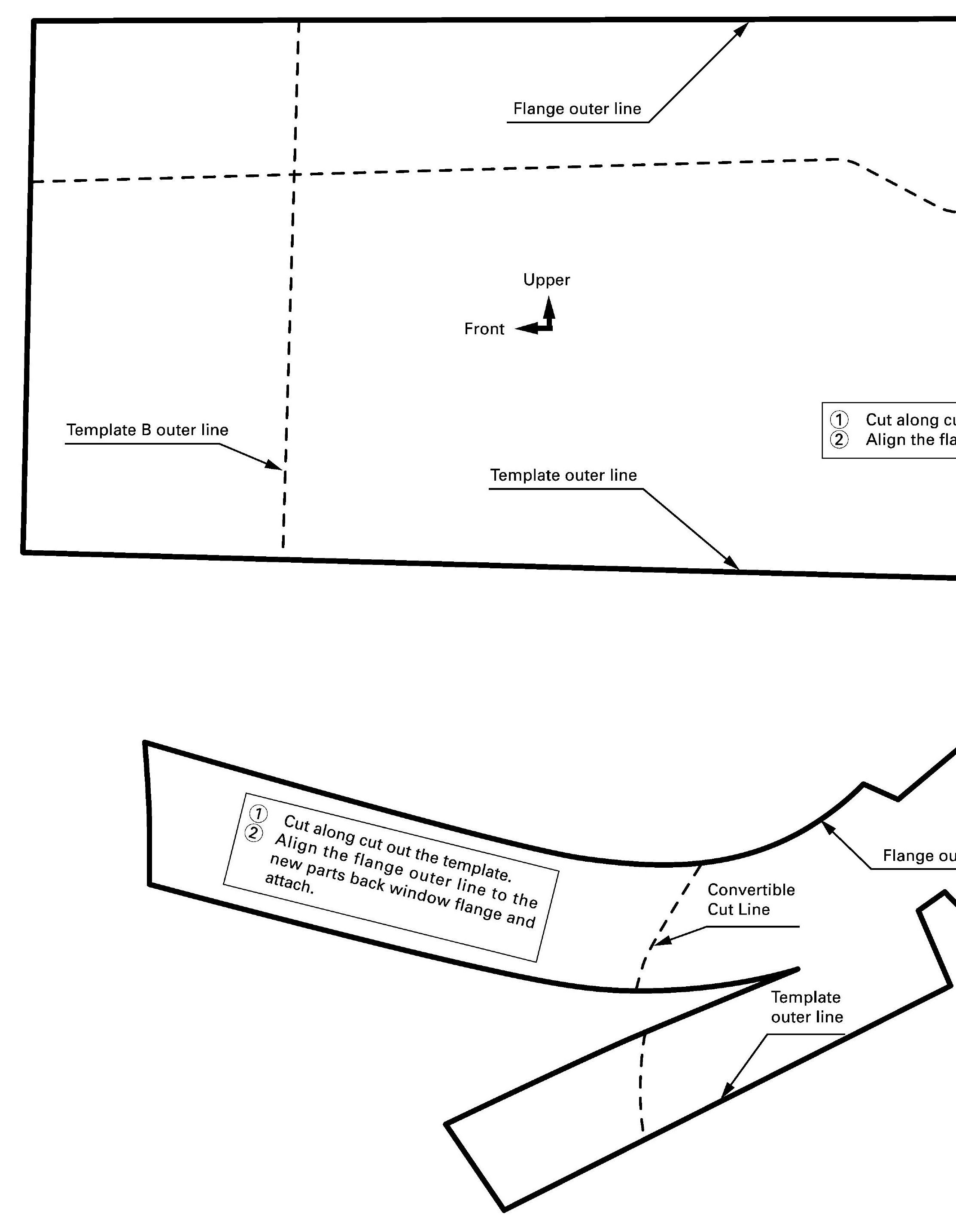

3. Follow the attachment outline shown in each template.
4. When attaching the template to the new parts, before cutting check and recheck that the template is correctly fitted. Compare each templates cutting line to the car then roughly cut the template a centimeter over the printed cutting line.



















5. As this template provides the standard for the cut locations on the convertible's quarter panel, when finishing check that this matches the actual car.
