Home >> Toyota >> 2002 >> Camry Solara SLE V6-3.0L (1MZ-FE) >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Engine >> Oil Pump, Engine

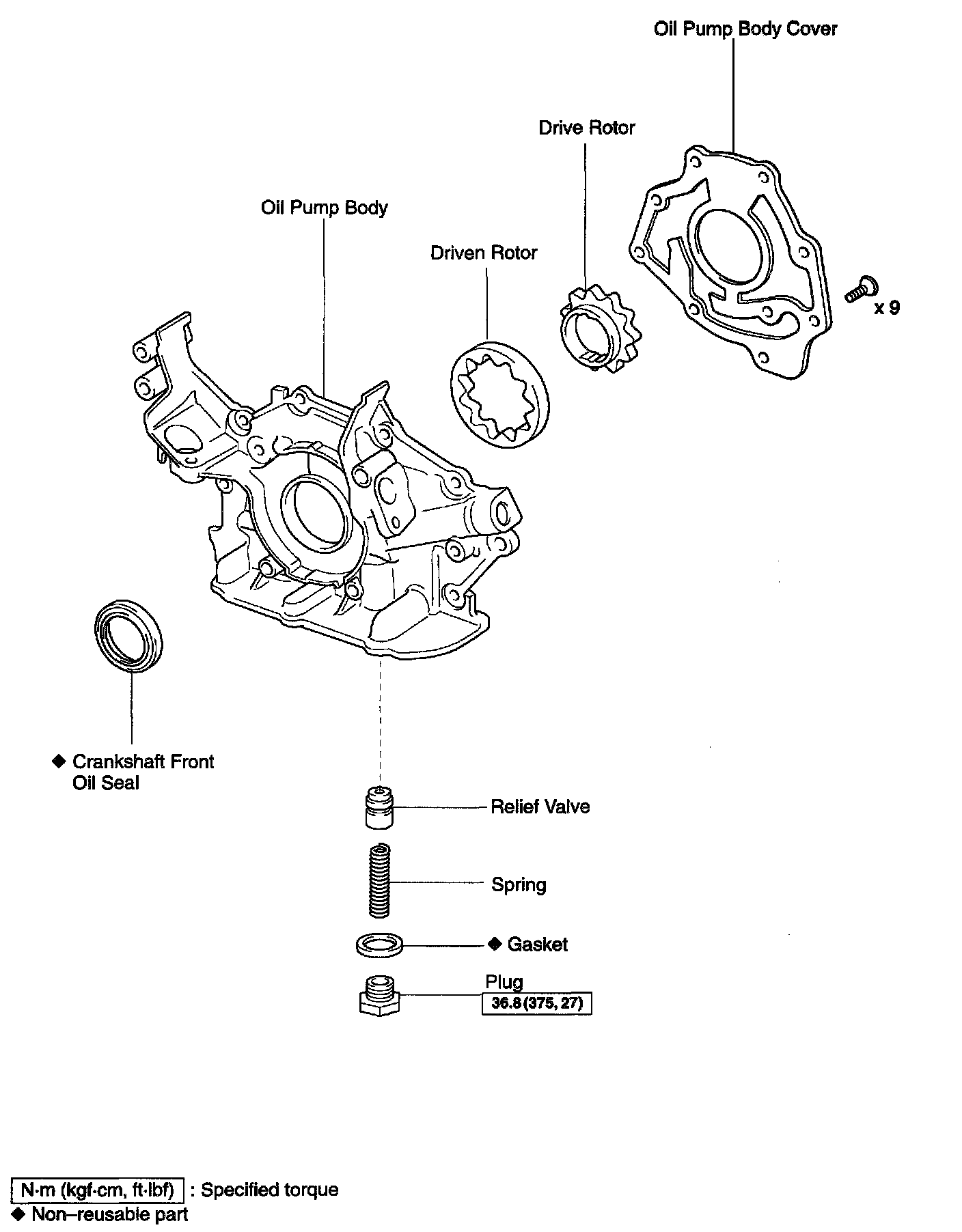

Oil Pump, Engine

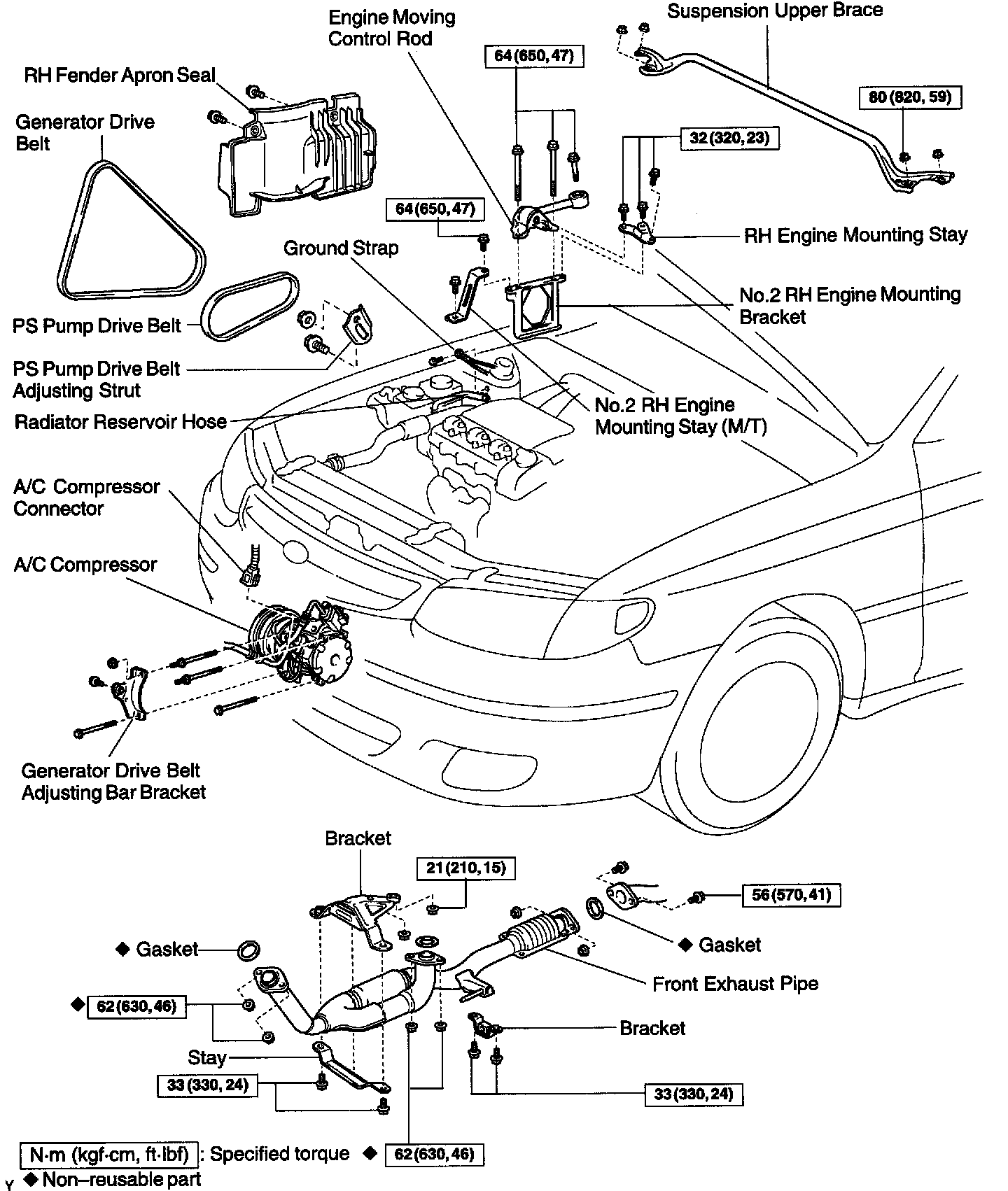

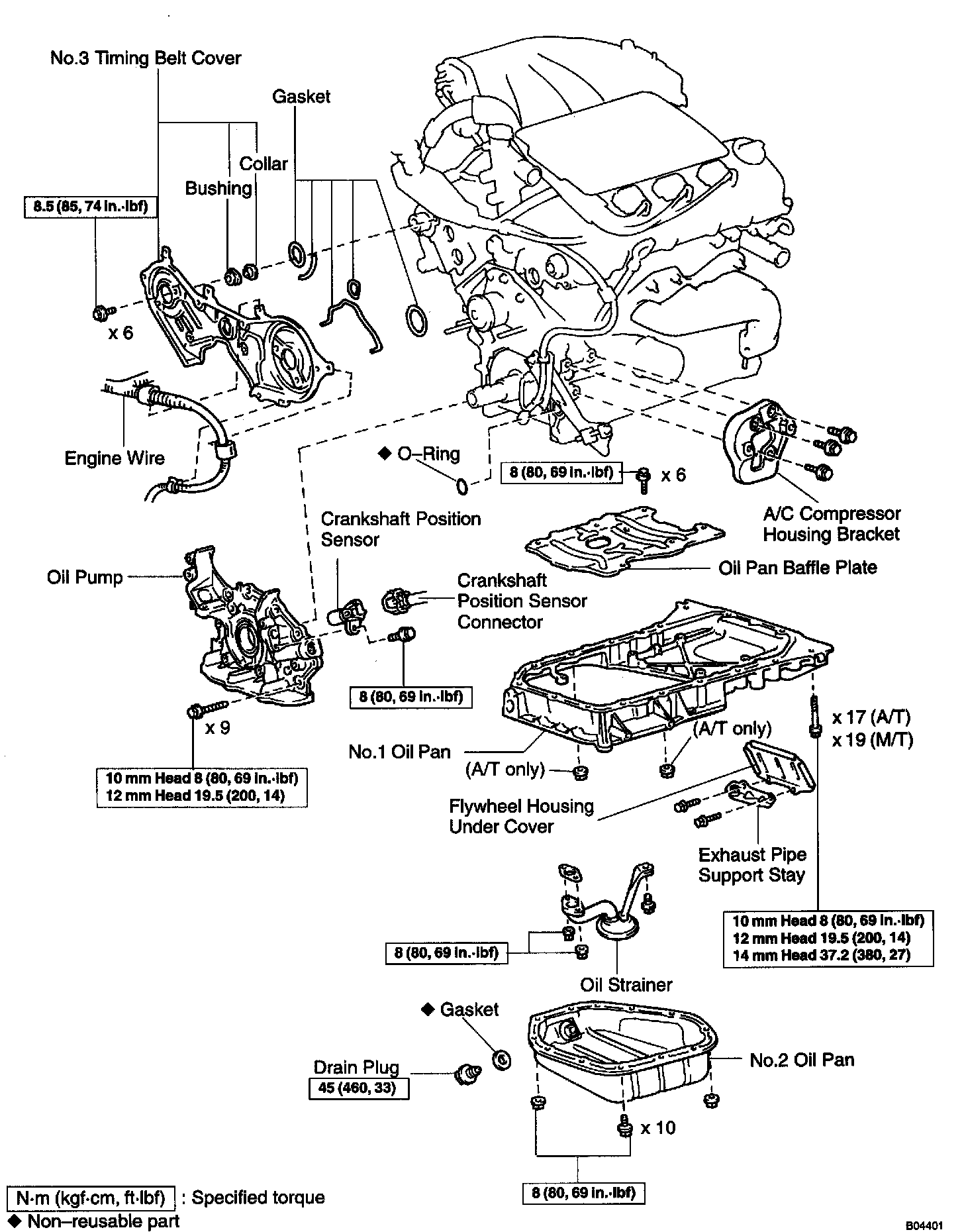

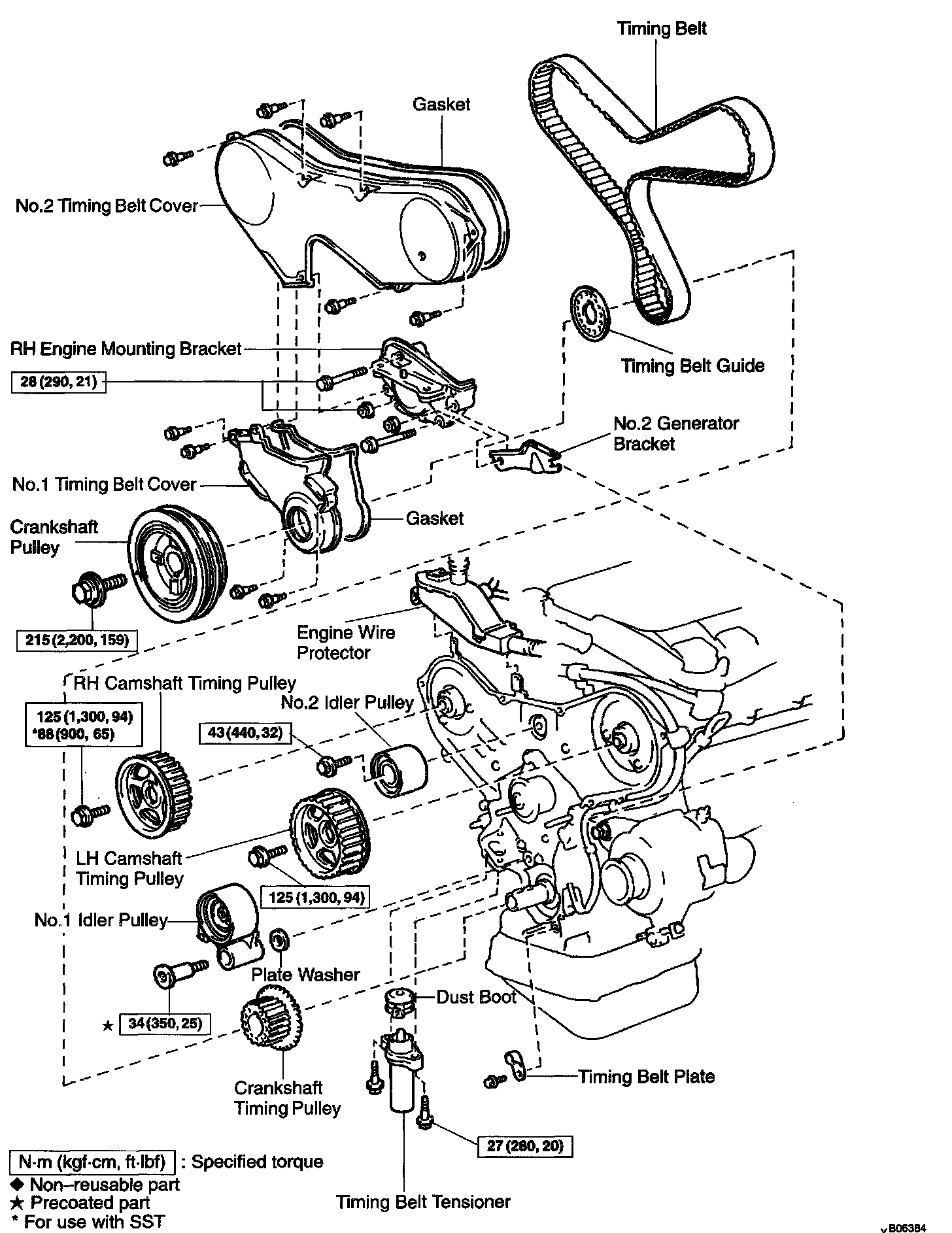

OIL PUMP REPLACEMENT AND OVERHAUL W/ RELATED COMPONENTS
