Overhaul
DISASSEMBLY1. REMOVE DEFROSTER NOZZLE
Remove the 3 screws and defroster nozzle.
2. REMOVE HEATER TO REGISTER NO.1 DUCT
Remove the 2 screws and heater to register No.1 duct.
3. REMOVE HEATER TO REGISTER NO.2 DUCT
Remove the 2 screws and heater to register No.2 duct.
4. REMOVE NO.1 SIDE DEFROSTER NOZZLE DUCT
Remove the 2 screws and No.1 side defroster nozzle duct.
5. REMOVE NO.2 SIDE DEFROSTER NOZZLE DUCT
Remove the 2 screws and No.2 side defroster nozzle duct.
6. REMOVE WIRE HARNESS
Disengage the clamps and remove the wire harness from the instrument panel safety pad.
7. REMOVE CENTER BRACKET
a. Remove the glove box light.
b. Remove the 3 screws and center bracket.
8. REMOVE NO.3 REGISTER
Remove the 2 screws and No.3 register.
9. REMOVE INSTRUMENT PANEL REGISTER
a. Remove the 4 screws and instrument panel register.
b. Remove the mirror control switch from the register.
c. Remove the rheostat control from the register.
10. REMOVE END PANEL
11. w/o Solar sensor:
REMOVE OPENING COVER
12. w/ Solar sensor:
REMOVE SOLAR SENSOR

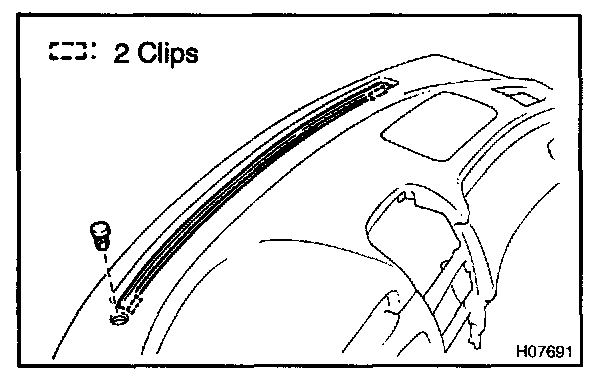

13. REMOVE NO.1 DEFROSTER NOZZLE GARNISH
Using a screwdriver, remove the No.1 defroster nozzle garnish.
HINT: Tape the screwdriver tip before use.
14. REMOVE NO.1 SIDE DEFROSTER NOZZLE
Using a screwdriver, remove the No.1 side defroster nozzle.
HINT: Tape the screwdriver tip before use.

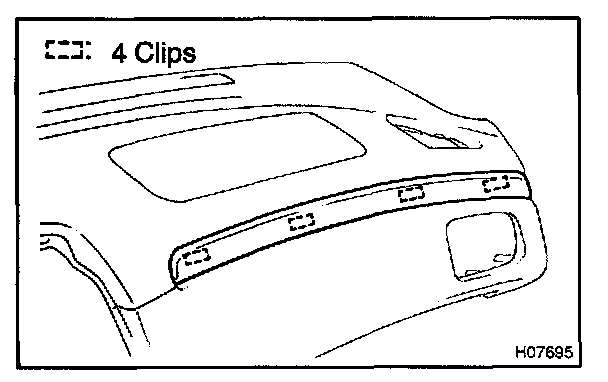

15. REMOVE NO.1 CLUSTER FINISH PANEL GARNISH
Using a screwdriver, remove the No.1 cluster finish panel garnish.
HINT: Tape the screwdriver tip before use.
16. REMOVE NO.2 CLUSTER FINISH PANEL GARNISH
Using a screwdriver, remove the No.2 cluster finish panel garnish.
HINT: Tape the screwdriver tip before use.
REASSEMBLY
Reassembly is in the reverse order of disassembly
