Operation CHARM: Car repair manuals for everyone.
Home >> Toyota >> 2002 >> Camry Solara SLE V6-3.0L (1MZ-FE) >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Brakes and Traction Control >> Traction Control Module >> Testing and Inspection

Traction Control Module: Testing and Inspection

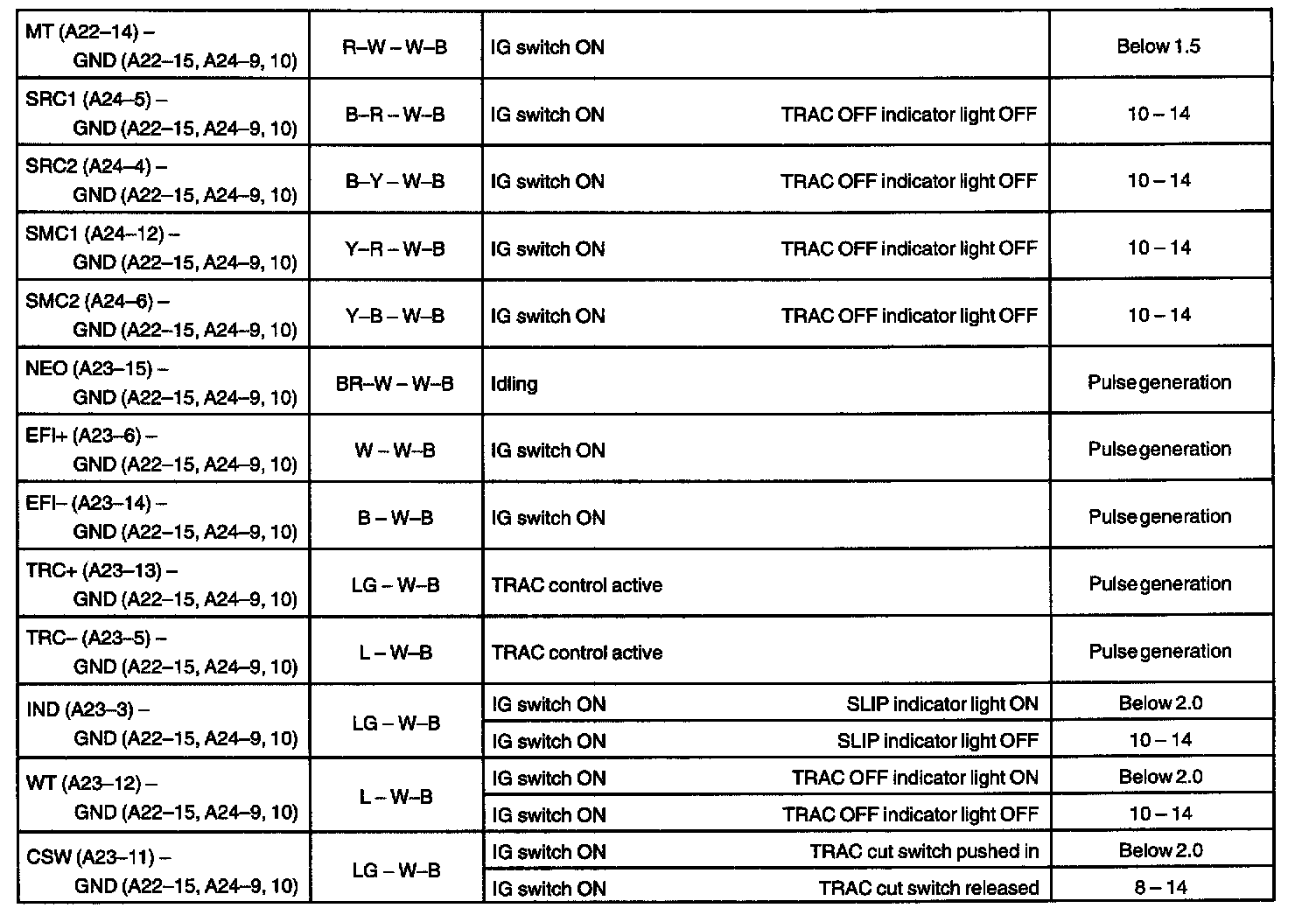

Terminals Of ECU / Pinouts Part 1:



Pinouts Part 2:
