Harness Locations

Engine Compartment - (1MZ-FE):

Ground Location
EA Right radiator side support
EB Left radiator side support
EC Surge tank RH
ED Rear side of the surge tank
EP Right radiator side support

Connector Location
EA1 Engine Room Main Wire and Engine Room Main No.3 Wire (Radiator LH)
EB1 Cowl Wire and Engine Room Main Wire (Under the Engine Room JIB No.2)
EC1 Engine Wire and Engine Room Main Wire (Under the Engine Room J/B No.2)
ED1 Engine Wire and Sensor Wire (Head Cover RH)

Engine Compartment - (2AZ-FE):

Ground Location
EA Right radiator side support
EB Left radiator side support
EC Intake side of the cylinder block
ED Left side of the cylinder block
EP Right radiator side support

Connector Location
EB1 Cowl Wire and Engine Room Main Wire (Under the Engine Room JIB No.2)

Instrument Panel - (C/P):

Connector Location
IA1 Floor Wire and Cowl Wire (Left kick Panel)
IB1 Front Door LH Wire and Instrument Panel Wire (Left kick Panel)
IB2 Front Door LH Wire and Instrument Panel Wire (Left kick Panel)
IC1 Floor Wire and Instrument Panel Wire (Left kick Panel)
IC2 Floor Wire and Instrument Panel Wire (Left kick Panel)
ID1 Front Door LH Wire and Floor Wire (Left kick Panel)
IE1 Cowl Wire and Cowl Wire (Cowl Side Panel LH)
IF1 Instrument Panel Wire and Cowl Wire (Lower Finish Panel)
IF3 Instrument Panel Wire and Cowl Wire (Under the Blower Motor)
IF4 Instrument Panel Wire and Cowl Wire (Lower Finish Panel)
IG1 Instrument Panel Wire and Instrument Panel No.2 Wire (Behind the Radio and Player)
IG2 Instrument Panel Wire and Instrument Panel No.2 Wire (Behind the Radio and Player)

Instrument Panel - (C/P):

Connector Location
IH1 Engine Wire and Cowl Wire (Under the Blower Motor)
IH2 Engine Wire and Cowl Wire (Under the Blower Motor)
IH3 Engine Wire and Cowl Wire (Under the Blower Motor)
IH4 Engine Wire and Cowl Wire (Under the Blower Motor)
II1 Engine Wire and Instrument Panel Wire (Under the Blower Motor)
IJ1 Engine Room Main Wire and Cowl Wire (Right Kick Panel)
IJ2 Engine Room Main Wire and Cowl Wire (Right Kick Panel)
IJ4 Engine Room Main Wire and Cowl Wire (Right Kick Panel)
IJ5 Engine Room Main Wire and Cowl Wire (Right Kick Panel)
IK1 Floor No.2 Wire and Cowl Wire (Right Kick Panel)
IL1 Front Door RH Wire and Instrument Panel Wire (Right Kick Panel)
IL2 Front Door RH Wire and Instrument Panel Wire (Right Kick Panel)
IM1 Floor No.2 Wire and Instrument Panel Wire (Right Kick Panel)
IN1 Front Door RH Wire and Floor No.2 Wire (Right Kick Panel)

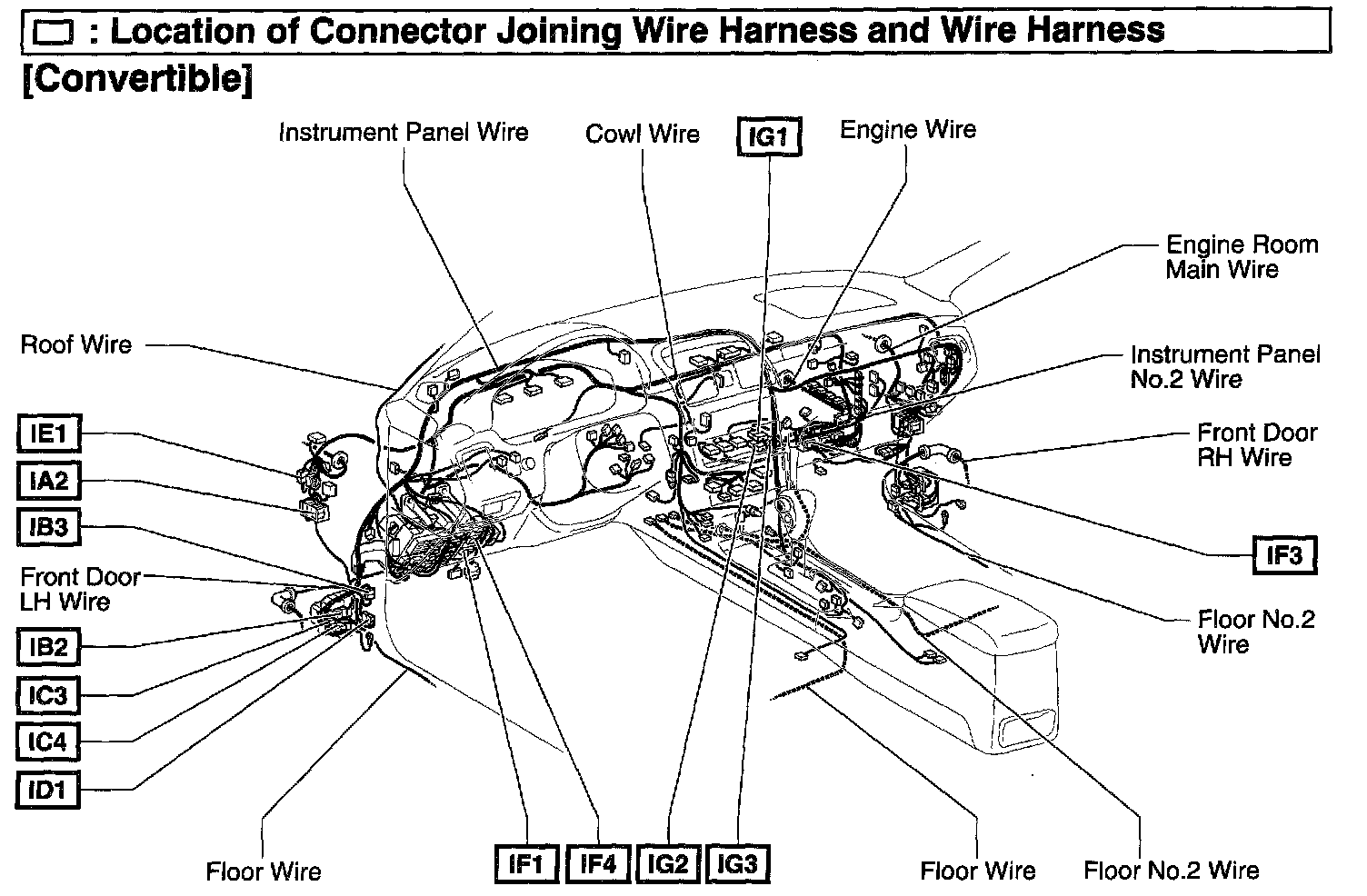

Instrument Panel - (Convertible):

Connector Location
IA2 Floor Wire and Cowl Wire (Left Kick Panel)
IB2 Front Door LH Wire and Instrument Panel Wire (Left Kick Panel)
IB3 Front Door LH Wire and Instrument Panel Wire (Left Kick Panel)
IC3 Floor Wire and Instrument Panel Wire (Left Kick Panel)
IC4 Floor Wire and Instrument Panel Wire (Left Kick Panel)
ID1 Front Door LH Wire and Floor Wire (Left Kick Panel)
IE1 Cowl Wire and Cowl Wire (Cowl Side Panel LH)
IF1 Instrument Panel Wire and Cowl Wire (Lower Finish Panel)
IF3 Instrument Panel Wire and Cowl Wire (Under the Blower Motor)
IF4 Instrument Panel Wire and Cowl Wire (Lower Finish Panel)
IG1 Instrument Panel Wire and Instrument Panel No.2 Wire (Behind the Radio and Player)
IG2 Instrument Panel Wire and Instrument Panel No.2 Wire (Behind the Radio and Player)
IG3 Instrument Panel Wire and Instrument Panel No.2 Wire (Behind the Radio and Player)

Instrument Panel - (Convertible):

Connector Location
IH1 Engine Wire and Cowl Wire (Under the Blower Motor)
IH2 Engine Wire and Cowl Wire (Under the Blower Motor)
IH3 Engine Wire and Cowl Wire (Under the Blower Motor)
IH4 Engine Wire and Cowl Wire (Under the Blower Motor)
II1 Engine Wire and Instrument Panel Wire (Under the Blower Motor)
IJ4 Engine Room Main Wire and Cowl Wire (Right Kick Panel)
IJ6 Engine Room Main Wire and Cowl Wire (Right Kick Panel)
IJ7 Engine Room Main Wire and Cowl Wire (Right Kick Panel)
IJ9 Engine Room Main Wire and Cowl Wire (Right Kick Panel)
IK1 Floor No.2 Wire and Cowl Wire (Right Kick Panel)
IL1 Front Door RH Wire and Instrument Panel Wire (Right Kick Panel)
IL2 Front Door RH Wire and Instrument Panel Wire (Right Kick Panel)
IM3 Floor No.2 Wire and Instrument Panel Wire (Right Kick Panel)
IN1 Front Door RH Wire and Floor No.2 Wire (Right Kick Panel)

Body - (C/P):

Ground Location
BL Under the left center pillar
BM Roof left
BN Under the Right center pillar
BO Back panel center

Connector Location
BA2 Floor Wire and Luggage Room Wire (Luggage Room Left)

Body - (Convertible):

Ground Location
BL Under the left center pillar
BN Under the Right center pillar
BO Back panel center

Connector Location
BA2 Floor Wire and Luggage Room Wire (Luggage Room Left)
BC1 Floor No.2 Wire and Floor Wire (Rear Floor Partition Panel RH)

Seat:

Connector Location
BB1 Floor Wire and Seat No.1 Wire (Under the Driver's Seat)
