Body Control Module
>>
Locations
>>
Component Locations
Component Locations

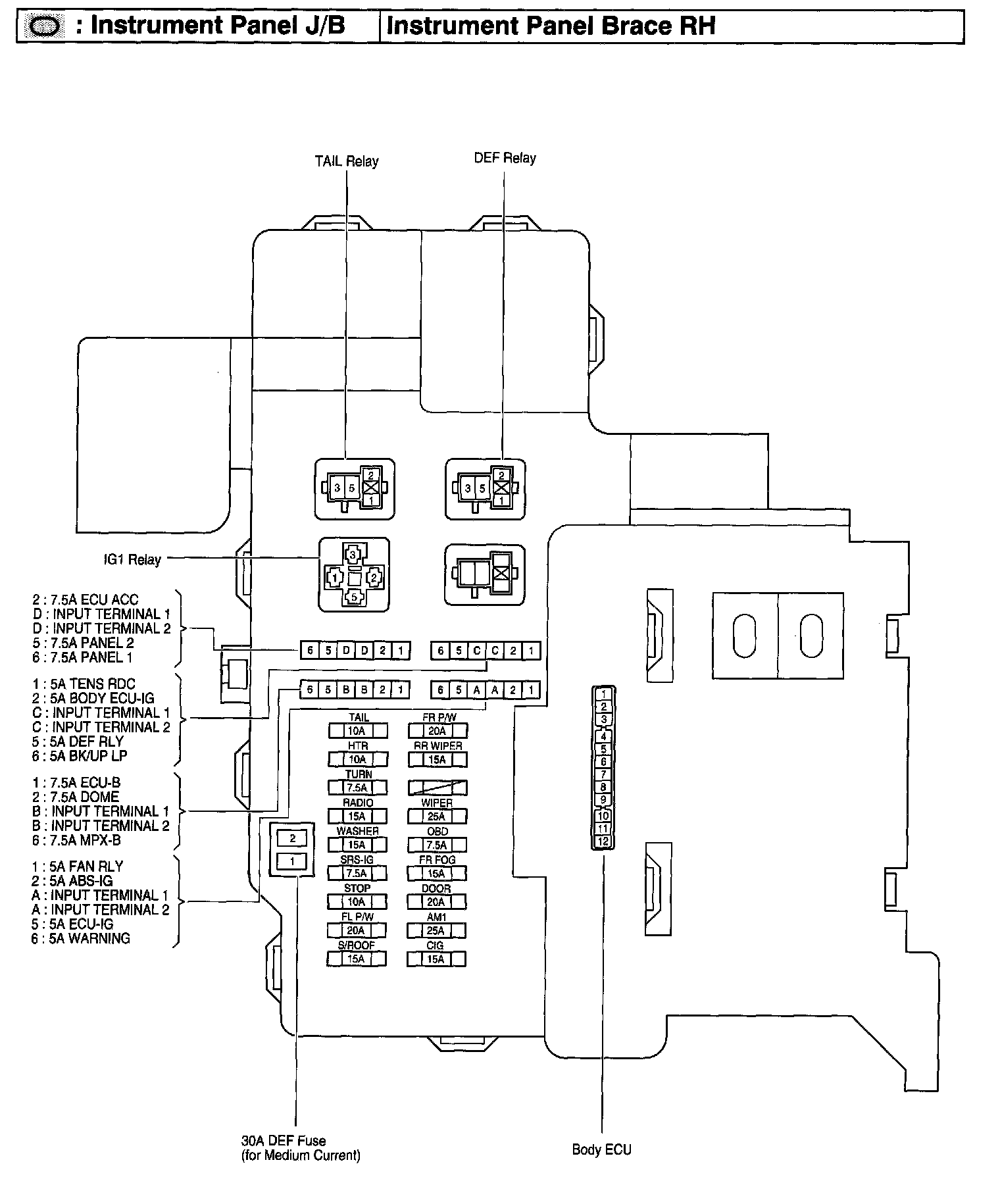

Instrument Panel J/B Part 1:
