System Specifications

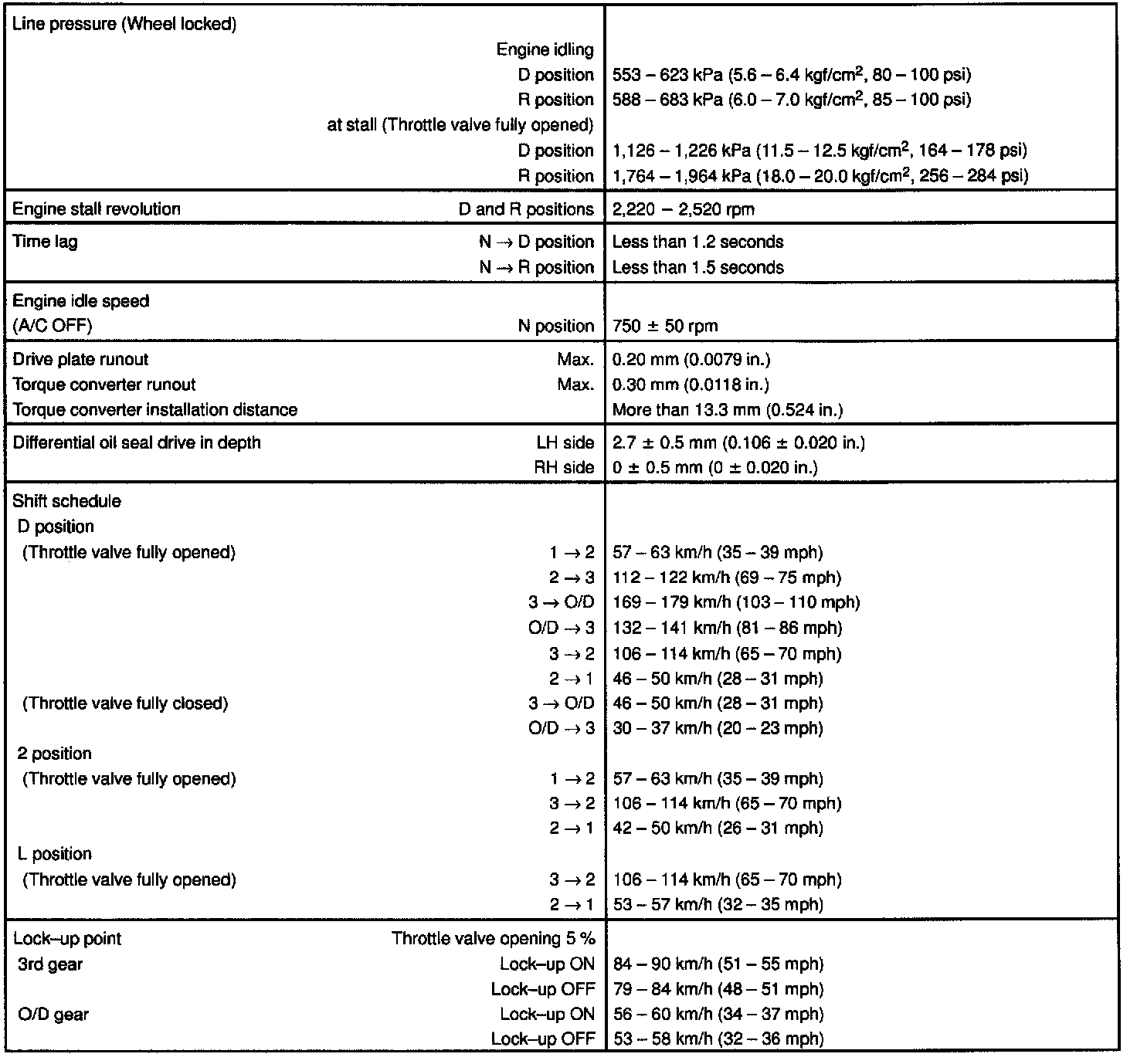

AUTOMATIC TRANSAXLE (U240E) SERVICE DATA:

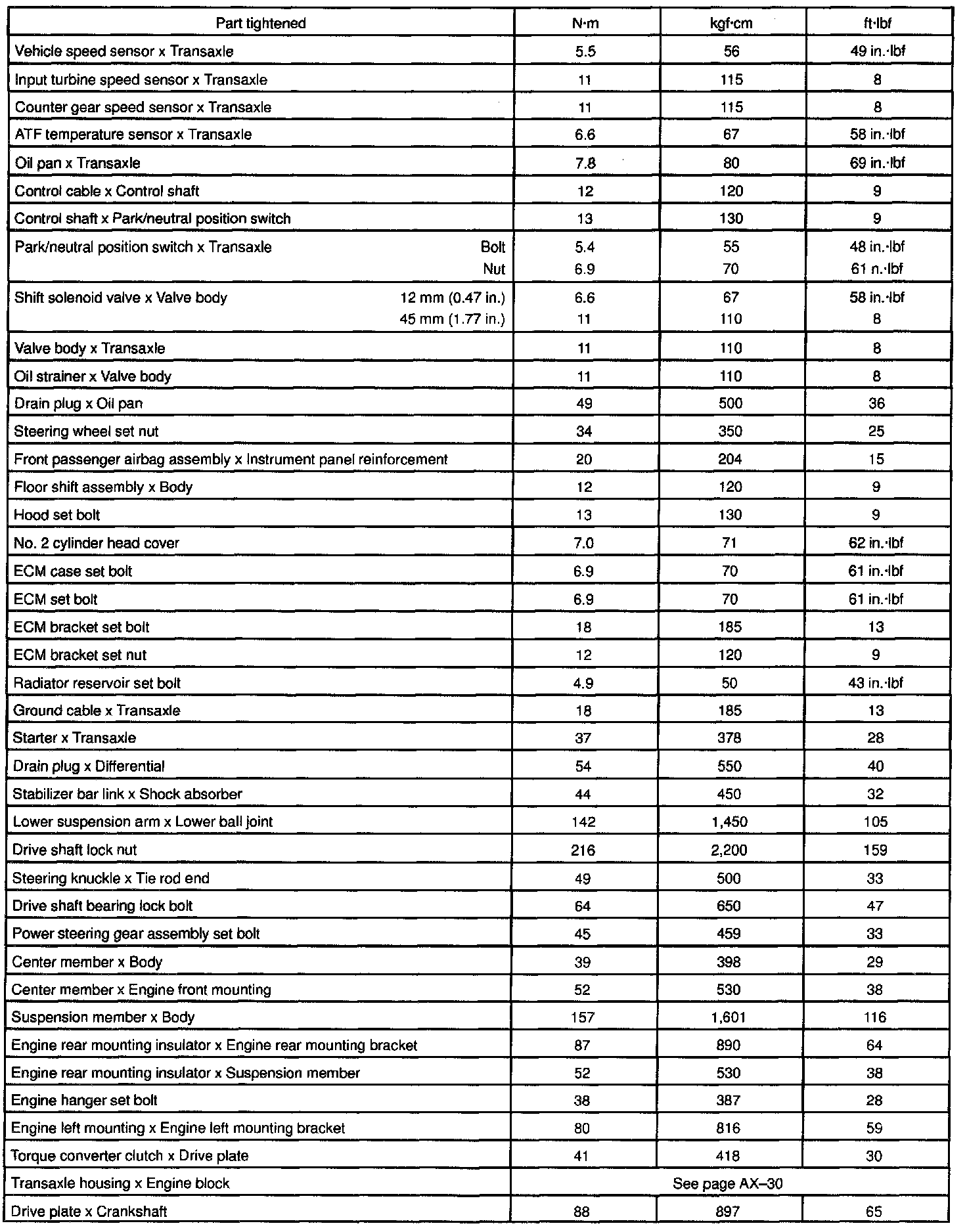

TORQUE SPECIFICATION:





AUTOMATIC TRANSAXLE (U240E)


AUTOMATIC TRANSAXLE (U341E) SERVICE DATA:

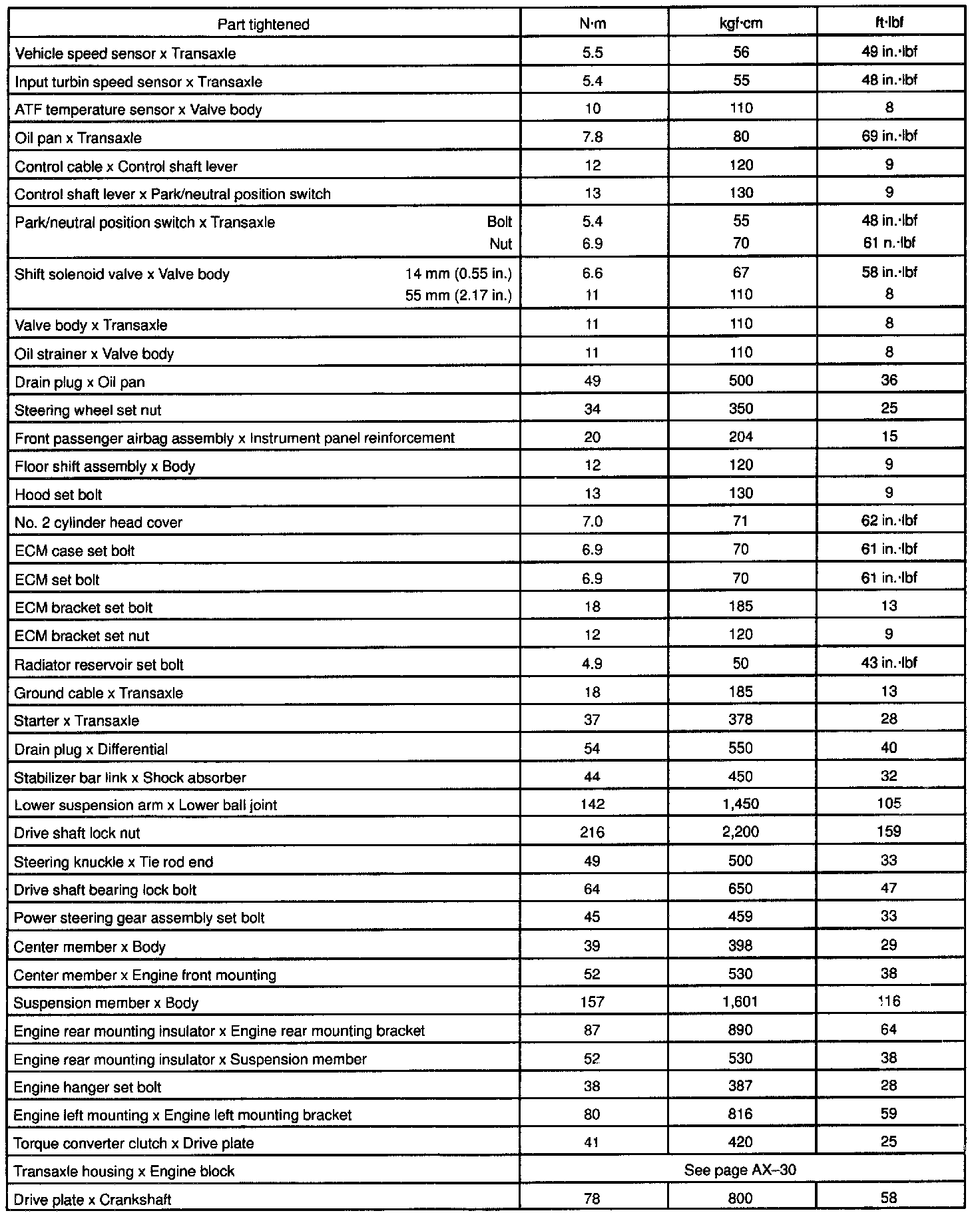

TORQUE SPECIFICATION:





AUTOMATIC TRANSAXLE (U341E)
