B1141

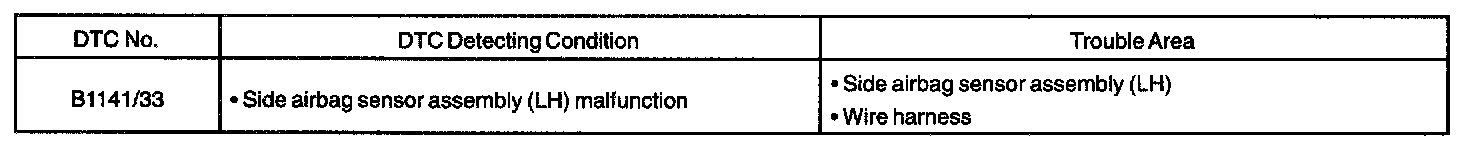

DTC Detecting Condition:

CIRCUIT DESCRIPTION
The side airbag sensor assembly (LH) consists of the safing sensor, diagnosis circuit and lateral deceleration sensor, etc.
It receives signals from the lateral deceleration sensor, judges whether or not the SRS must be activated, and diagnosis system malfunction.
DTC detects a B1141/33 is recorded when a malfunction in the side airbag sensor assembly (LH) is detected.

Wiring Diagram:

Steps 1 - 3:

Step 4:

Step 5:

Steps 6 - 7:

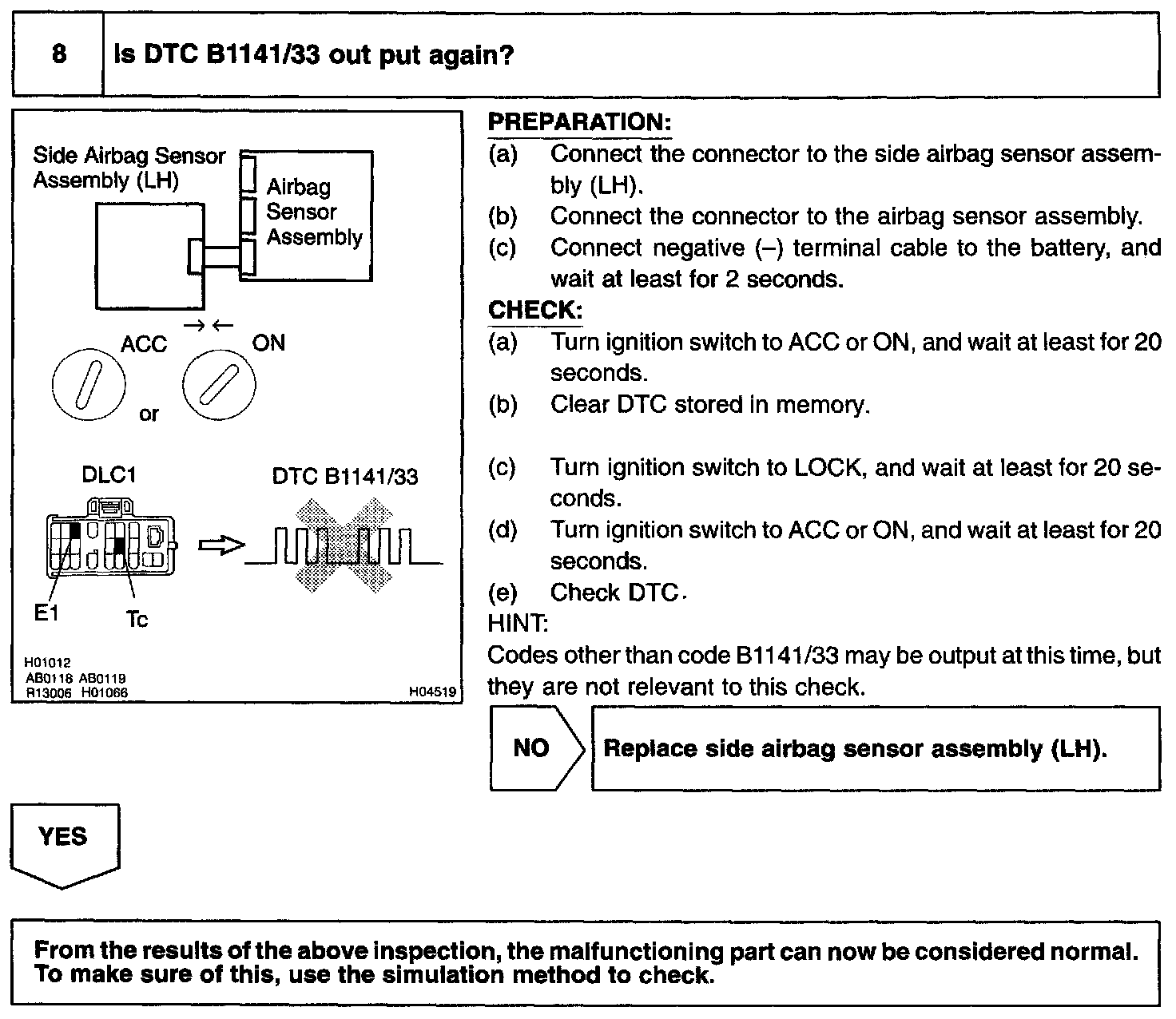

Step 8:

INSPECTION PROCEDURE
