Crankshaft Position Sensor: Service and Repair
Crankshaft Position Sensor:

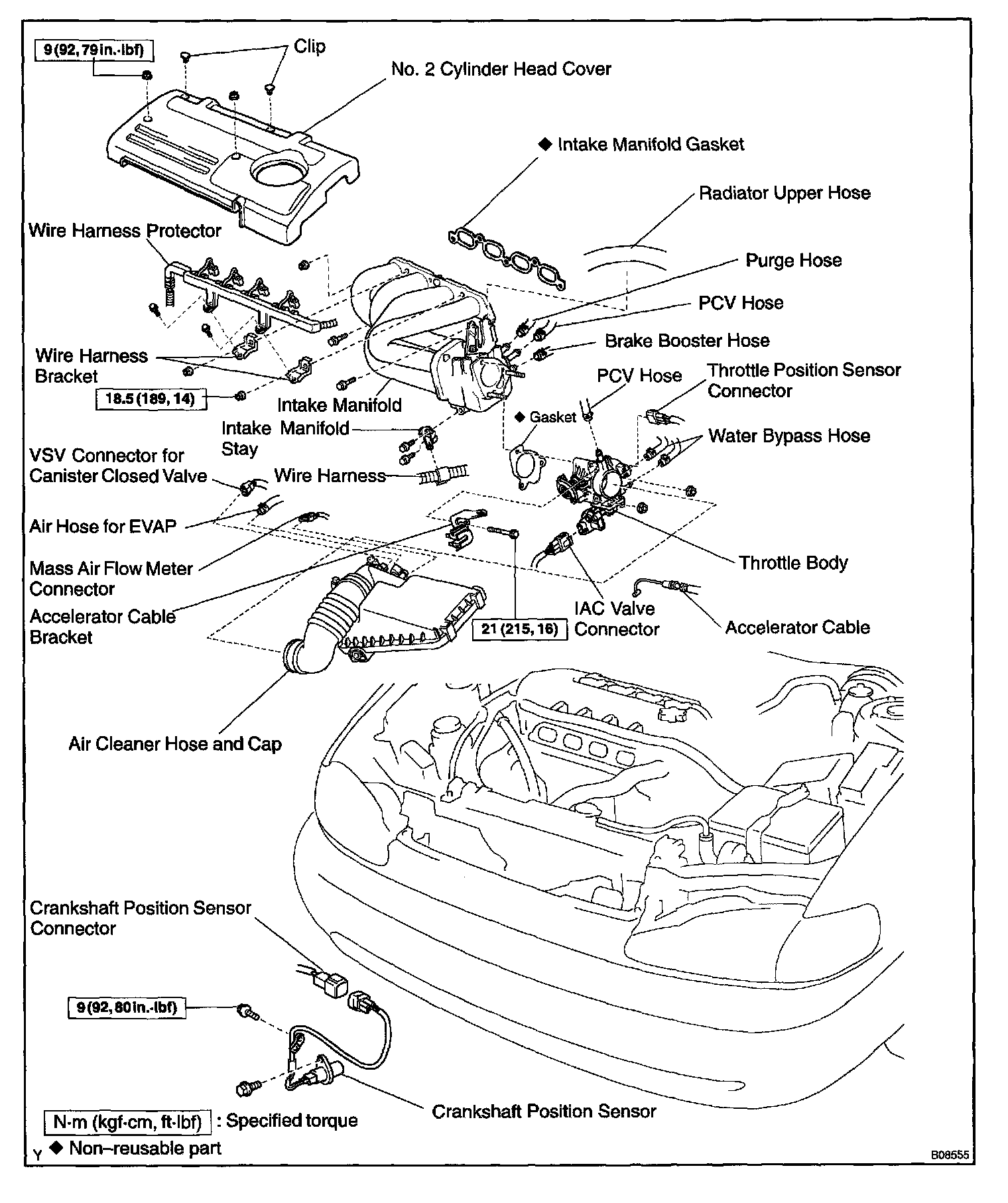

REMOVAL 1.
REMOVE INTAKE MANIFOLD
2.
REMOVE

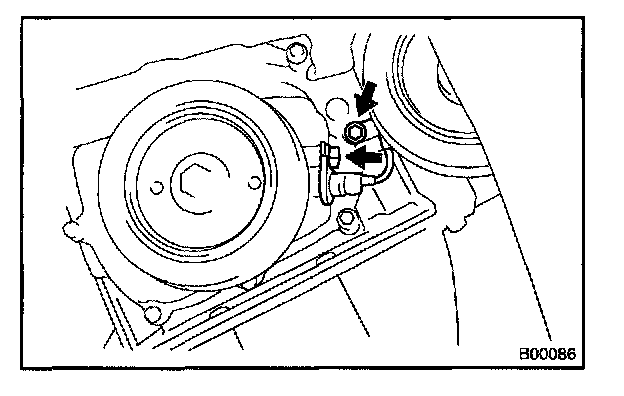

CRANKSHAFT POSITION SENSOR a.
Disconnect the sensor connector.
b.
Remove the 2 bolts, and disconnect the sensor.
Torque:
9 N.m (92 kgf.cm, 79 in.lbf) INSTALLATION Installation is in the reverse order of removal.
