Crankshaft Position Sensor: Testing and Inspection
INSPECTION NOTE: "Cold" and "Hot" in these sentences express the temperature of the sensor itself. "Cold" is from
- 10 °C (14 °F) to 50 °C (122 °F) and "Hot" is from

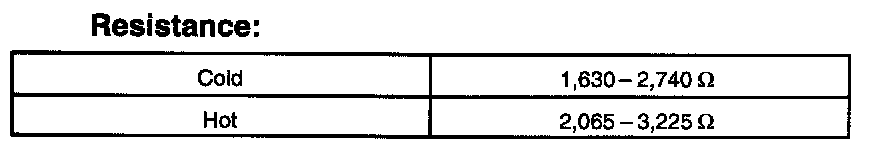

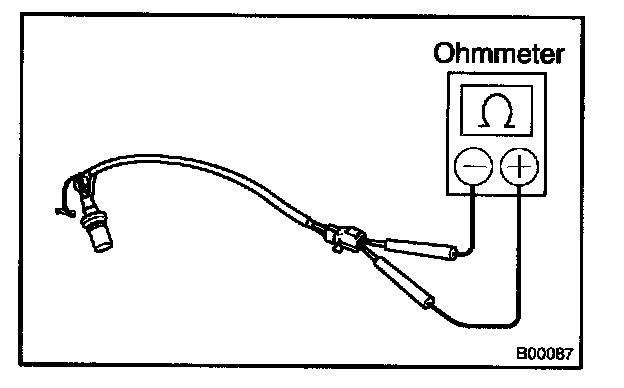

50 °C (122 °F) to 100 °C (212 °F). INSPECT CRANKSHAFT POSITION SENSOR RESISTANCE Using an ohmmeter, measure the resistance between the terminals.
If the resistance is not as specified, replace the sensor
