Knock Sensor: Testing and Inspection
INSPECTION1. REMOVE THROTTLE BODY
2. REMOVE INTAKE MANIFOLD
3. REMOVE KNOCK SENSOR
a. Disconnect the knock sensor connector.

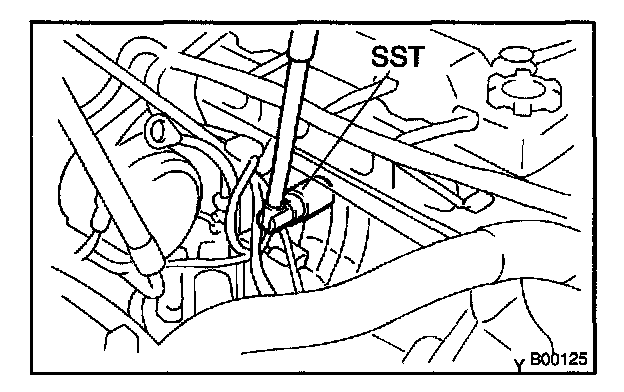

b. Using SST, remove the knock sensor.
SST 09816 - 30010
4. INSPECT KNOCK SENSOR

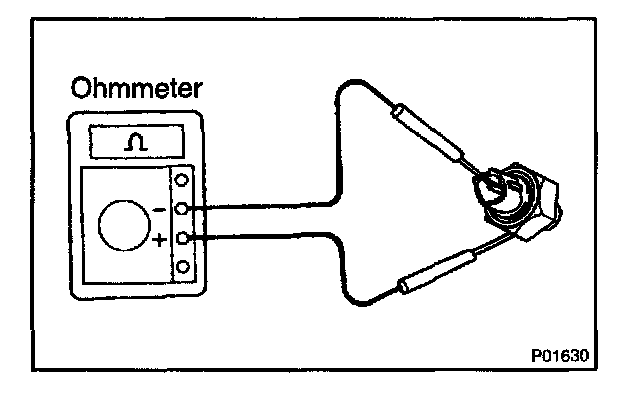

Using an ohmmeter, check that there is continuity between the terminal and body
If there is continuity, replace the sensor.
5. REINSTALL KNOCK SENSOR
a. Using SST install the knock sensor.
SST 09816 - 30010
b. Connect the knock sensor connector.
6. REINSTALL INTAKE MANIFOLD
7. REINSTALL THROTTLE BODY
