Corolla S Sedan L4-1.8L (1ZZ-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>

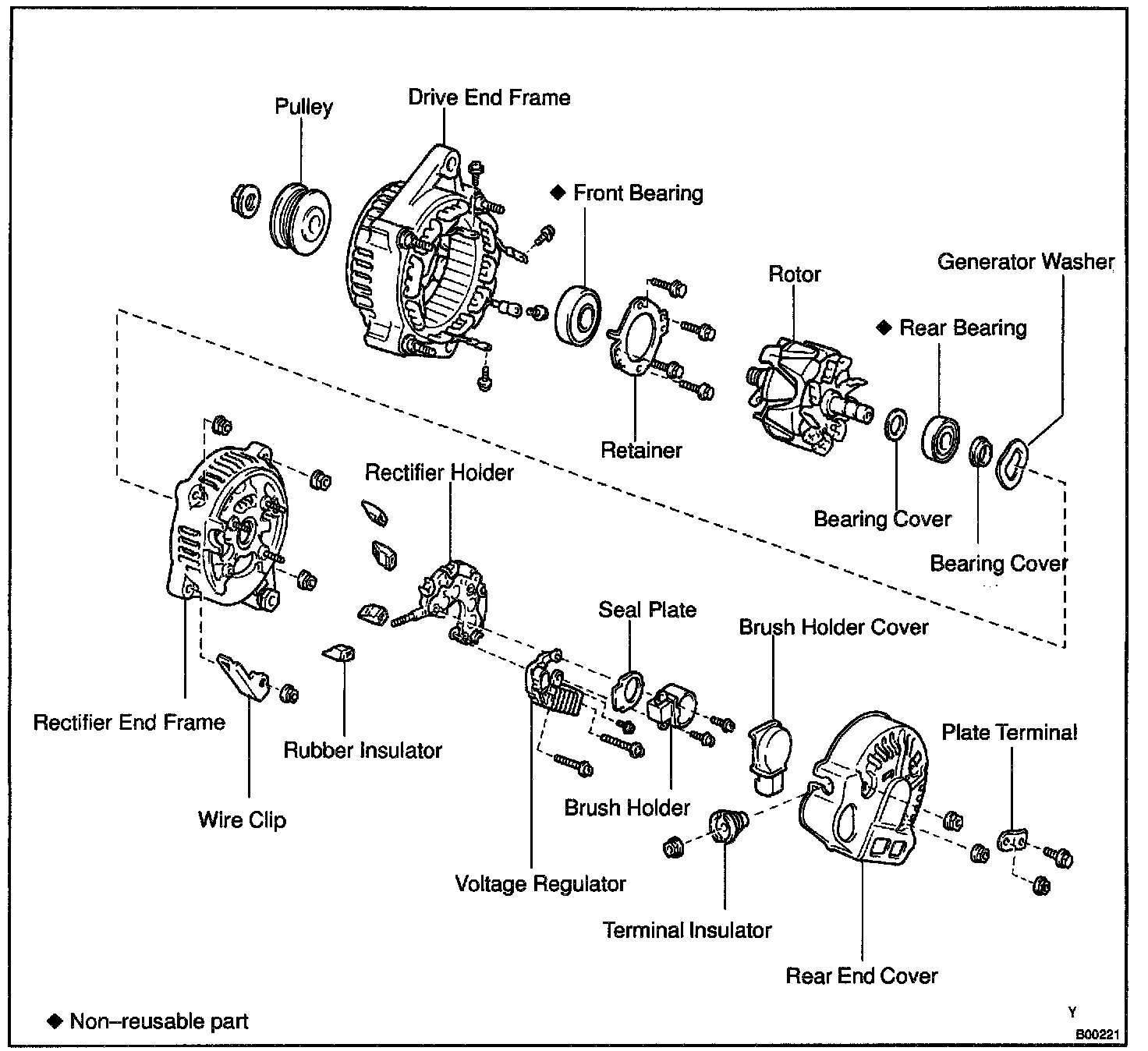

Alternator
Alternator

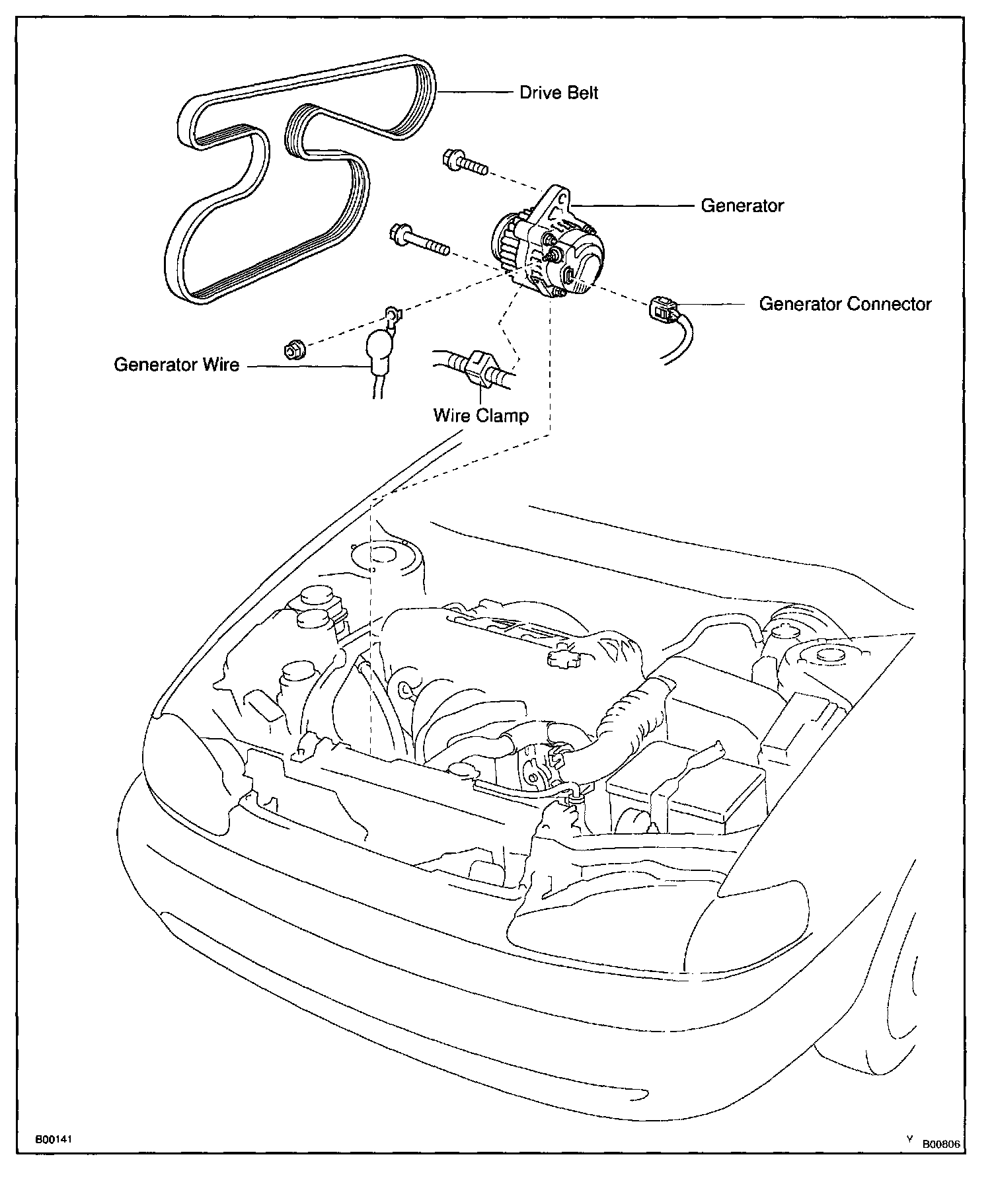

Generator (Part 2):
