System Specifications

AUTOMATIC TRANSAXLE (A131L) SERVICE DATA:




TORQUE SPECIFICATION:





AUTOMATIC TRANSAXLE (A131L)


AUTOMATIC TRANSAXLE (A245E) SERVICE DATA:

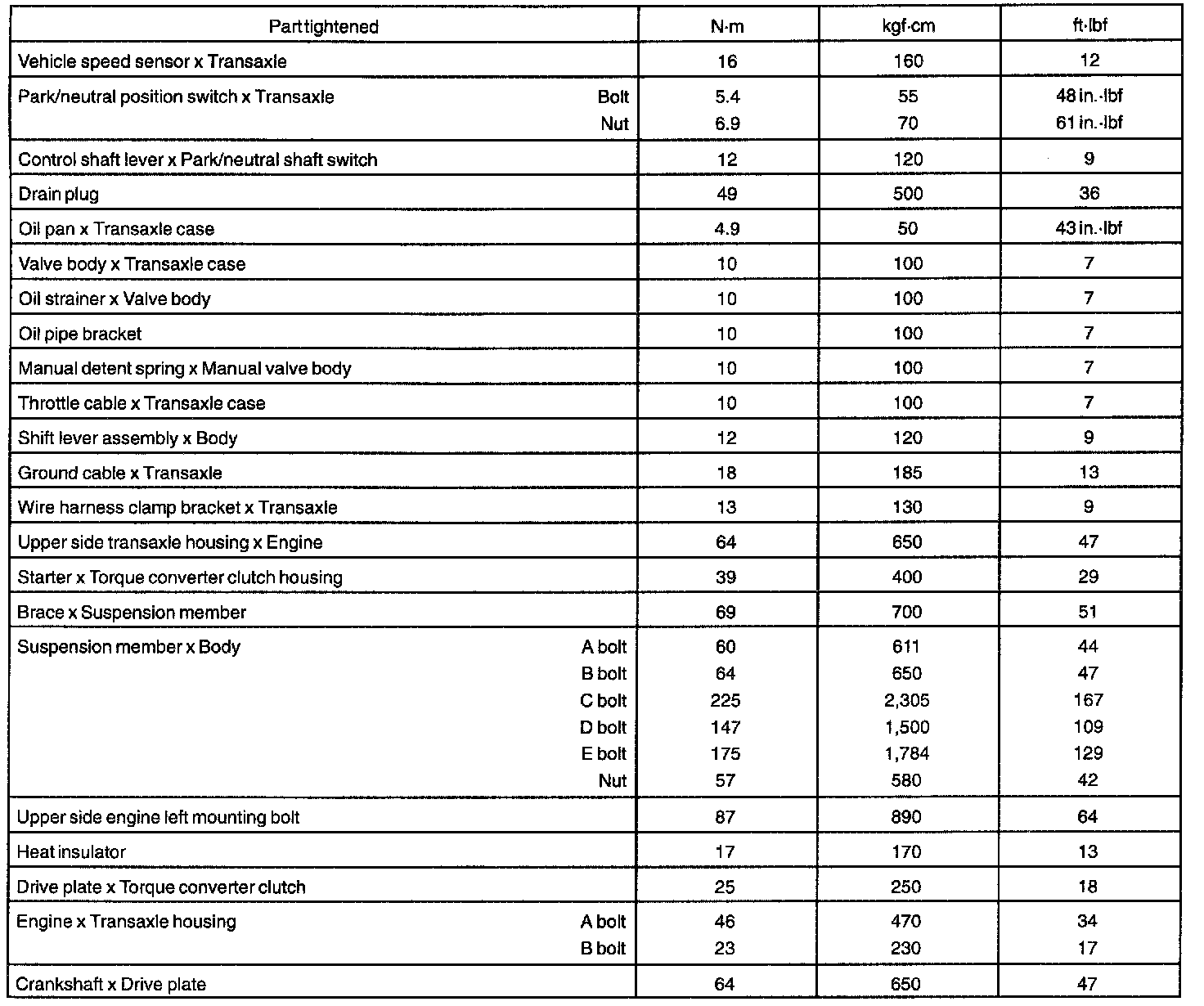

TORQUE SPECIFICATION:





AUTOMATIC TRANSAXLE (A245E)
