Operation CHARM
: Car repair manuals for everyone.
Home
>>
Toyota
>>
2002
>>
Echo L4-1.5L (1NZ-FE)
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Manual Transmission/Transaxle
Manual Transmission/Transaxle

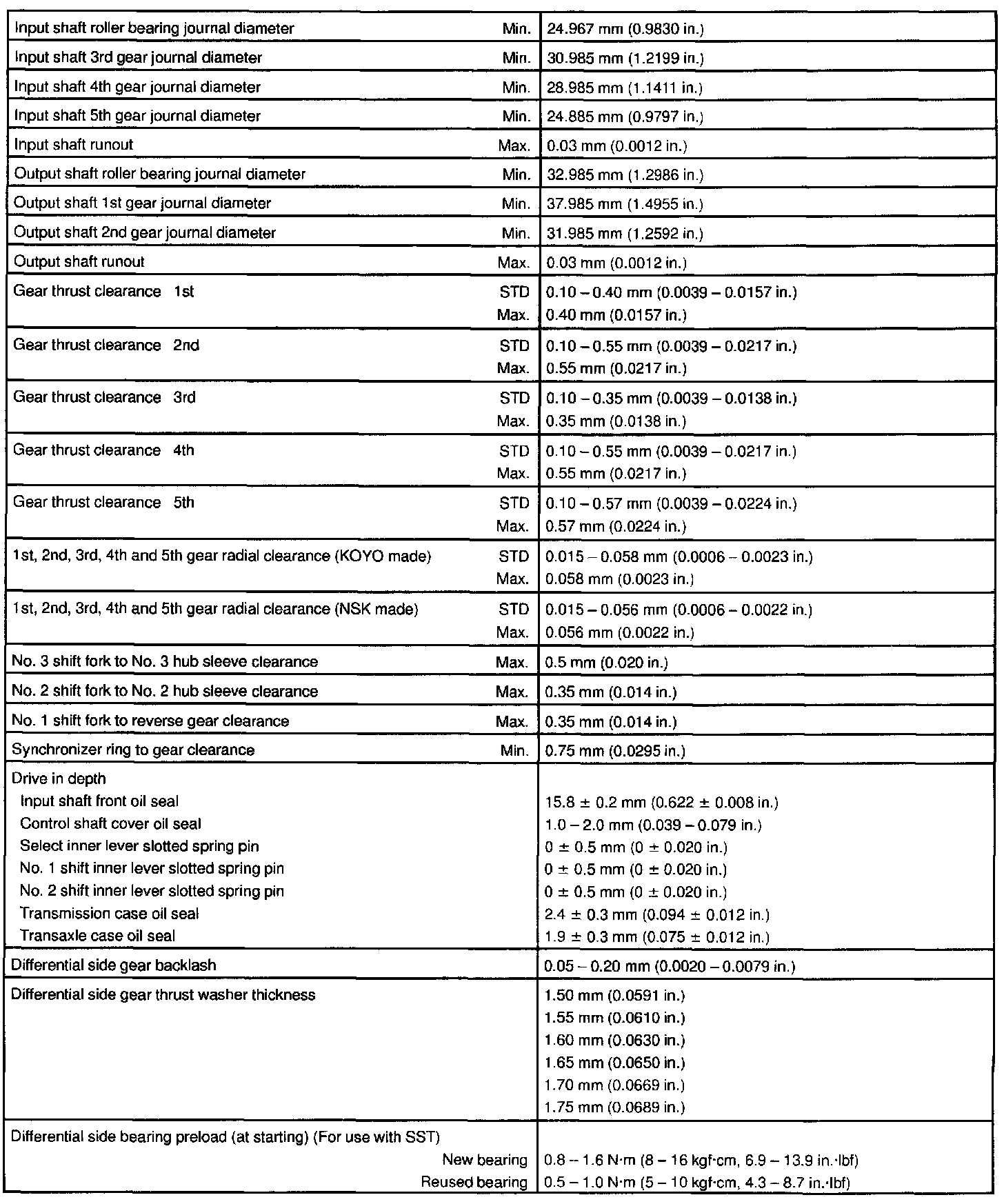

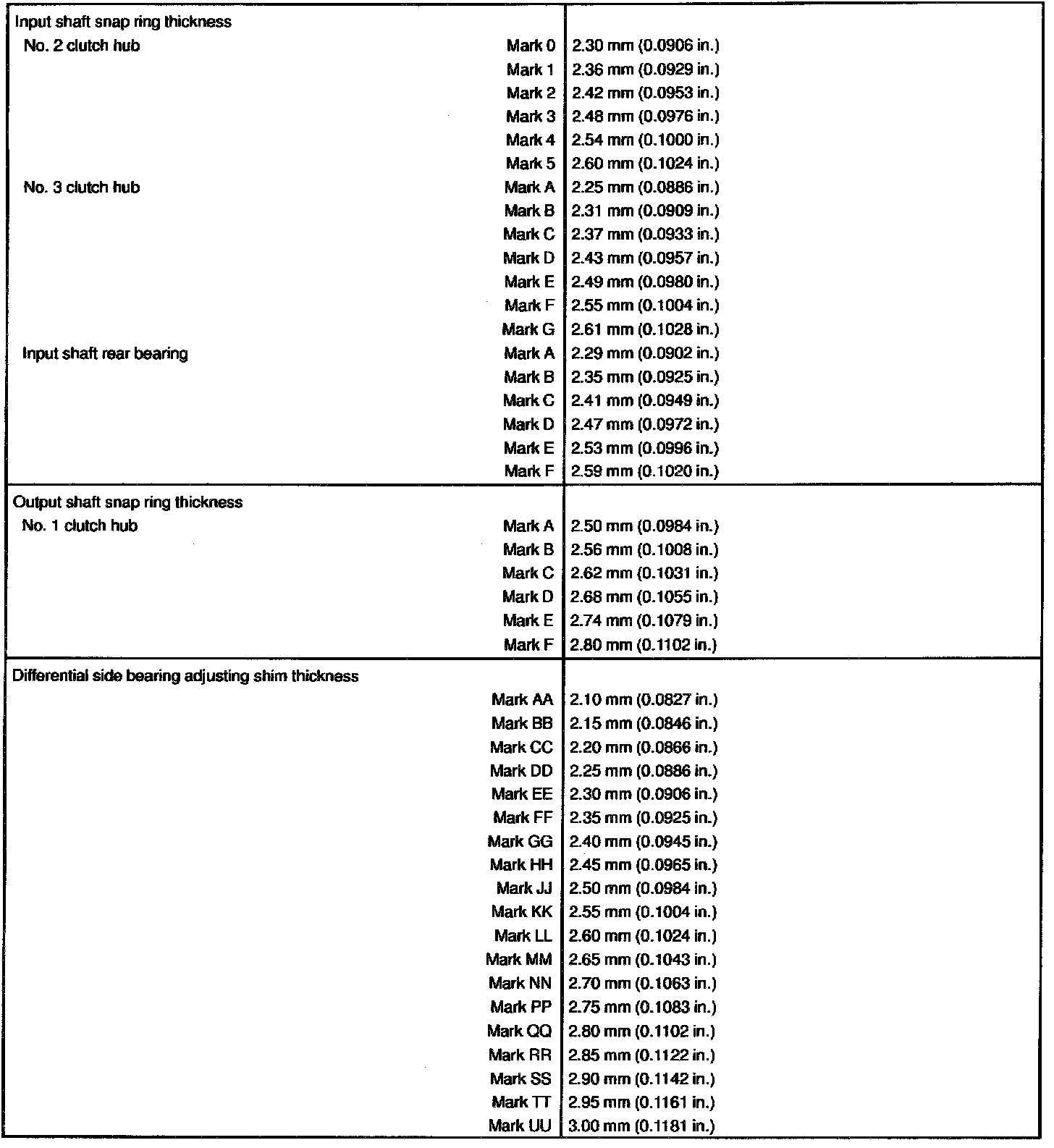

MANUAL TRANSAXLE SERVICE DATA:
MANUAL TRANSAXLE SERVICE DATA:

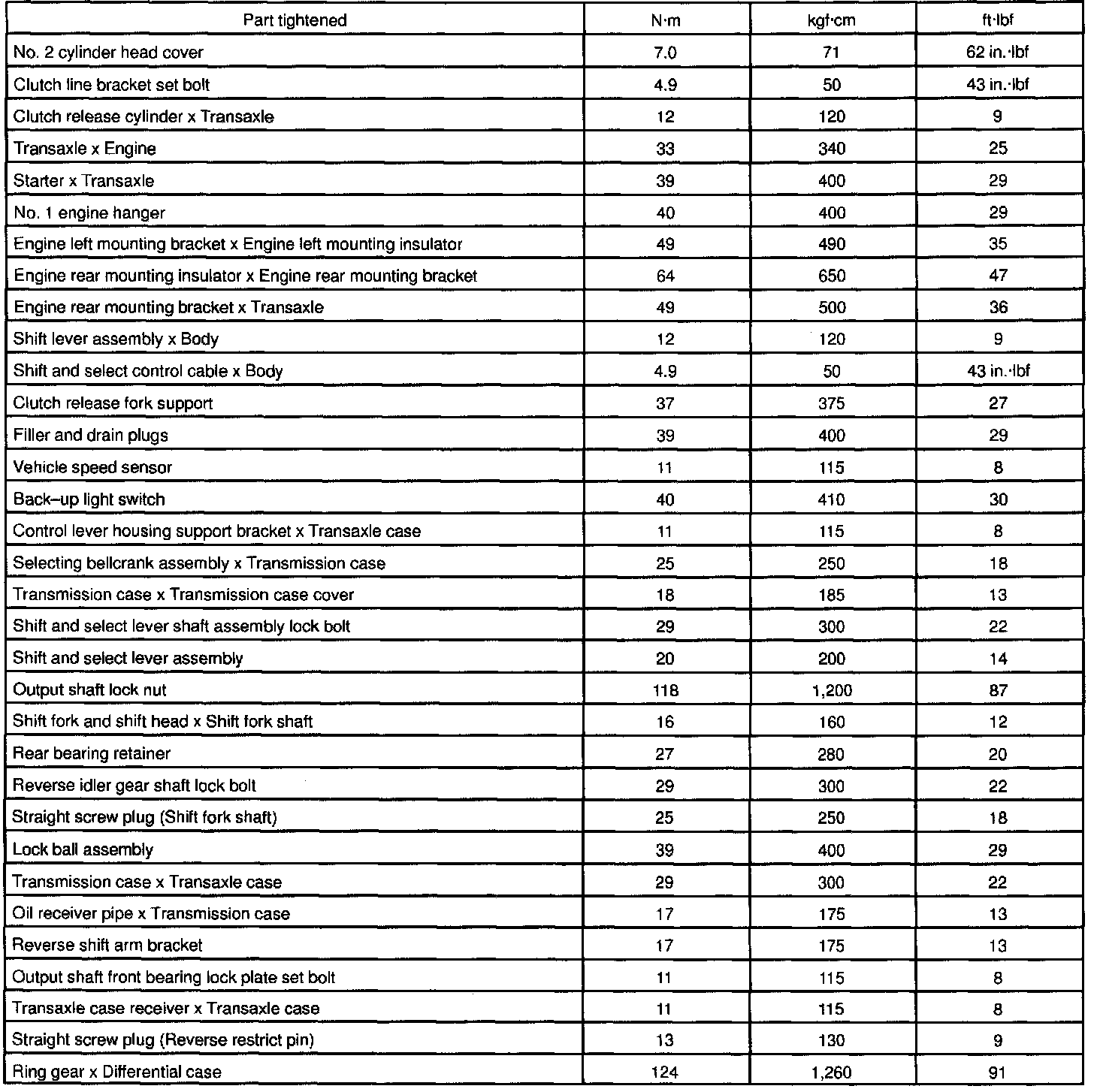

TORQUE SPECIFICATION:
