System Specifications

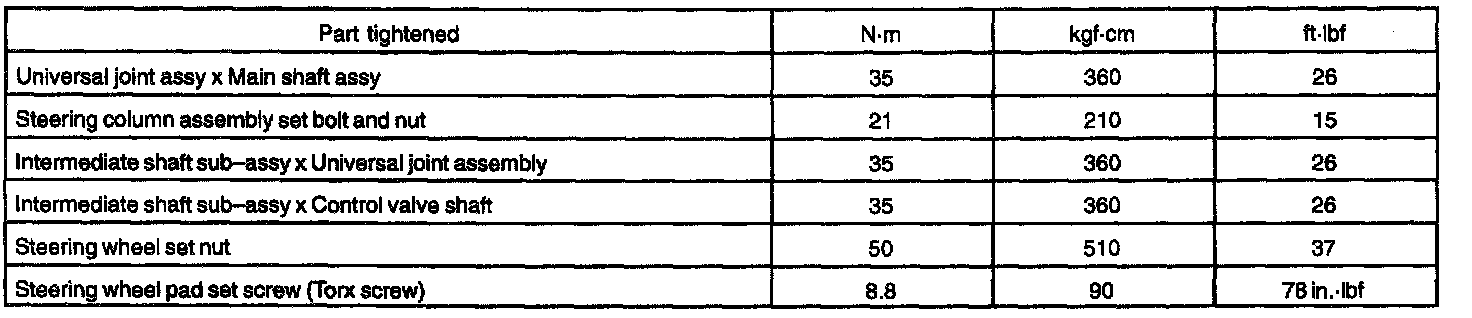

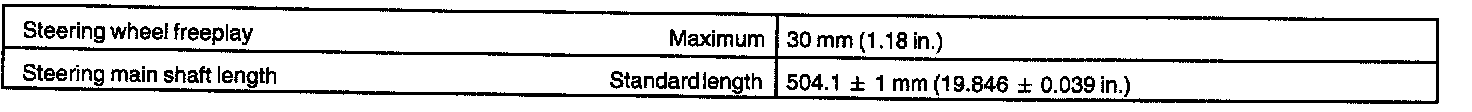

STEERING COLUMN SERVICE DATA:




TORQUE SPECIFICATION:

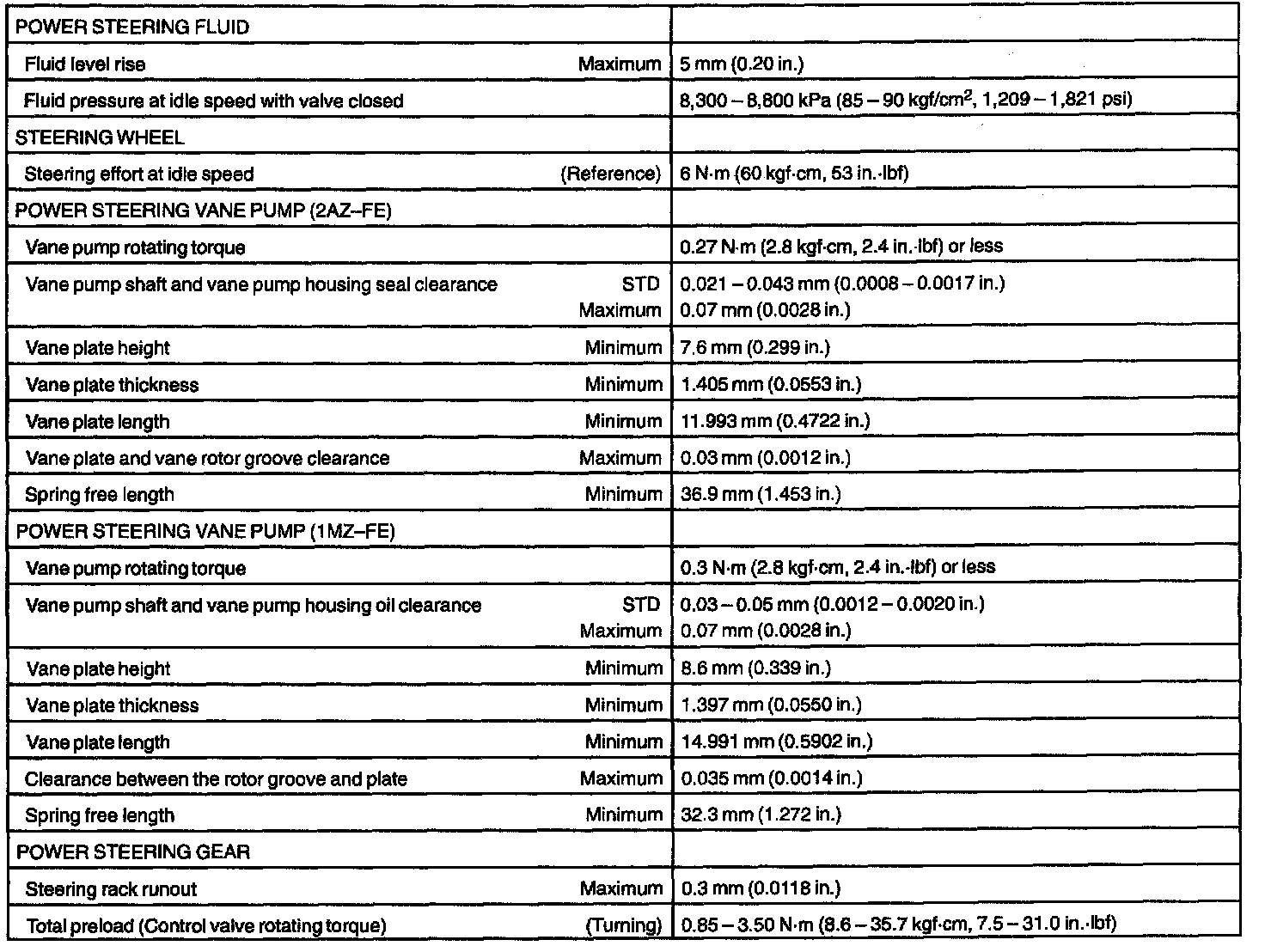

POWER STEERING SERVICE DATA:

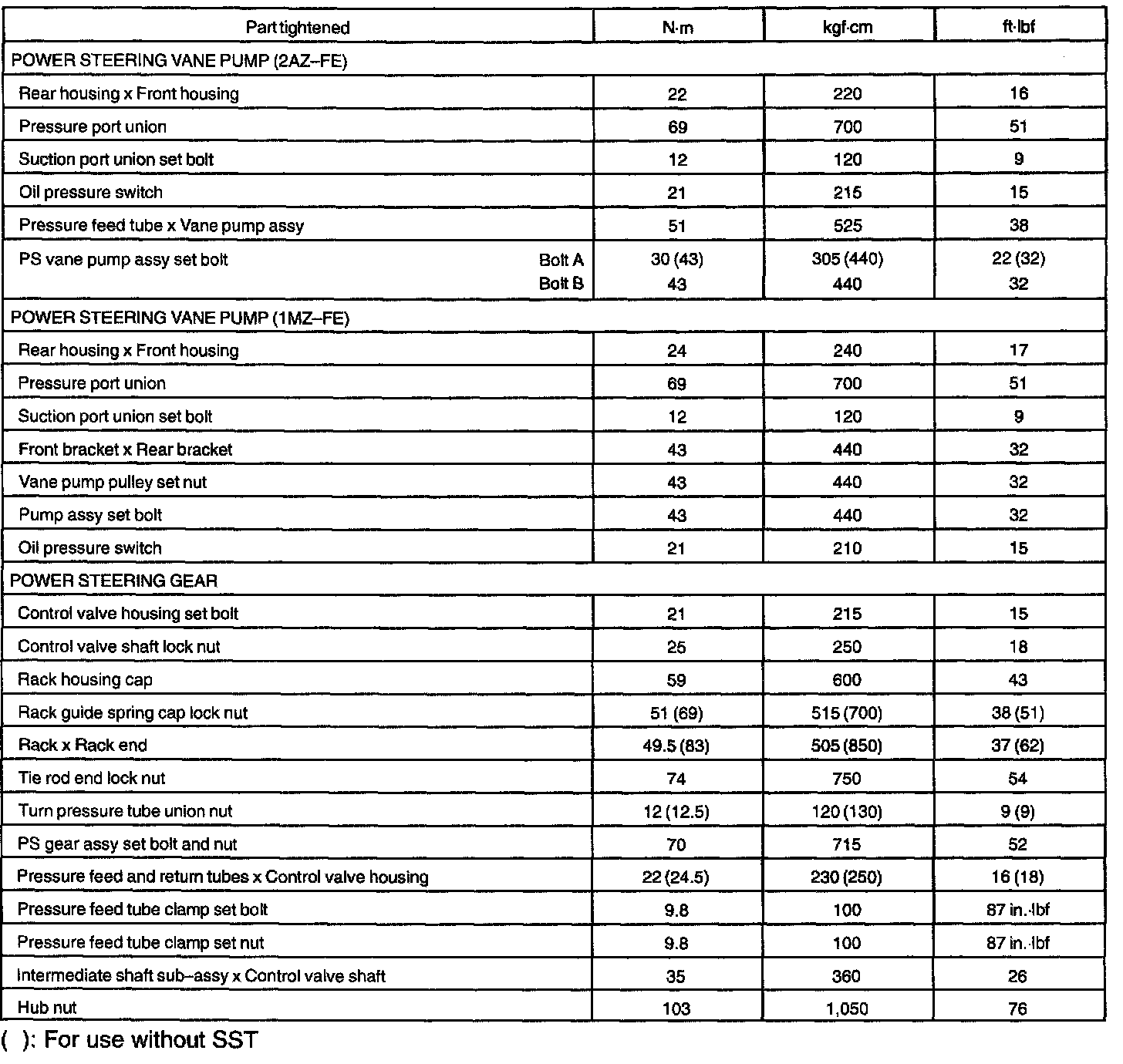

TORQUE SPECIFICATION:
