Home >> Toyota >> 2002 >> Landcruiser V8-4.7L (2UZ-FE) >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Engine >> System Diagram

System Diagram

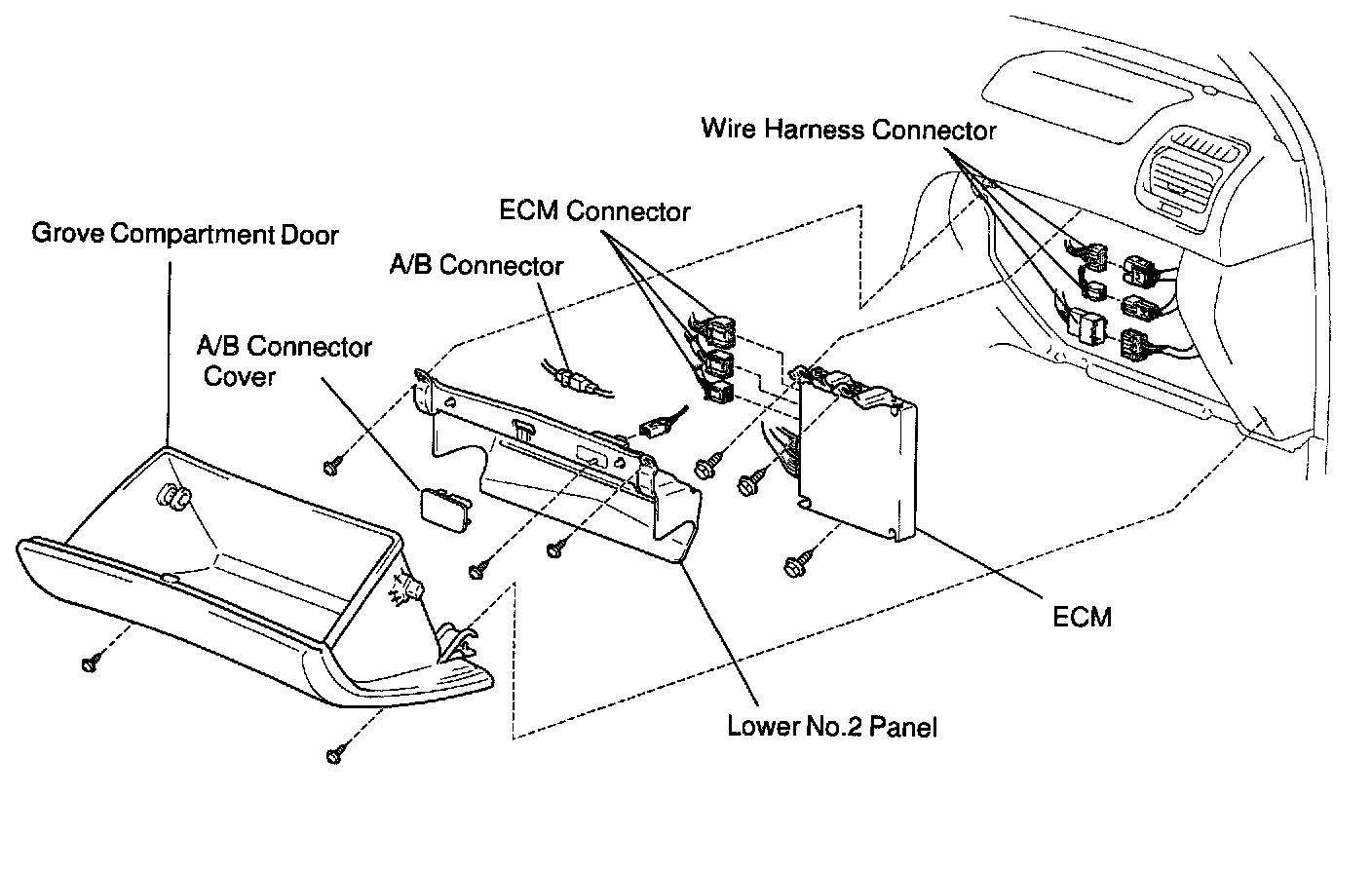

ECM (Passenger Compartment):

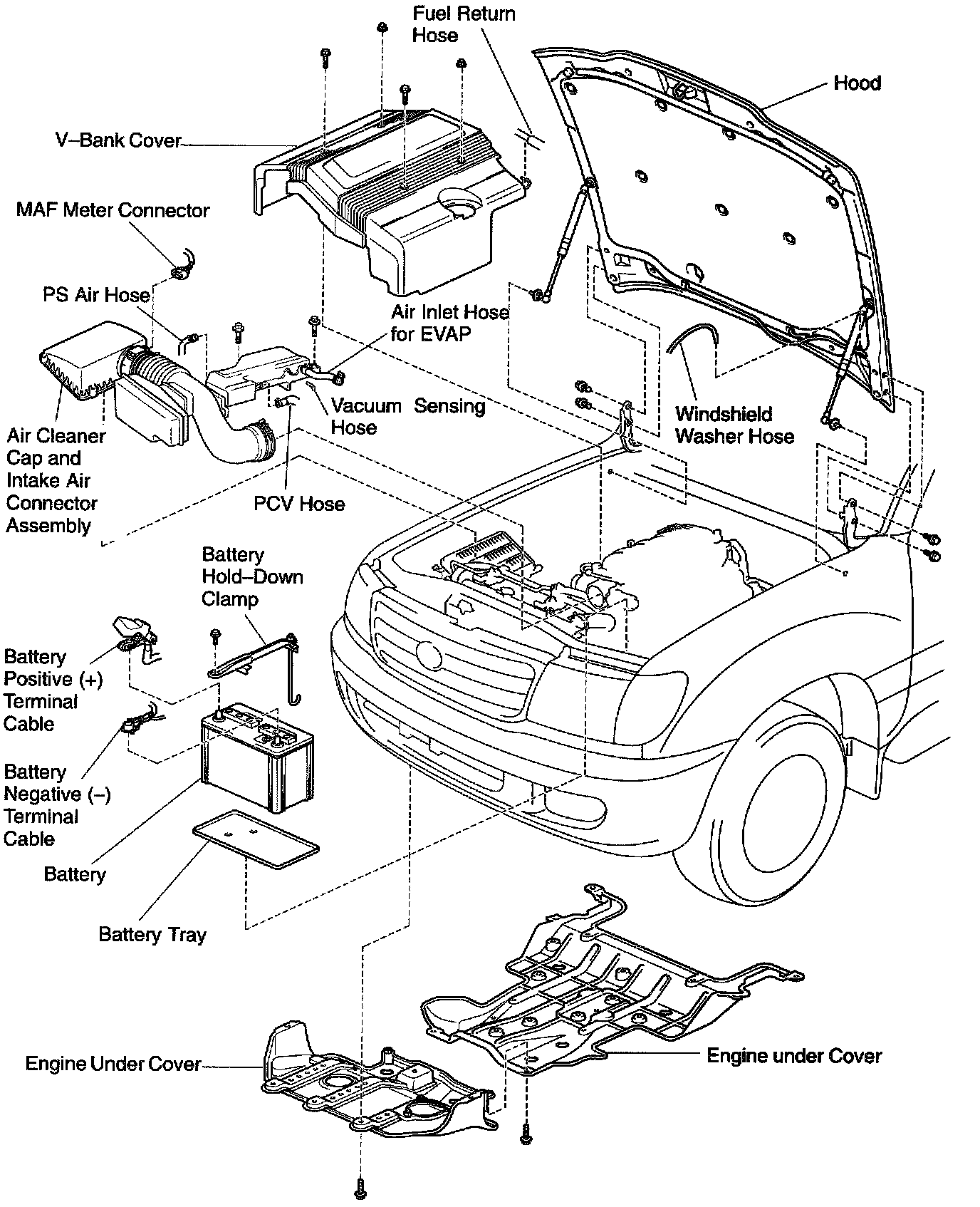

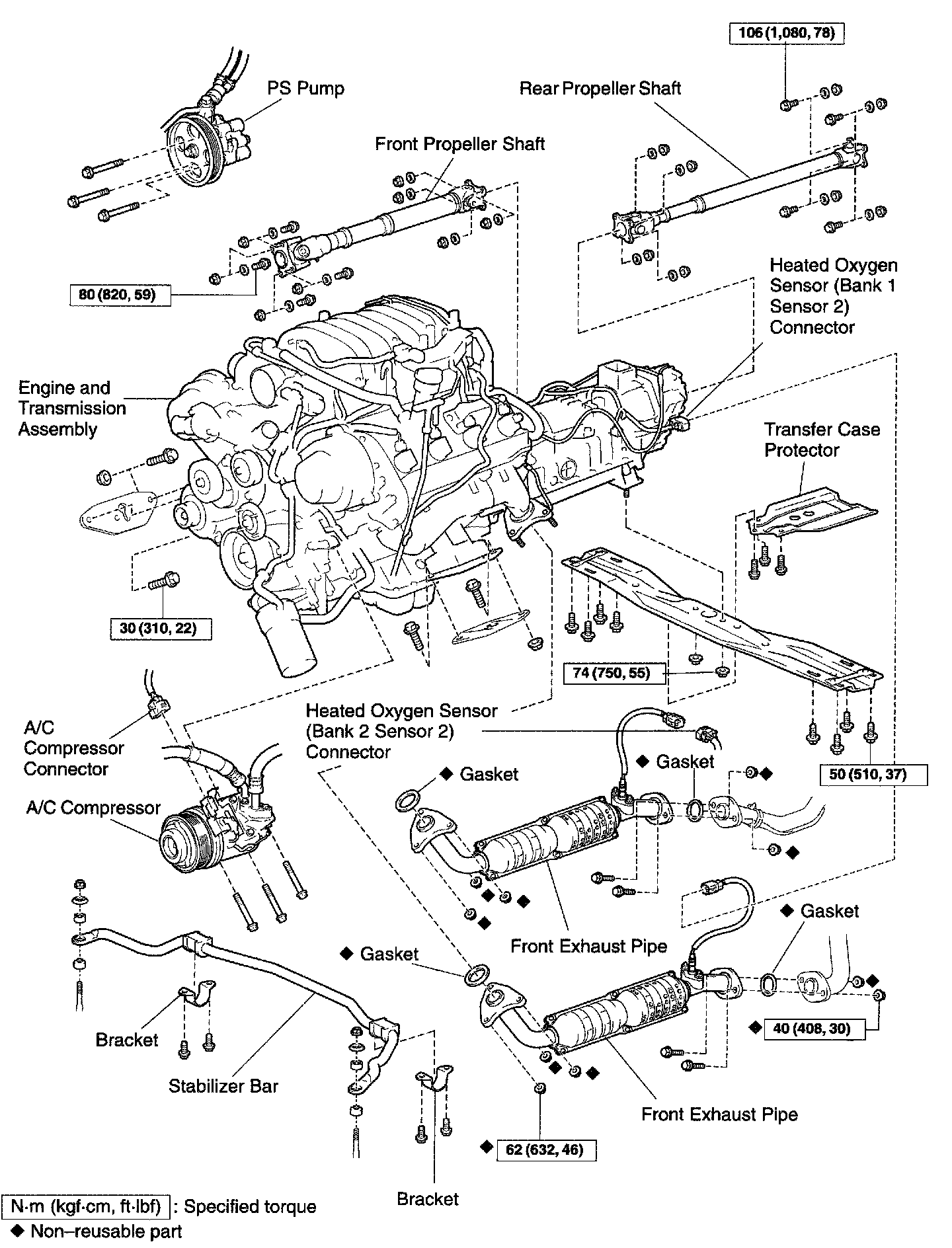

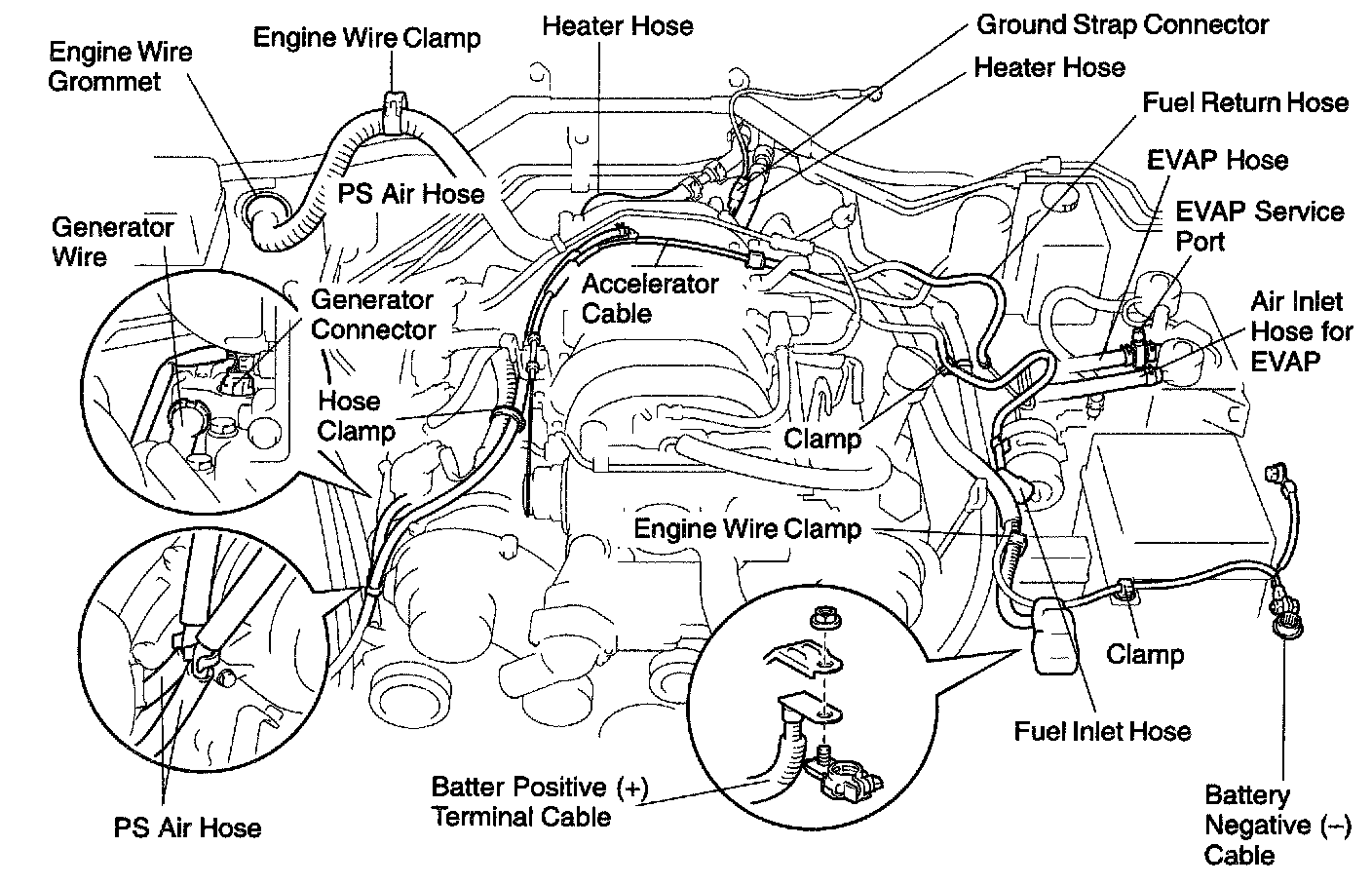

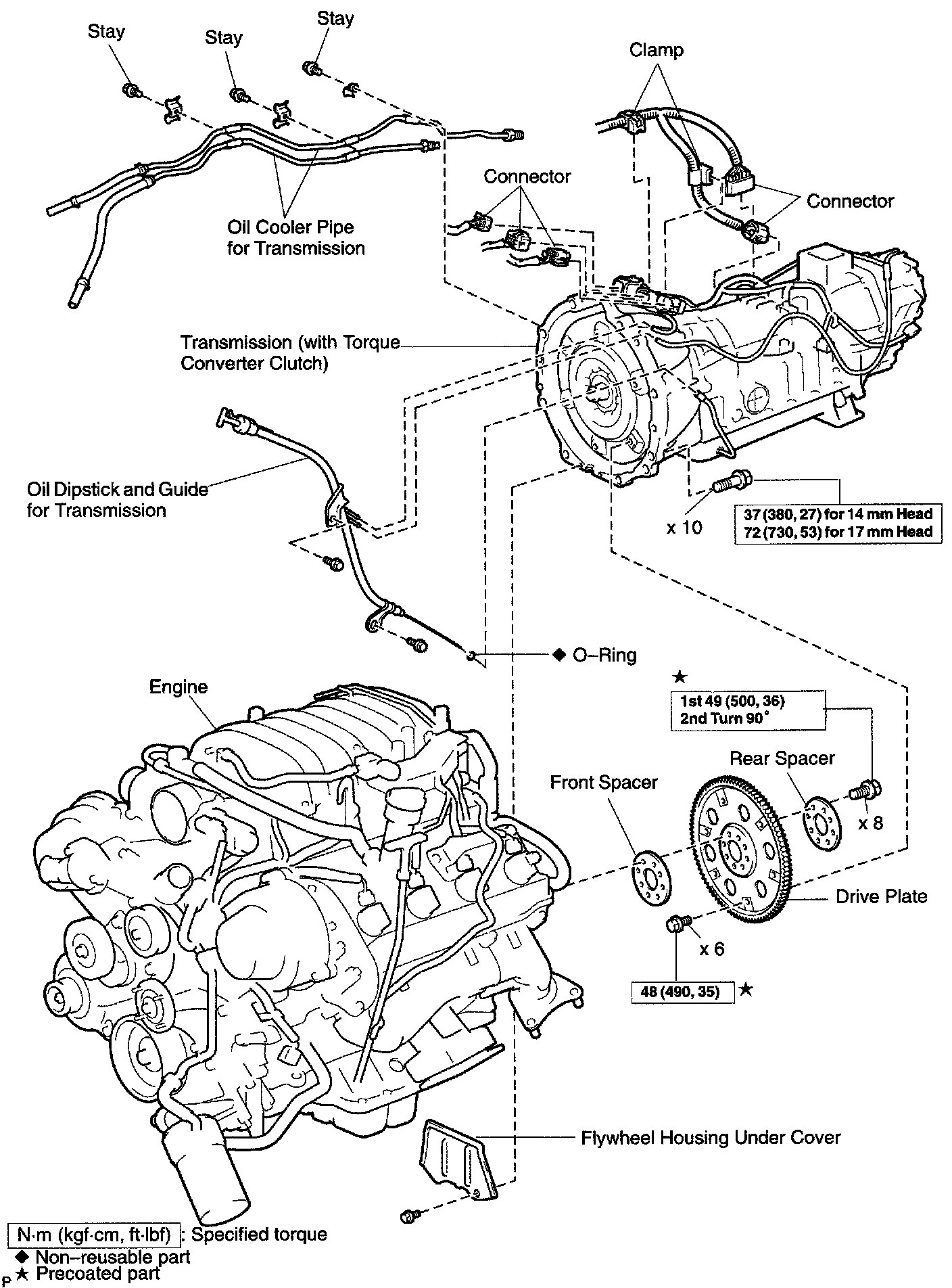

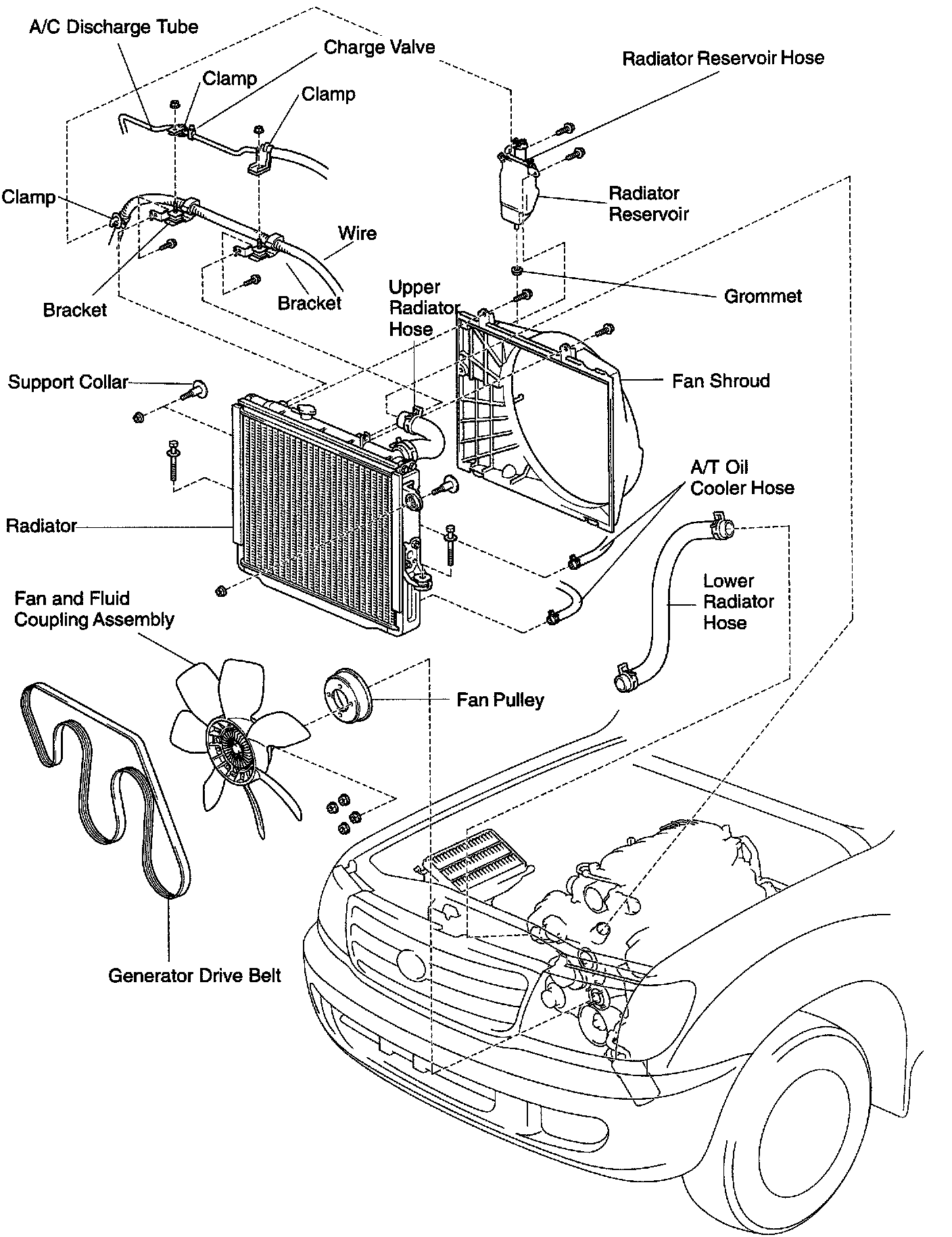

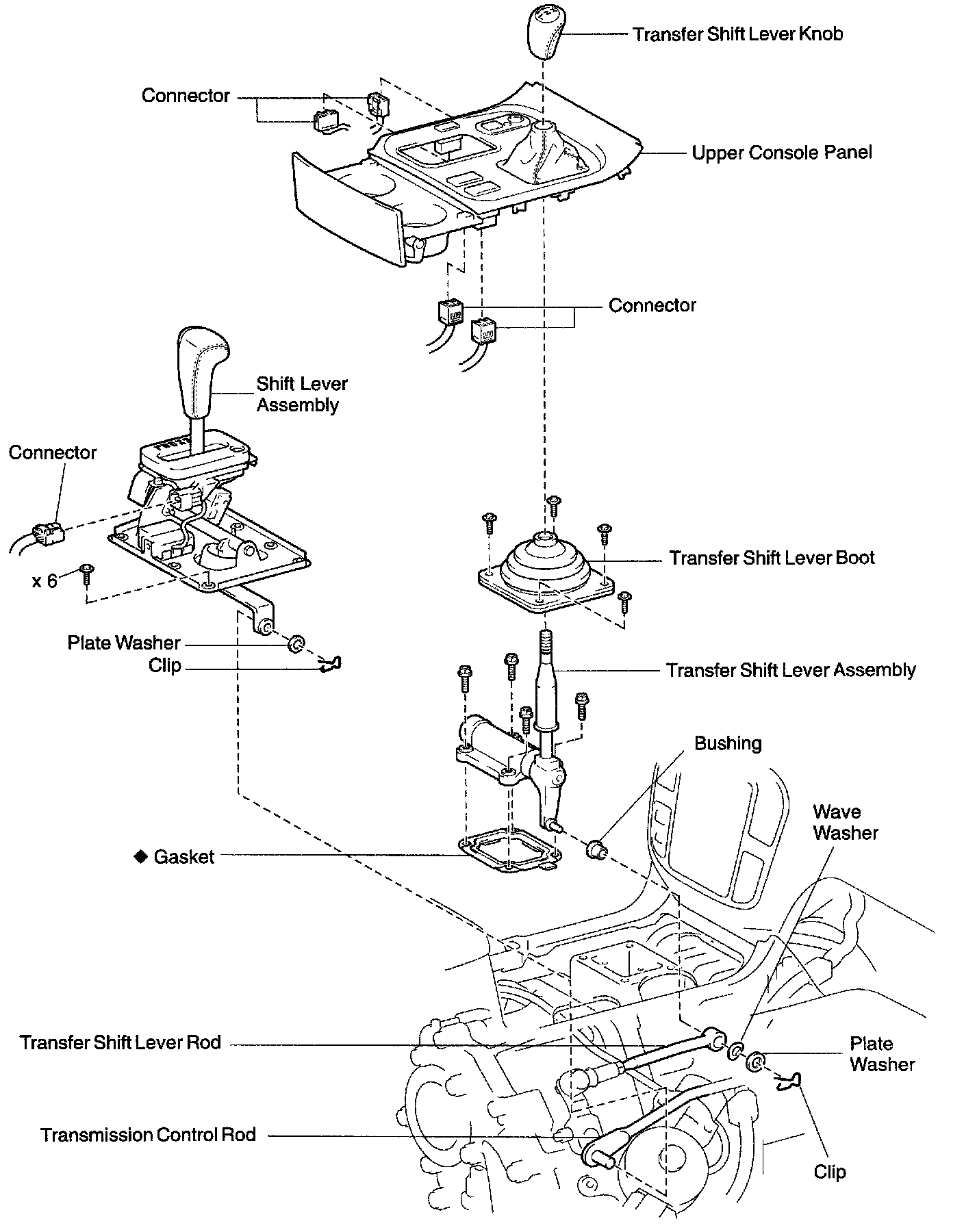

ENGINE UNIT REPLACEMENT W/ RELATED COMPONENTS
